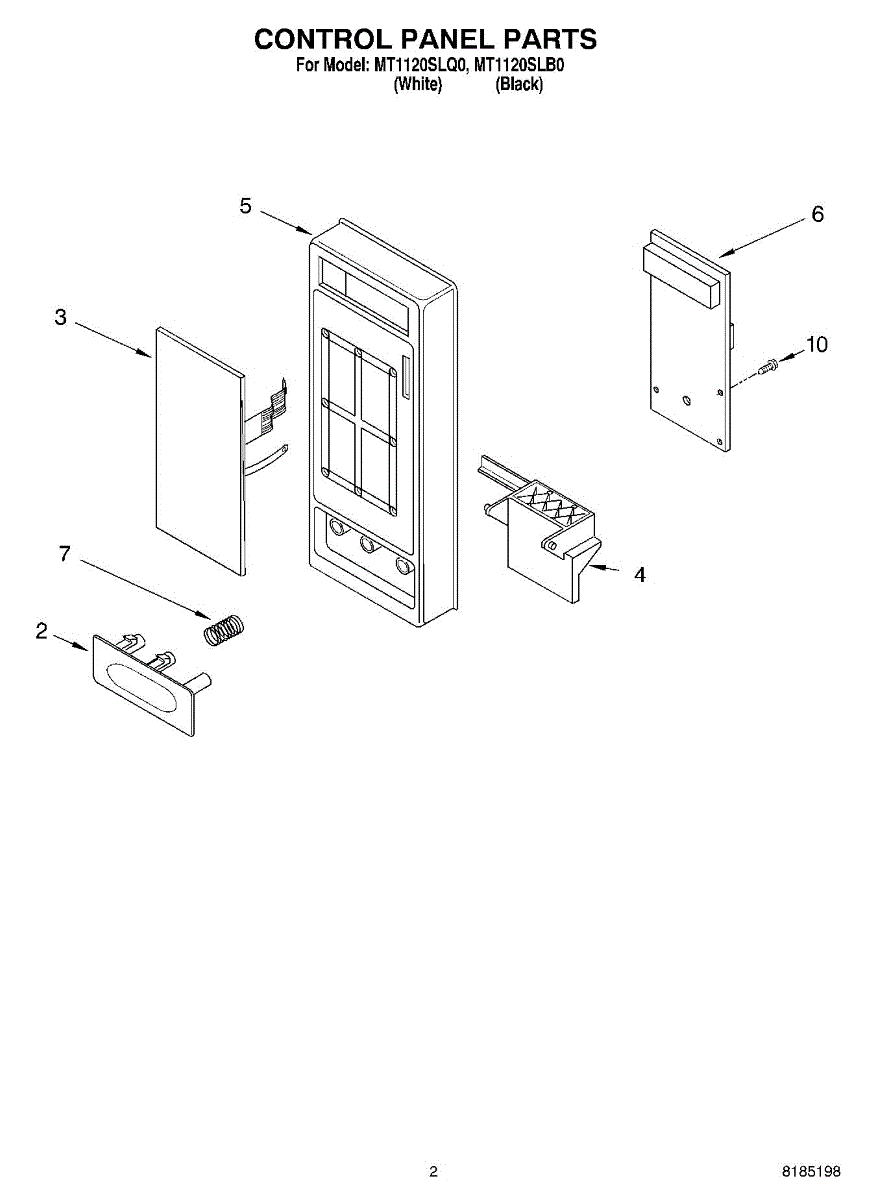

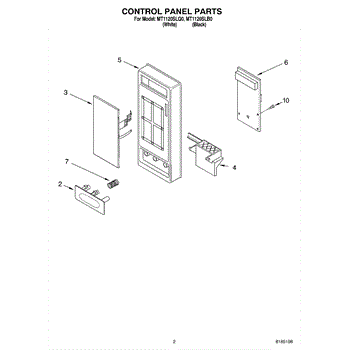

Parts for Whirlpool MT1120SLQ0: 02 - Control Panel Parts

This microcomputer is the oven's main electronic control that runs functions, timing, and user inputs so your appliance responds correctly. Replacing a failed control restores programmed cycles and front-panel operation. What it does:

• Manages cook cycles, timing, and user interface commands
• Processes touchpad/selector inputs and updates the display
• Controls power to relays and other circuitry for heating and motors
• Can prevent oven from starting or cause erratic behavior when faulty
• Common symptom link: unresponsive controls, blank/erratic display, or intermittent operation

• Disconnect power to the appliance before attempting service
• Handle the board carefully; avoid static discharge and contact with circuitry
• Follow factory service manual or wiring diagram for proper connector placement

Size: 4 x 8mm.
