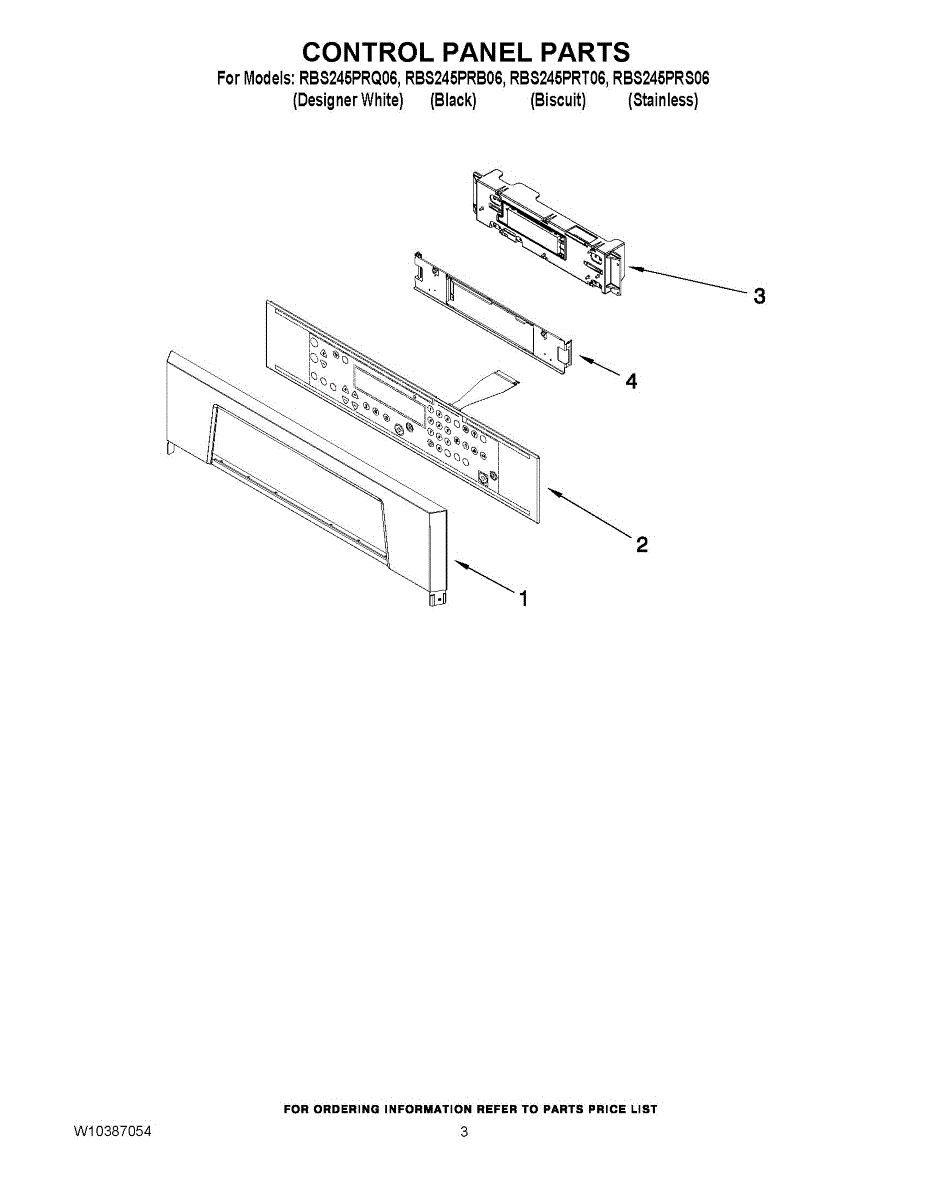

Parts for Whirlpool RBS245PRB06: 02 - Control Panel Parts

This control panel assembly replaces the front user interface for your appliance, restoring button access and the finished white appearance. It provides the housing and tactile surface where the touchpads or buttons are mounted for normal operation. What it does:

• Houses the user controls and provides the front surface for buttons or touchpads
• Restores visible cosmetic finish and button access when the original panel is cracked, faded, or damaged
• Enables the control interface to be properly aligned and secured to the appliance front
• Works with the existing electronic components and fasteners to allow normal control operation

• One control panel assembly (white) as shown

• Designed to replace the existing front control panel; may require removal of trim and disconnecting power before beginning
• Disconnect power at the breaker or unplug the appliance before servicing to avoid electrical shock
• Handle parts carefully to avoid scratching the finished surface and follow OEM disassembly steps for your model
• If the replacement requires transfer of switches, lenses, or small parts, organize removed pieces for correct reassembly

This control panel assembly replaces a worn or damaged front touch/control surface and restores proper user controls and display visibility on the range or oven. Designed to match original fit and appearance. What it does

• Houses the touch buttons, display window and associated front-facing controls used to set oven functions and temperatures.
• Replaces cracked, faded, or unresponsive control surfaces that can interfere with entering settings or reading the display.
• Restores a secure, finished face for the console and helps protect internal control electronics.
• Compatible with service-side mounting and connects to the internal control board via factory wiring harnesses.

• Handle carefully to avoid scratching the finished face; use soft gloves if available.
• Disconnect power at the breaker or unplug the appliance before beginning any service.
• Installation typically requires removal of the oven/range console trim and attachment screws; keep fasteners for reuse.

This membrane switch touch pad replaces a worn or unresponsive control surface to restore button responsiveness and user feedback. It's the flat, button interface used to send commands to the appliance's control board. What it does:

• Provides the tactile buttons or soft-touch keys used to select cycles and settings
• Sends electronic signals to the control board when pressed
• Replaces cracked, faded, sticky, or non-responsive touch areas
• Helps resolve intermittent or non-working control inputs linked to the front panel

• Disconnect power before servicing to avoid shock or damage to electronics
• Handle flex cable and contacts carefully; avoid creasing or contaminating the connector
• Verify proper seating and alignment on the console before testing power

This membrane switch touch pad replaces a worn or unresponsive control surface to restore button responsiveness and user feedback. It's the flat, button interface used to send commands to the appliance's control board. What it does:

• Provides the tactile buttons or soft-touch keys used to select cycles and settings
• Sends electronic signals to the control board when pressed
• Replaces cracked, faded, sticky, or non-responsive touch areas
• Helps resolve intermittent or non-working control inputs linked to the front panel

• Disconnect power before servicing to avoid shock or damage to electronics
• Handle flex cable and contacts carefully; avoid creasing or contaminating the connector
• Verify proper seating and alignment on the console before testing power
