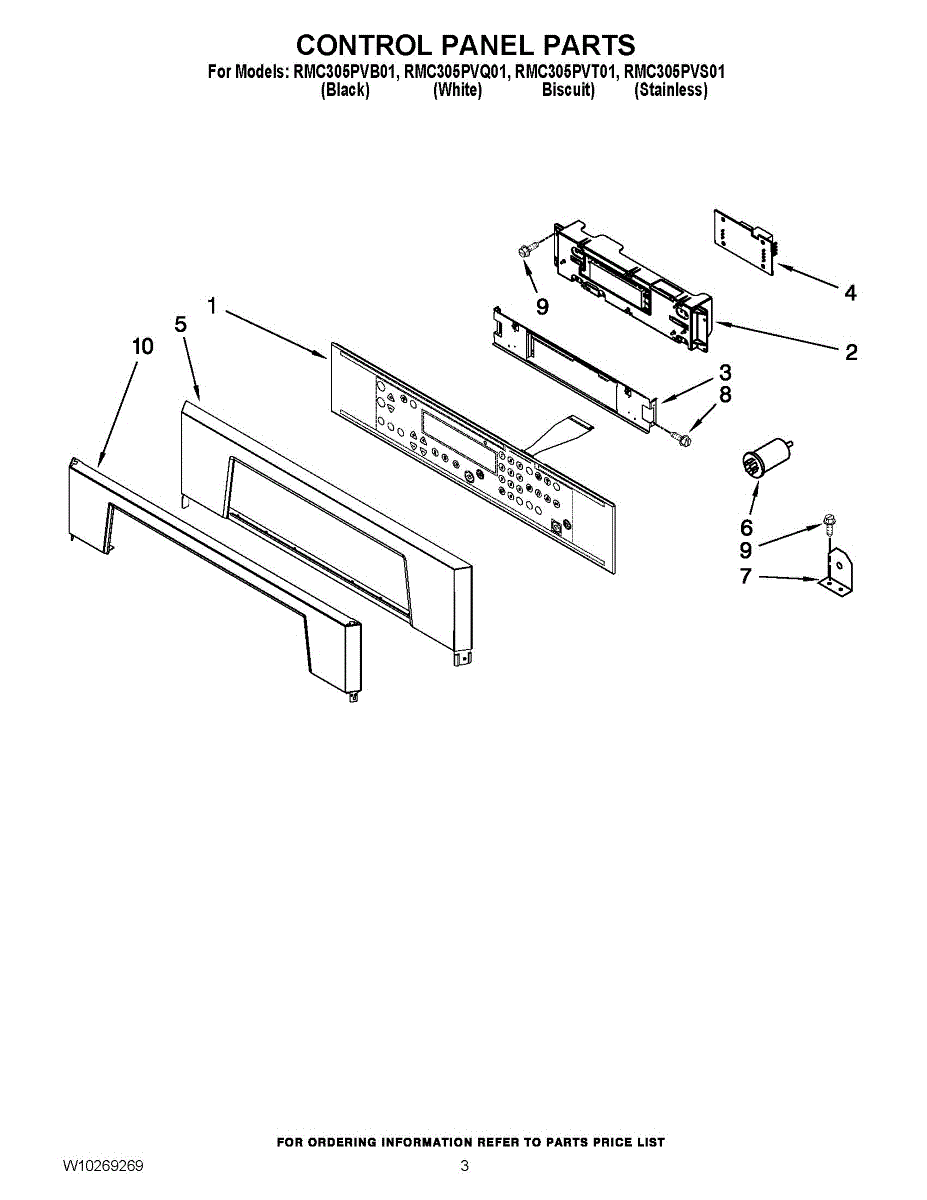

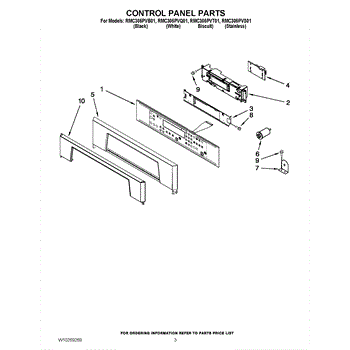

Parts for Whirlpool RMC305PVQ01: 02 - Control Panel Parts

Replace your oven's control panel touch pad if buttons are unresponsive, the membrane is cracked, or the overlay is worn or peeling. Restores control.

This latch sister board controls the oven's motorized door lock used for self-clean and safety interlock functions. Replacing a failed board restores reliable lock/unlock operation so your oven can start cycles and complete cleaning as designed.

• Powers the door-latch motor when commanded by the main control
• Engages or releases the door lock during self-clean cycles
• What's included: One latch sister board.

Install notes:

• Disconnect power at the breaker before servicing
• Use ESD protection and handle the board by the edges
• Access is typically behind the control/upper panel; photograph wiring and transfer connectors one at a time
• After reassembly, verify latch operation before running a full self-clean

If your oven display is unreadable or buttons don't respond, this control panel assembly restores your console. Moderate DIY repair with careful disassembly.

Black control panel assembly that forms the front interface surface for your oven. Replace if cracked, broken, or mounting tabs are damaged or missing.

Screw for control panel.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Replacement trim panel for your oven. Installs along the front control area to provide a finished appearance. Order a new panel if yours is cracked or damaged.

This is a 30-inch stainless-steel trim panel that restores the front appearance and protective finish of the appliance. It gives a clean, finished look while covering damaged or missing factory trim. What it does

• Replaces damaged, dented, scratched or corroded front cladding to restore appearance
• Covers gaps and hides underlying cabinet or bracket edges for a finished look
• Protects the appliance front from everyday bumps and spills
• Matches stainless finish used on the original factory trim

• Removal of existing trim may require removing adjacent screws, clips or handles; retain fasteners for reinstallation
• Handle with care to avoid scratching the stainless finish; use gloves and a soft surface during install
• Align panel to existing mounting points before tightening fasteners to prevent warping or gaps
