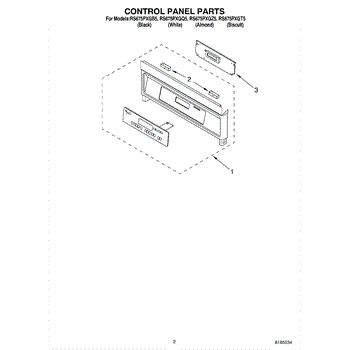

Parts for Whirlpool RS675PXGQ5: 02 - Control Panel Parts

This control panel is the user interface for your appliance, replacing a worn or faulty keypad and display assembly so you can restore reliable control of oven/cooktop functions. It provides the buttons and display that let you set temperatures, timers and modes. What it does:

• Replaces the front user interface that registers button presses and shows settings/status
• Fixes symptoms like unresponsive buttons, missing or flickering display segments, or loss of control functions
• Restores the ability to select cook/heat modes, timers and clock settings through the original front controls
• Works as the electronic interface between the user and the appliance control system

• One control panel user interface assembly

• Disconnect power to the appliance before attempting any service to avoid shock hazard
• Handle display lens and keypad gently to avoid scratches or damage during installation
• Require removal of adjacent trim, screws or the cooktop to access mounting points—refer to the service manual

Screw for control panel.

Screw for control panel.
