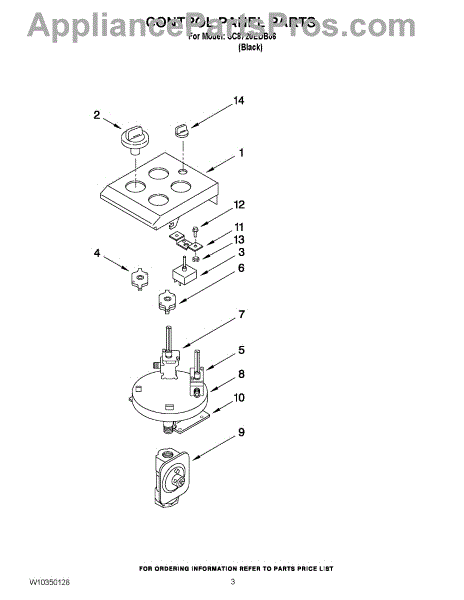

Parts for Whirlpool SC8720EDB06: 03 - Control Panel Parts

This surface-burner igniter switch mounts on the gas valve stem and signals the spark module when you turn the knob. Replacing a worn switch restores reliable top-burner ignition and helps eliminate intermittent or continuous clicking.

• Mounts on the surface burner gas valve and closes the circuit to the spark module as the knob is turned
• Triggers the igniter electrodes to spark so the burner lights
• Helps address: no spark when turning the knob, intermittent or delayed ignition, or continuous clicking/sparking
• Typical failure signs include needing to jiggle the knob to spark or sparking that won't stop after the flame is lit

• Disconnect electrical power; shut off gas supply if working near gas fittings; allow the appliance to cool
• Pull off the burner knob and remove the panel/top as needed to access the valve switch
• Move wires to the new switch one at a time to maintain correct connections; ensure the actuator aligns on the valve stem
• Reassemble, restore power, and test burner ignition

This gas burner valve controls delivery of natural gas to a single surface burner, restoring safe, consistent burner operation. It replaces a worn or leaking valve to help burners ignite and maintain an even flame. What it does:

• Regulates gas flow to one surface burner so the flame can be adjusted from low to high
• Helps correct symptoms such as weak or no flame, burners that won't light, or intermittent gas flow
• Works with the range's valve manifold and burner orifices to maintain proper combustion behavior
• Replaces a damaged, corroded, or leaking valve that can cause uneven heating or gas odor

• One gas burner valve

• Turn off gas supply and electrical power before starting any repair; test for leaks after installation
• Use appropriate tools and thread sealant if required by OEM guidelines; do not overtighten fittings
• Verify correct valve orientation and secure mounting to prevent gas line strain

This top burner valve switch mounts to a surface burner gas valve and closes the ignition circuit when you turn the knob to Lite. Replacing a worn switch restores dependable sparking and stops intermittent or nonstop clicking at the burners.

• Mounts on the surface burner valve and closes the ignition circuit at the Lite position
• Signals the spark module to fire the igniters so the burner lights
• Helps ensure quick, consistent burner ignition
• Common symptoms: no spark at a burner, intermittent ignition, or continuous clicking with knobs in Off

• Disconnect power and shut off the gas supply before servicing
• Pull off the burner knob and remove the control/manifold panel to access the valve switch
• Transfer wires one at a time and align the switch correctly on the valve stem; avoid overtightening
• Reassemble, restore power, test for spark with gas off, then relight and check for leaks

This replacement screw fastens appliance panels and components to restore secure mounting and stop rattling or loose parts. A basic, direct-fit fastener for routine repairs and reassembly. What it does:

• Secures panels, brackets, trim, or internal components to prevent movement and vibration
• Replaces missing or stripped screws that cause loose parts or rattling noises
• Restores reliable fastener retention for safe, stable operation
• Works wherever the OEM-specified screw is required for proper assembly

• Use the matching driver/socket and turn slowly to avoid stripping the head or threads
• Tighten until snug; do not over-torque to prevent damage to threads or housings
• Power off and unplug the appliance before attempting any repair
• If other fasteners or damaged mating threads are found, inspect surrounding components and replace as needed

This replacement fan control knob restores smooth, reliable operation of your appliance's fan/blower. It replaces a cracked or missing knob so you can turn the fan on and adjust settings with a factory look. What it does:

• Attaches to the fan/blower control switch so you can select on/off and speed settings
• Restores control when the original knob is cracked, stripped, or missing
• Helps resolve symptoms like the knob slipping, spinning freely, or not turning the shaft
• Black finish matches the original appearance

• 1 black fan control knob

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the control shaft
• Align the new knob with the shaft orientation and press it on until fully seated—do not force
• If the knob won't seat, inspect the control shaft for damage or debris
