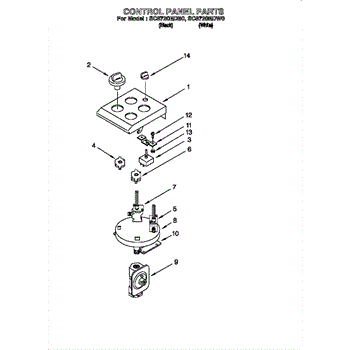

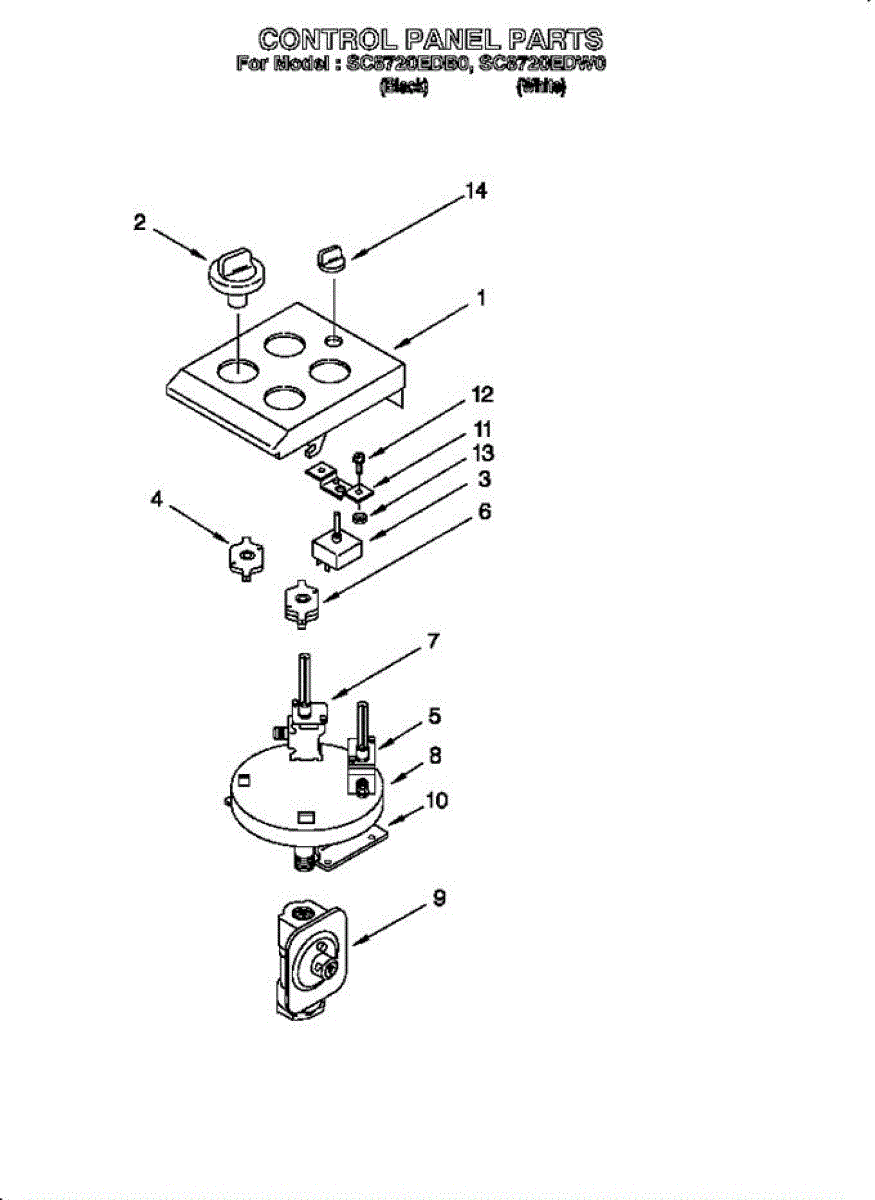

Parts for Whirlpool SC8720EDW0: Control Panel Parts

Black surface burner control knob for gas ranges and cooktops. It fits onto the valve stem so you can turn the burner on/off and fine-tune flame level, restoring proper control and appearance when the original is worn or missing.

• Attaches to the surface burner valve shaft to control on/off and flame level
• Replaces knobs that are cracked, stripped, loose, hard to turn, or missing
• Restores clear pointer alignment for accurate settings
• Helps when the knob spins without engaging the valve

• Turn all controls OFF, allow the cooktop to cool, and disconnect power to disable igniters
• Pull the old knob straight off the stem; align the new knob opening with the stem and press straight on until fully seated
• Verify the pointer aligns with the OFF marking before use
• Do not force the knob or use tools—forcing can damage the valve stem

This surface-burner igniter switch mounts on the gas valve stem and signals the spark module when you turn the knob. Replacing a worn switch restores reliable top-burner ignition and helps eliminate intermittent or continuous clicking.

• Mounts on the surface burner gas valve and closes the circuit to the spark module as the knob is turned
• Triggers the igniter electrodes to spark so the burner lights
• Helps address: no spark when turning the knob, intermittent or delayed ignition, or continuous clicking/sparking
• Typical failure signs include needing to jiggle the knob to spark or sparking that won't stop after the flame is lit

• Disconnect electrical power; shut off gas supply if working near gas fittings; allow the appliance to cool
• Pull off the burner knob and remove the panel/top as needed to access the valve switch
• Move wires to the new switch one at a time to maintain correct connections; ensure the actuator aligns on the valve stem
• Reassemble, restore power, and test burner ignition

This gas burner valve controls delivery of natural gas to a single surface burner, restoring safe, consistent burner operation. It replaces a worn or leaking valve to help burners ignite and maintain an even flame. What it does:

• Regulates gas flow to one surface burner so the flame can be adjusted from low to high
• Helps correct symptoms such as weak or no flame, burners that won't light, or intermittent gas flow
• Works with the range's valve manifold and burner orifices to maintain proper combustion behavior
• Replaces a damaged, corroded, or leaking valve that can cause uneven heating or gas odor

• One gas burner valve

• Turn off gas supply and electrical power before starting any repair; test for leaks after installation
• Use appropriate tools and thread sealant if required by OEM guidelines; do not overtighten fittings
• Verify correct valve orientation and secure mounting to prevent gas line strain

This top burner valve switch mounts to a surface burner gas valve and closes the ignition circuit when you turn the knob to Lite. Replacing a worn switch restores dependable sparking and stops intermittent or nonstop clicking at the burners.

• Mounts on the surface burner valve and closes the ignition circuit at the Lite position
• Signals the spark module to fire the igniters so the burner lights
• Helps ensure quick, consistent burner ignition
• Common symptoms: no spark at a burner, intermittent ignition, or continuous clicking with knobs in Off

• Disconnect power and shut off the gas supply before servicing
• Pull off the burner knob and remove the control/manifold panel to access the valve switch
• Transfer wires one at a time and align the switch correctly on the valve stem; avoid overtightening
• Reassemble, restore power, test for spark with gas off, then relight and check for leaks

Left-side gas valve that controls gas flow to the burner assembly, restoring reliable ignition and stable flame control when a faulty valve causes burners to fail to light, sputter, or produce an inconsistent flame. What it does:

• Regulates gas flow to the left burner assembly for proper ignition and steady flame control.
• Replaces a stuck, damaged, or failed valve often associated with burners that won't light, have weak flames, or flame fluctuation.
• Acts as the control point between the appliance gas supply and the burner; proper operation is required for safe ignition.
• Use the appliance's parts diagram to determine left/right valve location and fit before ordering.

• Turn off the appliance power and shut off the gas supply before starting any service.
• Only install on appliances designed for this left-side valve; follow the service diagram and manufacturer instructions for proper fitment.
• Inspect all fittings and connections for leaks after installation; test using approved leak-detection methods per local codes.

This replacement screw fastens appliance panels and components to restore secure mounting and stop rattling or loose parts. A basic, direct-fit fastener for routine repairs and reassembly. What it does:

• Secures panels, brackets, trim, or internal components to prevent movement and vibration
• Replaces missing or stripped screws that cause loose parts or rattling noises
• Restores reliable fastener retention for safe, stable operation
• Works wherever the OEM-specified screw is required for proper assembly

• Use the matching driver/socket and turn slowly to avoid stripping the head or threads
• Tighten until snug; do not over-torque to prevent damage to threads or housings
• Power off and unplug the appliance before attempting any repair
• If other fasteners or damaged mating threads are found, inspect surrounding components and replace as needed

This replacement fan control knob restores smooth, reliable operation of your appliance's fan/blower. It replaces a cracked or missing knob so you can turn the fan on and adjust settings with a factory look. What it does:

• Attaches to the fan/blower control switch so you can select on/off and speed settings
• Restores control when the original knob is cracked, stripped, or missing
• Helps resolve symptoms like the knob slipping, spinning freely, or not turning the shaft
• Black finish matches the original appearance

• 1 black fan control knob

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the control shaft
• Align the new knob with the shaft orientation and press it on until fully seated—do not force
• If the knob won't seat, inspect the control shaft for damage or debris
