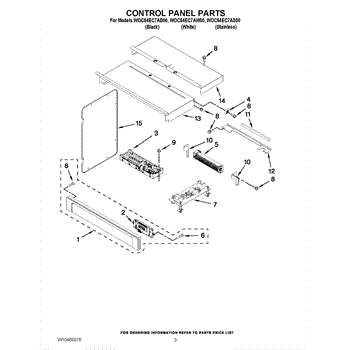

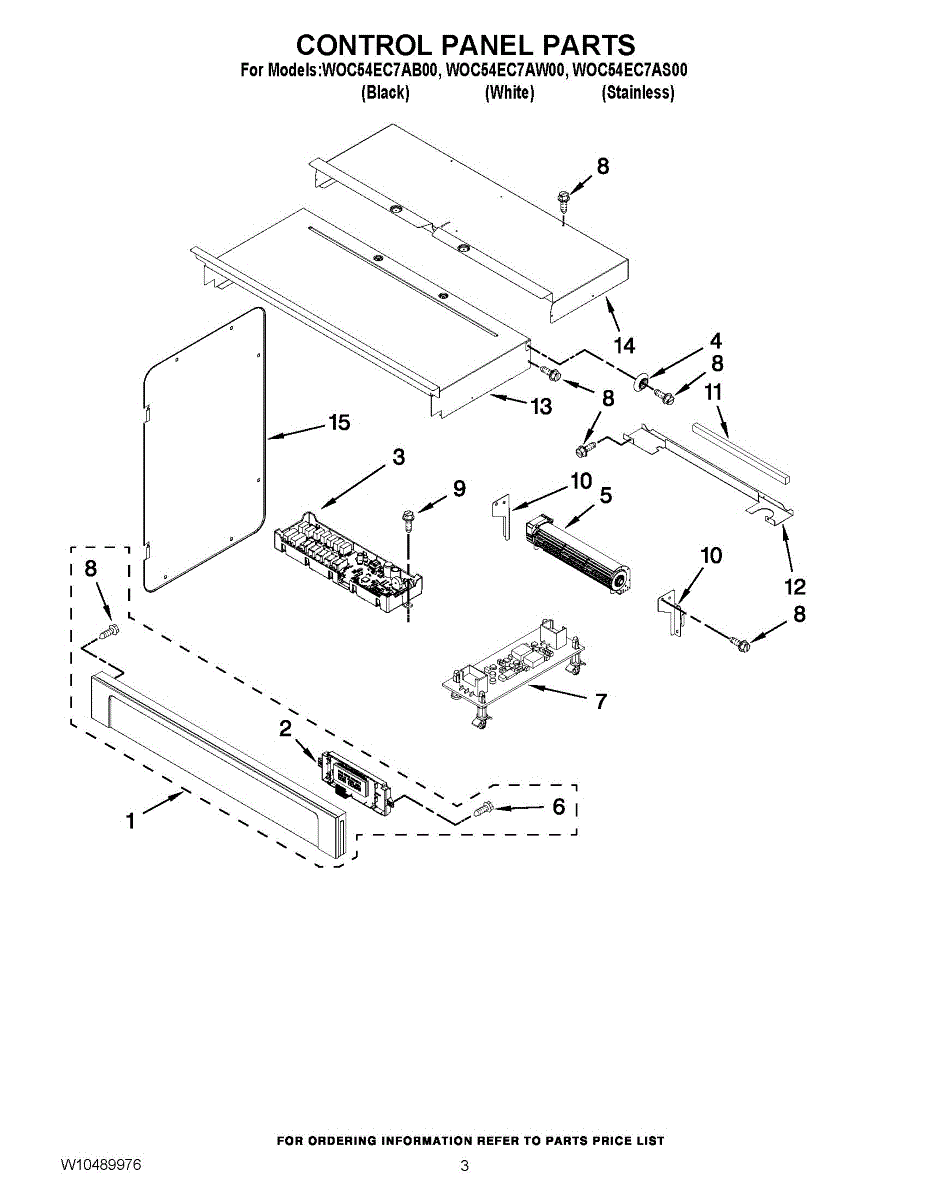

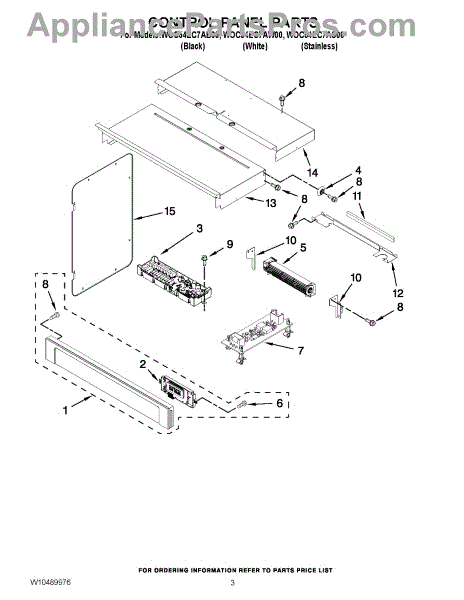

Parts for Whirlpool WOC54EC7AB00: 02 - Control Panel Parts

This electronic control board replaces the console control that manages your appliance's functions, settings and display, restoring reliable cycle selection and user interface operation. It's a direct-fit replacement designed to return normal control performance. What it does:

• Receives and interprets user inputs from the control panel and starts selected cycles
• Controls time, temperature and cycle sequences for proper appliance operation
• Manages display readouts and indicator lights for cycle status
• Commonly used when the control is unresponsive, displays errors, or cycles start/stop unexpectedly

• Disconnect power to the appliance before starting work to avoid electrical shock
• Handle the board carefully; avoid static discharge by grounding yourself or using anti-static protection
• Verify connector locations and orientation before disconnecting wires; label connectors if needed

This electronic control board manages the oven's user interface and timing functions so the range responds correctly to button presses, displays information, and controls bake/ broil cycles. It restores control for normal cooking operations. What it does:

• Receives input from the touchpad/knobs and sends commands to the oven's heating and timing systems
• Controls display, clocks, timers and cycle settings so the oven operates as selected
• Helps regulate bake/broil cycles by signaling relays or the oven ignitor
• Common symptom when failing: blank or unresponsive display, controls that don't start cycles, or persistent error codes

• One electronic control board

• Disconnect power to the appliance at the breaker before servicing
• Handle the board carefully to avoid ESD damage and avoid touching circuit traces
• Verify connector seating and wire harness routing during reassembly

This wide interface board is the appliance's user-facing electronic control that receives touchpad/input signals and communicates with the main control to run cycles. Replacing a faulty board restores control responsiveness and display feedback. What it does:

• Controls user inputs from the console and relays commands to the appliance control system
• Manages display outputs and status indicators for cycle selection and time remaining
• Can resolve symptoms like unresponsive buttons, blank or erratic display, or incorrect cycle selections
• Works as the console-level communication link between the user interface and the main control board

• One wide interface electronic control board

• Disconnect power to the appliance before beginning any repair to avoid shock or damage
• Handle the board by the edges and avoid contact with circuit traces or components; observe ESD precautions
• Verify connector seating and orientation during reassembly; do not force connectors

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps
