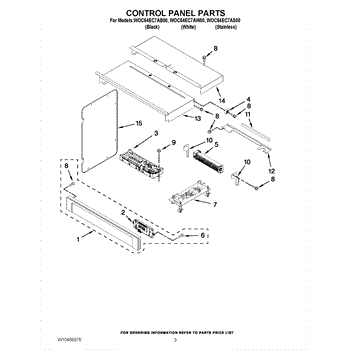

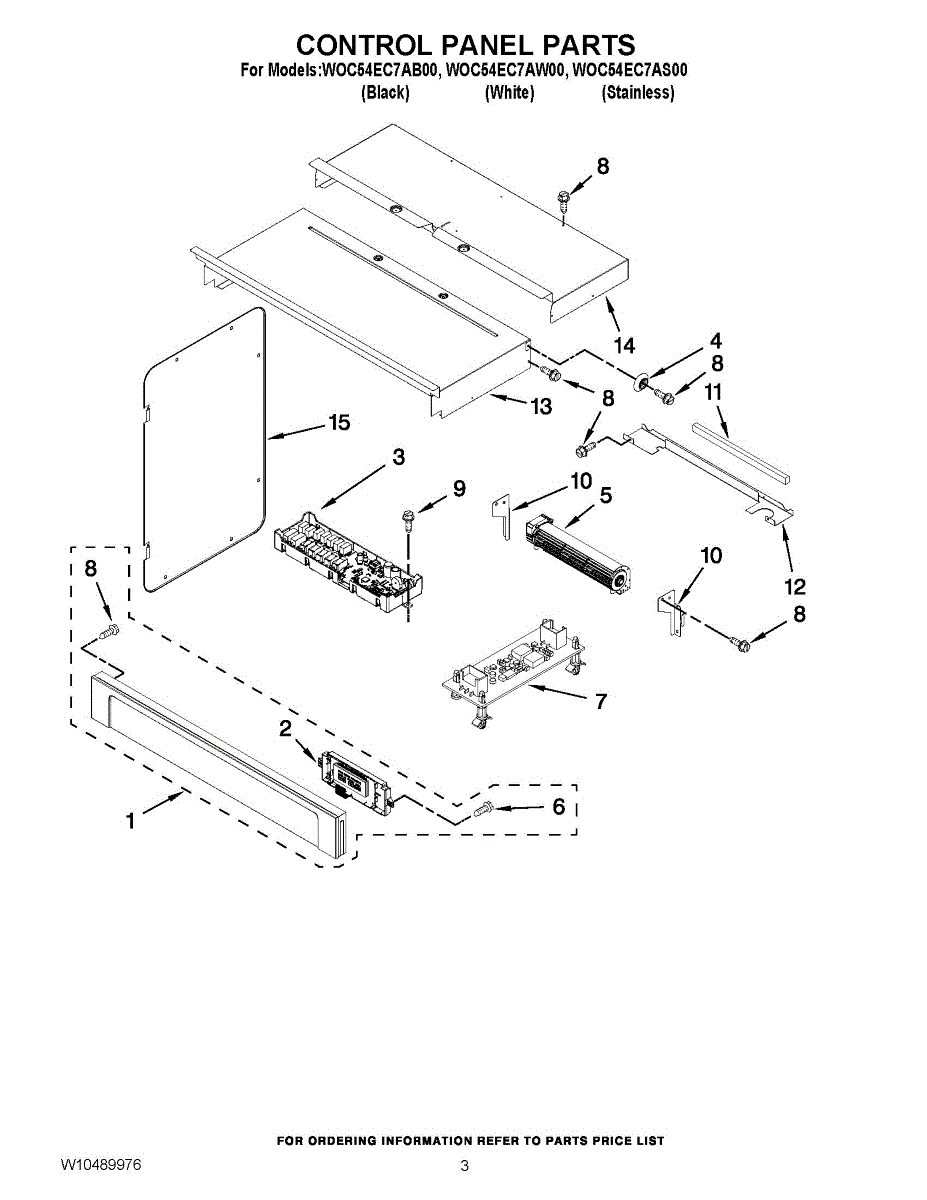

Parts for Whirlpool WOC54EC7AW00: 02 - Control Panel Parts

This electronic control board replaces the console control that manages your appliance's functions, settings and display, restoring reliable cycle selection and user interface operation. It's a direct-fit replacement designed to return normal control performance. What it does:

• Receives and interprets user inputs from the control panel and starts selected cycles
• Controls time, temperature and cycle sequences for proper appliance operation
• Manages display readouts and indicator lights for cycle status
• Commonly used when the control is unresponsive, displays errors, or cycles start/stop unexpectedly

• Disconnect power to the appliance before starting work to avoid electrical shock
• Handle the board carefully; avoid static discharge by grounding yourself or using anti-static protection
• Verify connector locations and orientation before disconnecting wires; label connectors if needed

If your microwave displays error codes, buttons don't respond, or functions are unavailable, this electronic control board restores operation. Moderate DIY.

The blower wheel is a fan component that moves air through your appliance, whether circulating heated air in a dryer or pushing conditioned air through a refrigerator or HVAC system. It spins at high speed to maintain consistent airflow throughout the cycle. Replace this part if your appliance is noisy, vibrating excessively, or not moving enough air to heat or cool properly.

This wide interface board is the appliance's user-facing electronic control that receives touchpad/input signals and communicates with the main control to run cycles. Replacing a faulty board restores control responsiveness and display feedback. What it does:

• Controls user inputs from the console and relays commands to the appliance control system
• Manages display outputs and status indicators for cycle selection and time remaining
• Can resolve symptoms like unresponsive buttons, blank or erratic display, or incorrect cycle selections
• Works as the console-level communication link between the user interface and the main control board

• One wide interface electronic control board

• Disconnect power to the appliance before beginning any repair to avoid shock or damage
• Handle the board by the edges and avoid contact with circuit traces or components; observe ESD precautions
• Verify connector seating and orientation during reassembly; do not force connectors

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps
