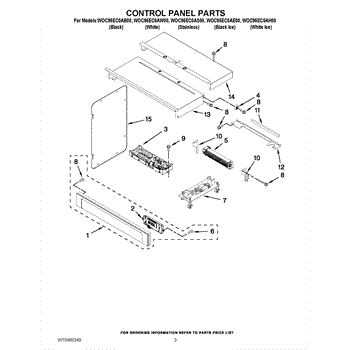

Parts for Whirlpool WOC95EC0AH00: 02 - Control Panel Parts

This control panel is the appliance's user interface assembly that houses the electronic controls and display, restoring normal selection and feedback so your appliances' cycles and settings respond correctly. What it does:

• Provides the buttons/touchpad and display used to select cycles, options and start/stop functions
• Sends user inputs to the appliance's main control so selected settings are executed
• Shows cycle progress, status and error indicators for troubleshooting
• Replaces a cracked, unresponsive, or visually damaged control interface

• Disconnect power before beginning any repair to avoid shock or damage.
• Handle the panel carefully to avoid scratching or damaging the display and keypad.
• Basic hand tools are typically required; keep fasteners and wiring organized during disassembly.

This electronic control board replaces the console control that manages your appliance's functions, settings and display, restoring reliable cycle selection and user interface operation. It's a direct-fit replacement designed to return normal control performance. What it does:

• Receives and interprets user inputs from the control panel and starts selected cycles
• Controls time, temperature and cycle sequences for proper appliance operation
• Manages display readouts and indicator lights for cycle status
• Commonly used when the control is unresponsive, displays errors, or cycles start/stop unexpectedly

• Disconnect power to the appliance before starting work to avoid electrical shock
• Handle the board carefully; avoid static discharge by grounding yourself or using anti-static protection
• Verify connector locations and orientation before disconnecting wires; label connectors if needed

This electronic control board manages the oven's user interface and timing functions so the range responds correctly to button presses, displays information, and controls bake/ broil cycles. It restores control for normal cooking operations. What it does:

• Receives input from the touchpad/knobs and sends commands to the oven's heating and timing systems
• Controls display, clocks, timers and cycle settings so the oven operates as selected
• Helps regulate bake/broil cycles by signaling relays or the oven ignitor
• Common symptom when failing: blank or unresponsive display, controls that don't start cycles, or persistent error codes

• One electronic control board

• Disconnect power to the appliance at the breaker before servicing
• Handle the board carefully to avoid ESD damage and avoid touching circuit traces
• Verify connector seating and wire harness routing during reassembly

This wide interface board is the appliance's user-facing electronic control that receives touchpad/input signals and communicates with the main control to run cycles. Replacing a faulty board restores control responsiveness and display feedback. What it does:

• Controls user inputs from the console and relays commands to the appliance control system
• Manages display outputs and status indicators for cycle selection and time remaining
• Can resolve symptoms like unresponsive buttons, blank or erratic display, or incorrect cycle selections
• Works as the console-level communication link between the user interface and the main control board

• One wide interface electronic control board

• Disconnect power to the appliance before beginning any repair to avoid shock or damage
• Handle the board by the edges and avoid contact with circuit traces or components; observe ESD precautions
• Verify connector seating and orientation during reassembly; do not force connectors

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps
