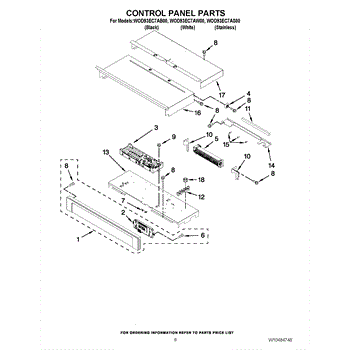

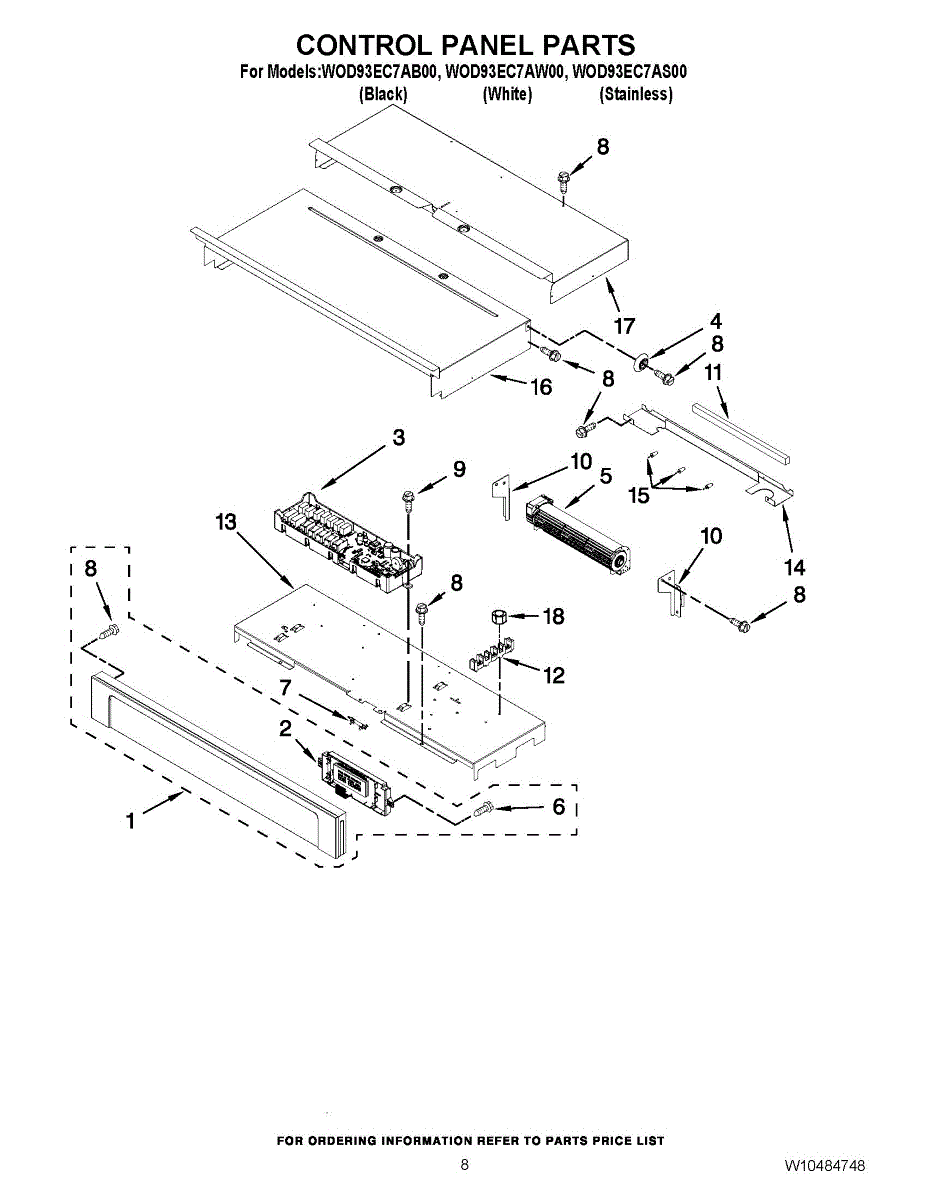

Parts for Whirlpool WOD93EC7AW00: 06 - Control Panel Parts

This control panel is the external user interface that lets you select oven and cooktop functions and view status. It restores responsive controls and readable display so you can operate your range with confidence. What it does

• Houses the touchpad/buttons and display used to set oven temperature, timers, and cooking modes
• Replaces a panel with unresponsive buttons, faded or blank display, or intermittent touch response
• Helps resolve control-related errors that prevent starting bake, broil, or other cycles
• Works with the range's electronic control to send user commands to the oven and cooktop systems

• One control panel (user interface) as shown

• High-level repair: remove range back/sides or console trim per model service instructions to access and replace the panel
• Power safety: disconnect electrical power at the breaker or unplug the appliance before beginning service
• Hardware and connector caution: keep and reuse all mounting screws and wire connectors; ensure ribbon/plug connections are fully seated

This electronic control board replaces the console control that manages your appliance's functions, settings and display, restoring reliable cycle selection and user interface operation. It's a direct-fit replacement designed to return normal control performance. What it does:

• Receives and interprets user inputs from the control panel and starts selected cycles
• Controls time, temperature and cycle sequences for proper appliance operation
• Manages display readouts and indicator lights for cycle status
• Commonly used when the control is unresponsive, displays errors, or cycles start/stop unexpectedly

• Disconnect power to the appliance before starting work to avoid electrical shock
• Handle the board carefully; avoid static discharge by grounding yourself or using anti-static protection
• Verify connector locations and orientation before disconnecting wires; label connectors if needed

Fix uneven cooking or hot spots in your oven with this convection blower. Circulates hot air for even heat distribution throughout the oven cavity.

The blower wheel is a fan component that moves air through your appliance, whether circulating heated air in a dryer or pushing conditioned air through a refrigerator or HVAC system. It spins at high speed to maintain consistent airflow throughout the cycle. Replace this part if your appliance is noisy, vibrating excessively, or not moving enough air to heat or cool properly.

The Thermal Fuse is an OEM part for Whirlpool ovens. This part cuts off power to the oven if it detects excessively high temperatures, preventing potential overheating and ensuring safe operation.

Over time, the thermal fuse can fail due to regular use, exposure to high temperatures, or electrical issues.

Symptoms of a bad thermal fuse include:

• Oven not powering on
• Oven not heating up
• Interruption of cooking cycles
• No response from oven controls

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Cabinet panel that covers the top of your wall oven. Replaces cracked, discolored, or damaged panels to restore the finished appearance of your unit.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block
