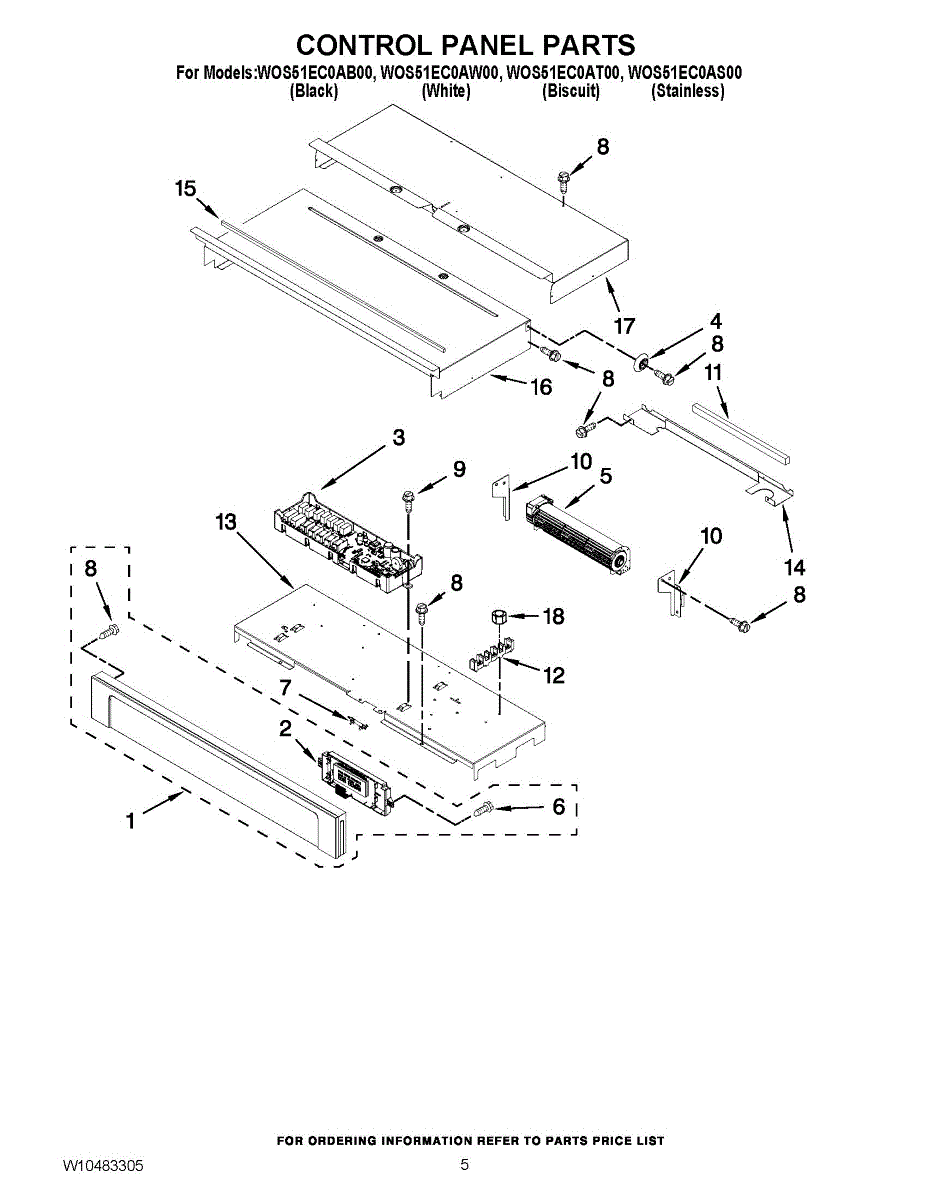

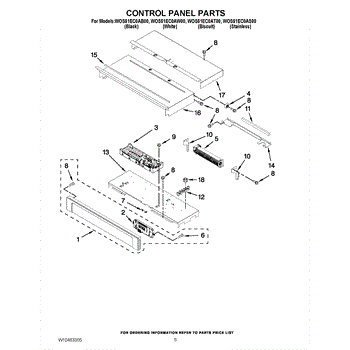

Parts for Whirlpool WOS51EC0AS00: 04 - Control Panel Parts

The Panl-Cntrl is an OEM part for Whirlpool ranges. Located at the front of the oven cavity, this control panel houses all necessary interface buttons and digital displays.

Over years of repeated use, causes such as normal wear from frequent activation of buttons can degrade print/display quality. Surface soil and spills left unattended also negatively impact appearance.

Symptoms of a control panel needing replacement include:

• Faded, worn or sticky button lettering that is difficult to read
• Pixelated or blank display windows that compromise usability
• Stuck or unresponsive interface functions causing cooking issues

This Whirlpool control panel replacement fits directly and is matched for some KitchenAid, Jenn-Air, Amana, Roper and Kenmore ranges as well.

This control panel is the exterior user interface that houses the touchpads and display, restoring reliable control and clear status feedback for your range or oven. It replaces a cracked, worn, or unresponsive front control surface. What it does:

• Provides the touchpad buttons and display area used to set bake/clock/timer and other cooking functions
• Restores responsiveness when buttons are unresponsive, sticking, or cosmetically damaged
• Re-establishes a clean, readable display if the previous panel was faded or scratched
• Works with the internal control board to transmit user commands to the appliance

• One control panel / user interface assembly

• Disconnect power (unplug or shut off circuit breaker) before beginning any work
• Handle glass and plastic surfaces carefully to avoid cracking or scratching
• Removal typically requires pulling the oven/range console trim and unscrewing fasteners — keep track of screws and clips

This electronic control board is the appliance's brain, managing power to key components while executing your selected settings. Replacing a failed board restores normal operation, responsive controls, and reliable cycle timing across programmed functions.

• Interprets user inputs and runs stored programs while managing safety interlocks
• Switches onboard relays to power loads (motors, heaters, fans, valves) as required
• Monitors sensor and switch feedback to control performance and protect the system
• Common failure signs: won't power on or start, unresponsive controls/display, won't advance or stops mid-cycle, random beeping/flashing, or error codes

• Disconnect power at the breaker; turn off gas/water if your appliance uses them
• Use ESD protection; handle the board by the edges to avoid static damage
• Photograph and label all connectors; transfer any jumpers or mounting hardware from the original board
• After reassembly, restore power and run any model-specific diagnostic or calibration procedure per the service manual.

This blower circulates air through the dryer's drum and exhaust system to support proper drying and venting. Replaces a worn or damaged blower to help restore normal airflow and reduce overheating risk. What it does:

• Moves heated air from the heater assembly through the drum and out the vent.
• Helps maintain airflow for efficient drying and even fabric drying.
• A damaged or noisy blower can cause weak airflow, long dry times, or unusual rattling sounds.
• Proper blower operation helps prevent excessive heat buildup in the cabinet.

• Disconnect power before beginning any service to avoid shock.
• Access typically requires removing the dryer front or back panel.
• Inspect the blower wheel and housing for lint buildup or obstructions and clean before reassembly.

The Thermal Fuse is an OEM part for Whirlpool ovens. It acts as a safety device that prevents the oven from overheating. When the oven reaches an unsafe temperature, the thermal fuse cuts off power to the heating elements, ensuring the appliance does not overheat and cause potential damage or fire hazards.

Causes of a bad thermal fuse can include frequent overheating, electrical issues, or normal wear and tear over time. These factors can lead to the fuse blowing or becoming ineffective, compromising the safety and functionality of the oven.

Symptoms of a bad Thermal Fuse include:

• The oven not heating up
• The oven shutting off unexpectedly
• No power to the oven's heating elements
• Error codes related to overheating or temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block
