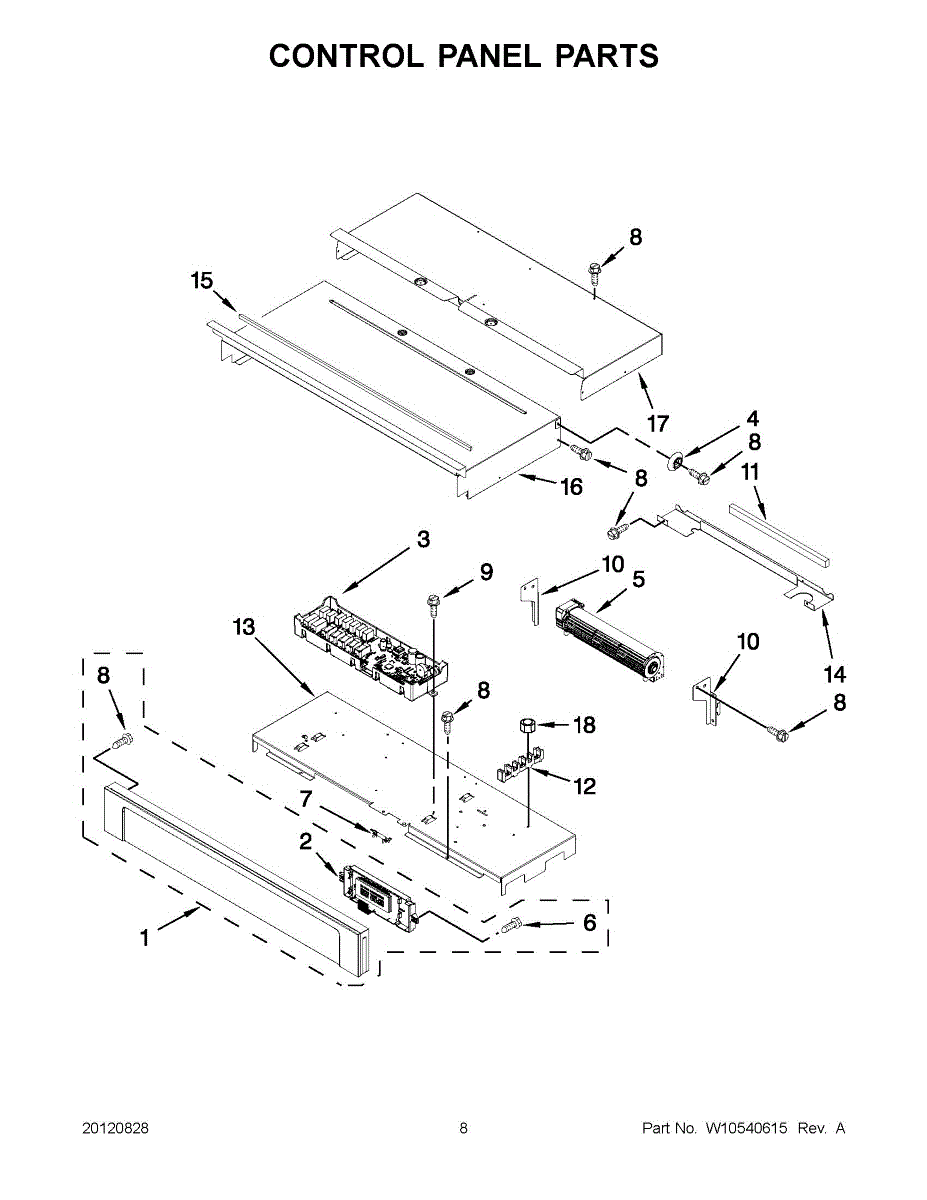

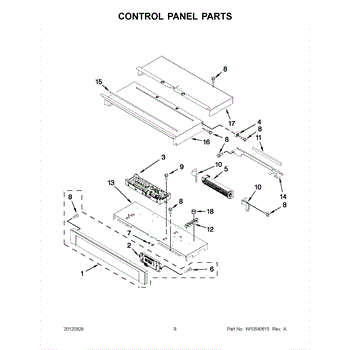

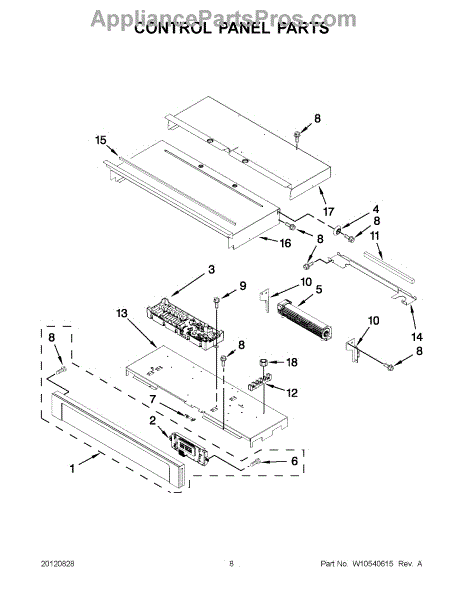

Parts for Whirlpool WOS92EC0AH01: 04 - Control Panel Parts

This control panel is the user interface that lets you set cooking functions and control your oven. It replaces a worn or unresponsive touchpad so you can restore normal button control and display feedback. What it does:

• Replaces the front touchpad and button assembly used to enter cook cycles and settings
• Restores button responsiveness when keys are unresponsive, sticky, or intermittently working
• Returns clear display feedback when the control area is cracked or damaged
• Helps resolve issues where oven functions won't start due to a faulty user interface

• Always disconnect power to the appliance before starting any repair
• Handle the panel and glass gently to avoid cracks or damage
• Some installs require removing the oven door and trim—refer to OEM service instructions
• If the control requires programming or calibration, follow the manufacturer's procedure

This electronic control board is the appliance's brain, managing power to key components while executing your selected settings. Replacing a failed board restores normal operation, responsive controls, and reliable cycle timing across programmed functions.

• Interprets user inputs and runs stored programs while managing safety interlocks
• Switches onboard relays to power loads (motors, heaters, fans, valves) as required
• Monitors sensor and switch feedback to control performance and protect the system
• Common failure signs: won't power on or start, unresponsive controls/display, won't advance or stops mid-cycle, random beeping/flashing, or error codes

• Disconnect power at the breaker; turn off gas/water if your appliance uses them
• Use ESD protection; handle the board by the edges to avoid static damage
• Photograph and label all connectors; transfer any jumpers or mounting hardware from the original board
• After reassembly, restore power and run any model-specific diagnostic or calibration procedure per the service manual.

This electronic control board is the appliance's central control module, routing power to components and coordinating normal operation. Replacing a failed board restores reliable performance, responsive controls, and proper sequencing.

• Interprets sensor and user inputs to switch relays and run motors, valves, heaters, and fans as designed
• Manages timing and operating sequences for consistent, safe performance
• Common symptoms of a failed board include the unit not powering on or not running
• Unresponsive buttons or display, random shutdowns, or error/fault codes
• Intermittent operation such as beeping, freezing, or cycles that won't complete

• Disconnect electrical power before servicing; turn off water or gas supplies if applicable
• Use ESD precautions; handle the board by the edges and avoid touching circuitry
• Photograph wiring and move connectors one at a time to the same positions on the new board
• Mount securely and ensure harnesses are fully seated and not pinched before restoring power

This 2-speed blower restores proper airflow in your kitchen ventilation system. Replacing a worn or noisy blower helps capture smoke, steam, and odors so your hood or downdraft vent performs as designed. What it does:

• Provides two-speed airflow to move air through the vent system
• Helps clear steam, smoke, and cooking odors from the cooking area
• Restores ventilation performance when the original blower is worn or damaged

• Includes 1 blower (2-speed)

• Disconnect power at the breaker or unplug the appliance before servicing
• Wear cut-resistant gloves; interior sheet-metal edges can be sharp
• Label wires and note speed-lead positions before removal
• Support the assembly while removing mounting screws; ensure the wheel spins freely and test both speeds after reassembly

The Thermal Fuse is an OEM part for Whirlpool ovens. It acts as a safety device that prevents the oven from overheating. When the oven reaches an unsafe temperature, the thermal fuse cuts off power to the heating elements, ensuring the appliance does not overheat and cause potential damage or fire hazards.

Causes of a bad thermal fuse can include frequent overheating, electrical issues, or normal wear and tear over time. These factors can lead to the fuse blowing or becoming ineffective, compromising the safety and functionality of the oven.

Symptoms of a bad Thermal Fuse include:

• The oven not heating up
• The oven shutting off unexpectedly
• No power to the oven's heating elements
• Error codes related to overheating or temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block
