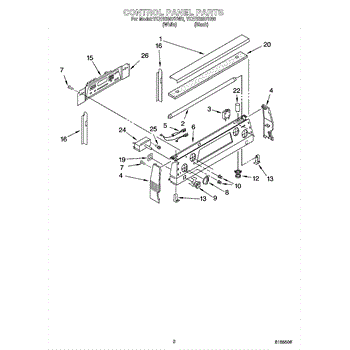

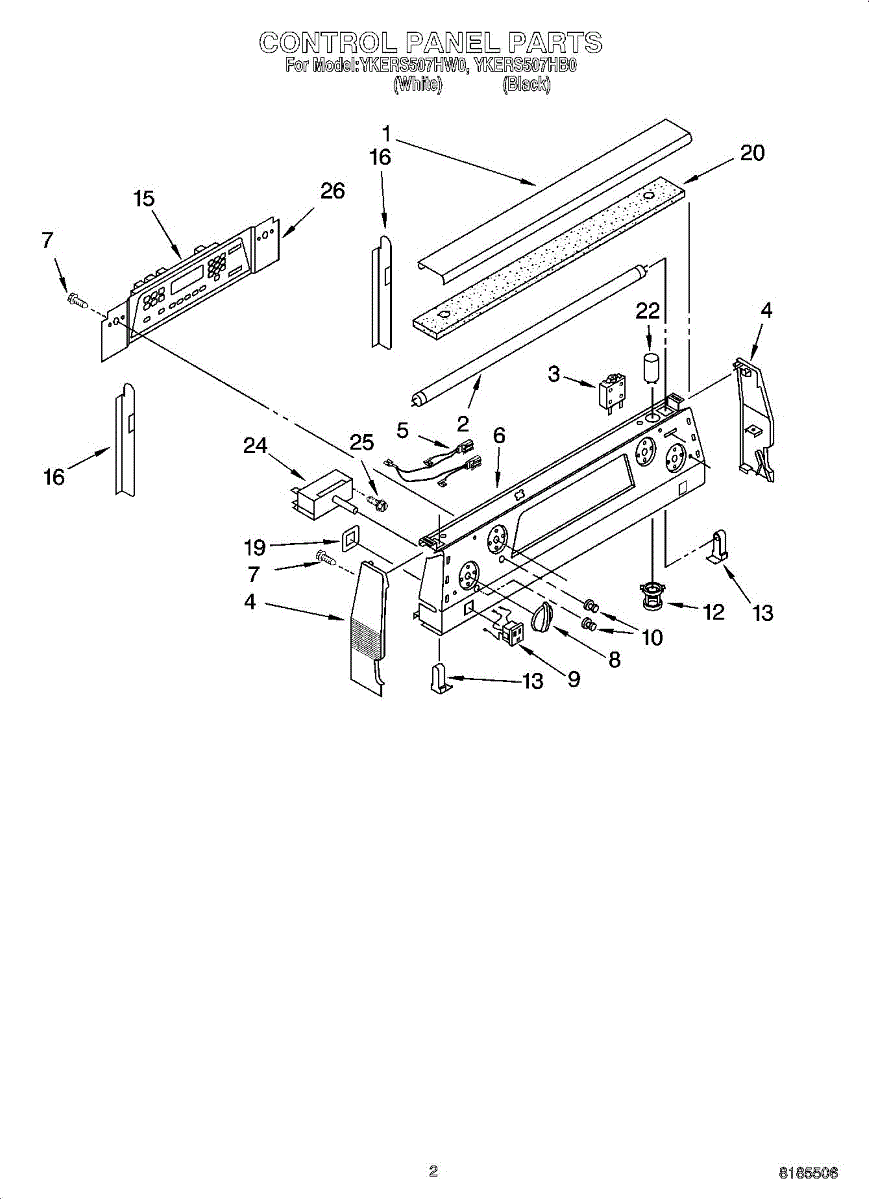

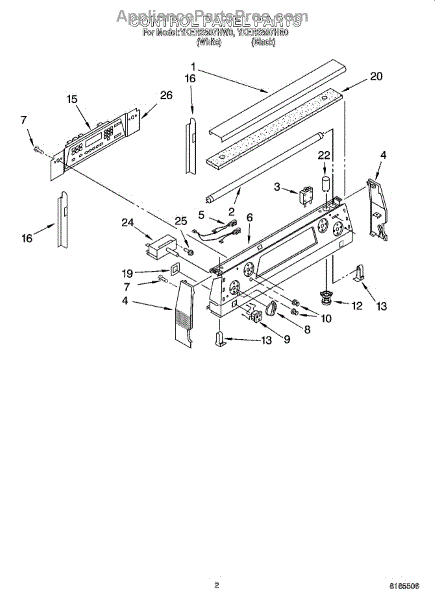

Parts for Whirlpool YKERS507HB0: 02 - Control Panel Parts

Size: 26 inches long. F18t8/cw/k26.

Size: 10-16 x 3/8 inch.

Color: White. Other colors: For black use WP9750372FF, for biscuit use WP9750372FC.

Color: Black. Measures about 2 inches in diameter. Other colors: For white use WP9750372FW, for biscuit use WP9750372FC.

Red indicator lens that snaps over a control-panel indicator light to restore visibility and color. Replaces cracked, faded, or missing indicator covers so status lights are easier to see during use. What it does:

• Covers and protects the control-panel indicator light from dirt and damage.
• Restores the red color and improves visibility when the original lens is faded or discolored.
• Keeps light directed through the panel for a clear status signal.
• Common symptoms: cracked or missing lens, washed-out/red light appears dim or uneven.

• Disconnect power to the appliance before attempting replacement to avoid shock or accidental activation.
• Typically snaps into the control-panel opening; some models may use small retainers or screws—retain any fasteners from the original part.
• Replace only with the correct lens to ensure proper fit and color.
• If the indicator still appears dim after replacing the lens, inspect the bulb/LED and wiring (replace only after verifying power is off).

Fluorescent light bulb starter holder.

This part has been discontinued by the manufacturer and is no longer available.

For the thermal fuse located in the wire harness between the terminal block and electronic control board order WP9781691.

Fluorescent light bulb starter. 22W. FS-25.

For small, 6 inch element. Rating: 1500Watt. Typically for right rear element.

This infinite switch controls the variable heat settings for a cooktop surface burner so you can adjust cooking temperature smoothly and restore proper burner operation. What it does:

• Regulates power to a surface heating element so burners heat at selected settings
• Replaces a worn or failed control that causes burners to stay off or not heat properly
• Fixes burners that only work on one setting or won't respond to the knob
• Helps eliminate inconsistent or fluctuating burner temperatures

• Disconnect power to the range before starting any work to avoid electrical shock
• Accessible from the cooktop or back panel depending on model; remove panels carefully
• Note wire locations or take a photo before disconnecting; reconnect wires to matching terminals

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking
