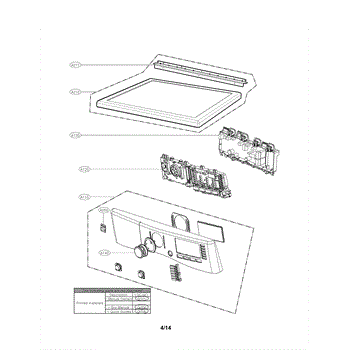

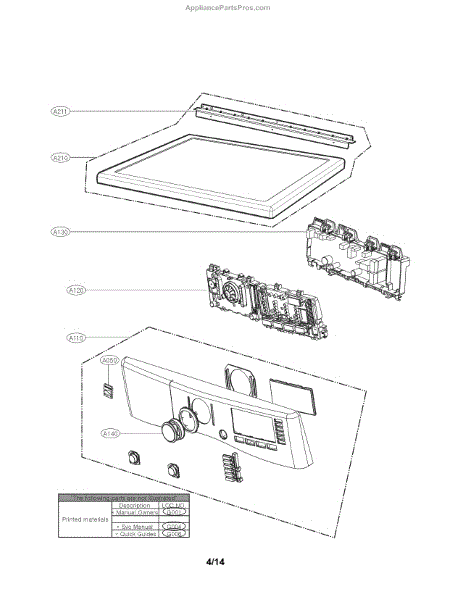

Parts for Kenmore 796.81182310 (79681182310, 796 81182310): Control Panel Parts

This display control board assembly is the electronic PCB for the appliance's user interface. It powers and manages the front-panel display and buttons so settings respond correctly and status information is shown as designed.

• Drives the display/indicators and provides regulated power to the user interface
• Interprets button/touch inputs and relays commands to the main control
• Coordinates communication between the UI and control system for proper operation
• Typical symptoms: blank or dim display, unresponsive buttons/keys, erratic characters/segments, or intermittent UI power

• Disconnect power before servicing; observe ESD precautions when handling the board
• Photograph wiring and label connectors; fully seat any ribbon cables
• Transfer any mounting hardware, standoffs, or cosmetic lens/overlay from the original board if required
• After installation, restore power and test all UI functions

This main PCB power control board manages and distributes power to your appliance's control systems, restoring electronic control and normal operation when the original board has failed. It replaces a faulty control board to help the unit respond to user inputs and run its cycles reliably. What it does:

• Controls and coordinates power to motors, compressors, fans, heaters and electronic circuits
• Manages user interface signals and status communications with other modules
• Can resolve symptoms like no power to controls, unresponsive display/buttons, or intermittent/erratic operation
• Helps restore normal cycle operation when diagnostics point to a failed main control board

• One main PCB power control board assembly

• Always disconnect power at the breaker or unplug the appliance before starting
• Handle the board by the edges and avoid static discharge; consider an ESD strap
• Verify connector alignment and secure all wire harnesses; do not force connectors
