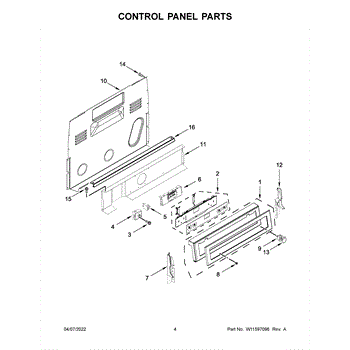

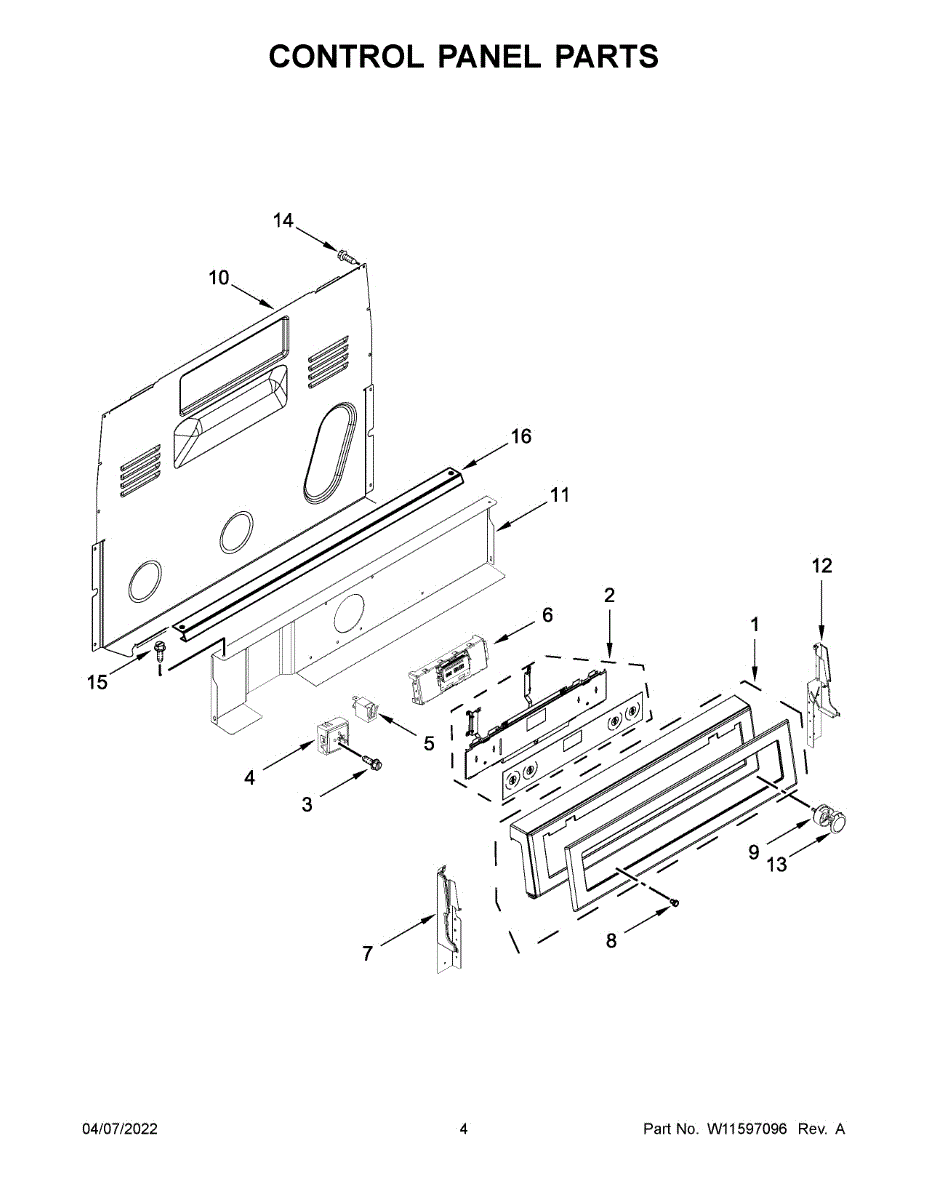

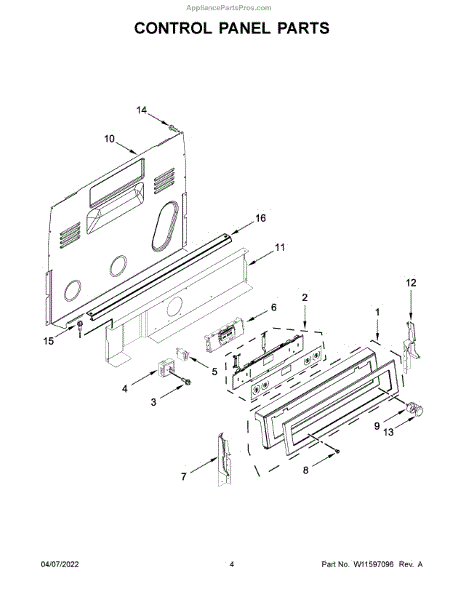

Parts for Kitchenaid KFEG504KPS3: Control Panel Parts

This control panel is the electronic user interface that lets you select cycles and settings and lets the appliance communicate status. Replacing a faulty panel restores reliable control and clear feedback for normal operation. What it does:

• Houses the touchpads/buttons and display used to choose cycles and options
• Sends commands to the appliance's main control board to start and change functions
• Common symptom: unresponsive buttons or controls that won't accept selections
• Common symptom: display is blank, missing segments, or shows error codes tied to the panel

• Disconnect power to the appliance before starting any work to avoid shock or damage
• Handle the panel gently to avoid scratching the overlay or damaging connectors
• Carefully unplug and plug any ribbon or wire connectors; ensure correct alignment before testing

This membrane-style control panel overlay replaces a worn or damaged touchpad so buttons respond properly and the appliance looks finished. It restores a clear, labeled surface for user input and protects the underlying switch assembly. What it does

• Provides the labeled, tactile surface for the appliance control buttons so inputs register correctly
• Replaces cracked, faded, or peeling overlays that make controls hard to read or use
• Protects the electronic switch/membrane beneath from spills and wear
• Helps restore normal control appearance and usability without replacing the entire control board

• High-level replacement: typically mounts over the existing control assembly; follow OEM disassembly steps
• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or damage
• Handle carefully to avoid bending or contaminating the adhesive surface

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Infinite Switch is an OEM replacement part for Whirlpool ranges. It is responsible for regulating the power and heat output of the surface elements on your range, allowing you to adjust the temperature for cooking.

A bad surface element control infinite switch can occur due to wear and tear, electrical issues, or damage to the switch mechanism. If you notice symptoms such as inability to adjust the temperature, uneven heating, or the surface element not turning on or off, it may indicate a faulty infinite switch.

Symptoms of a bad infinite switch include:

• Inability to adjust the temperature
• Uneven heating
• Surface element not turning on or off

Restore your range by replacing the faulty or damaged surface element control infinite switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Infinite Switch is an OEM part for Whirlpool ranges. It contains internal switches that control cooking functions and safety features.

Causes of a bad switch set can be related to prolonged high-heat exposure, moisture, or accidental impact damage. Over many uses, normal component wear also occurs.

Symptoms of a bad switch include:

• Inoperable or unresponsive dials/buttons
• Failure to ignite burners or maintain set temperatures
• Stovetop elements do not turn off properly
• Oven will not initiate bake or broil cycles

This switch replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

Surface unit indicactor light.

Restore reliable operation with this Electronic Control Board. Serving as the appliance's main control module, it processes inputs and directs power to components so cycles run as designed, often resolving no-start, unresponsive controls, or erratic behavior. What it does:

• Directs timing and operation of key components
• Interprets inputs from sensors, switches, and the user interface to manage functions accurately
• Stores and executes cycle logic to ensure proper performance
• Typical failure symptoms: won't start, unresponsive or dead controls, won't advance/complete cycles, flashing lights, or control-related error codes

• 1 electronic control board

• Disconnect power before servicing; verify no voltage is present
• Use ESD precautions; handle the board by its edges
• Access the control area, photograph wiring, and transfer connectors one at a time to the new board
• After installation, follow the appliance's tech sheet for any required diagnostics, calibration, or code clearing on your model

Color: Black   Note: Left side endcap

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This knob bezel is the trim ring that sits behind a control knob. It finishes the panel opening and helps center the knob on its shaft for smooth operation and a clean, factory look.

• Provides a finished opening around the control knob and supports proper knob alignment
• Replaces cracked, missing, or discolored bezel that can make the knob feel loose or sit unevenly
• Helps protect the control panel surface and shaft opening from wear
• Common cosmetic refresh when the original trim is damaged

• Disconnect power; also shut off gas before servicing
• Pull the knob straight off the control shaft
• Release the old bezel (tabs or screws as designed), align the new bezel, and seat it securely
• Reinstall the knob and test for smooth, centered operation

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

Color: Black   Note: Right side endcap

The knob is an OEM part for Whirlpool ranges. It provides an accessible interface for temperature and function selection via an easy to grip design. The knob allows for setting of temperature for the surface elements.

Causes of a bad knob can include wear and tear over time, exposure to excessive heat warping the surface, or accidental damage compromising integrity.

Symptoms of a bad knob include:

• Looseness, wobble or inability to secure firmly on the stem
• Faded or illegible markings limiting functionality
• Cracks or breaks that could be a hand safety hazard

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility
