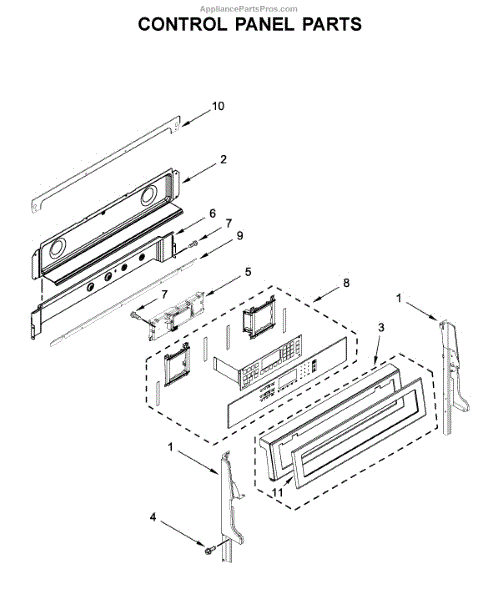

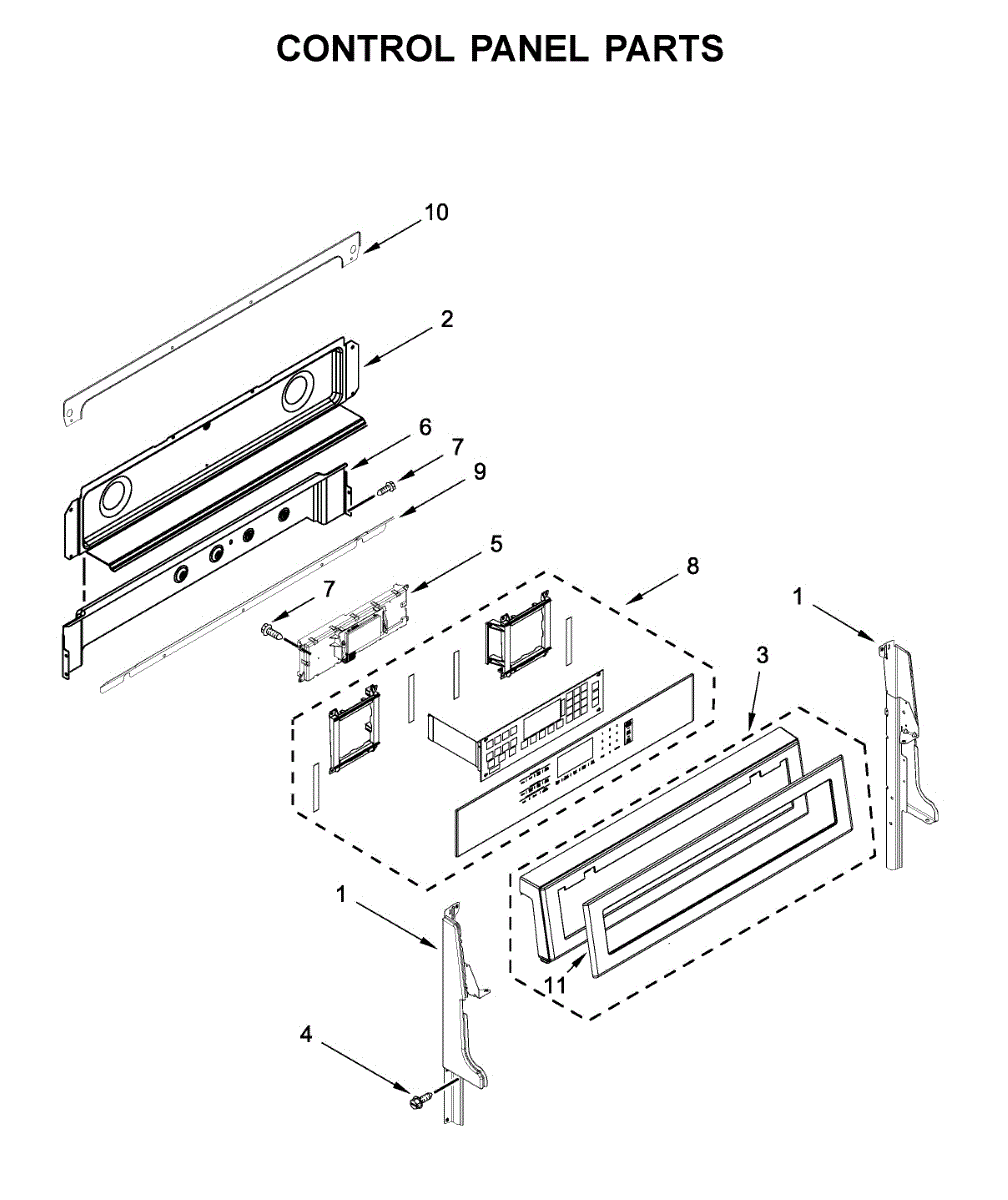

Parts for Kitchenaid KFID500ESS02: Control Panel Parts

Color: Black

Color: Black

This control panel is the main user console that houses the oven/range controls and display, restoring full command of cooking functions and settings. It replaces a damaged or unresponsive front console assembly. What it does:

• Provides the user interface for selecting oven and cooktop functions, timers, and settings
• Houses the display and keypad/buttons for entering commands
• Restores control when buttons are stuck, unresponsive, or the display is blank/dim
• Interfaces with the range/oven control board to transmit user inputs

• One control panel (console) assembly

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Handle the panel and any glass/display areas carefully to avoid scratching or cracking
• Typical installation requires removal of the oven/range front trim and a few screws; refer to the service manual for model-specific steps

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This electronic control board replaces a failed oven/range console control to restore display, timer and cycle control. It secures the unit's user interface and coordinates oven functions for reliable cooking performance. What it does:

• Receives inputs from the touchpad/knobs and controls oven heating cycles and timers
• Powers and drives the LED/display so clock and settings appear correctly
• Manages bake/broil and oven temperature signals sent to relays or control modules
• Common symptom fix: blank or unresponsive display, failure to start, or erratic cycle behavior

• Disconnect power at the breaker or unplug the appliance before service to avoid shock
• Handle the board by edges; avoid touching components and use anti-static precautions
• Reassemble panels and test functions after restoring power; for detailed steps

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly
