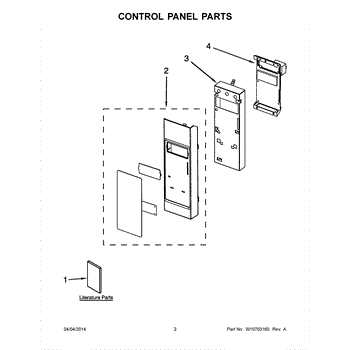

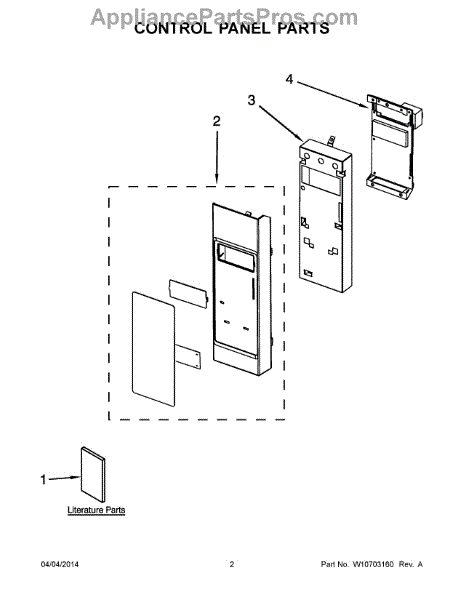

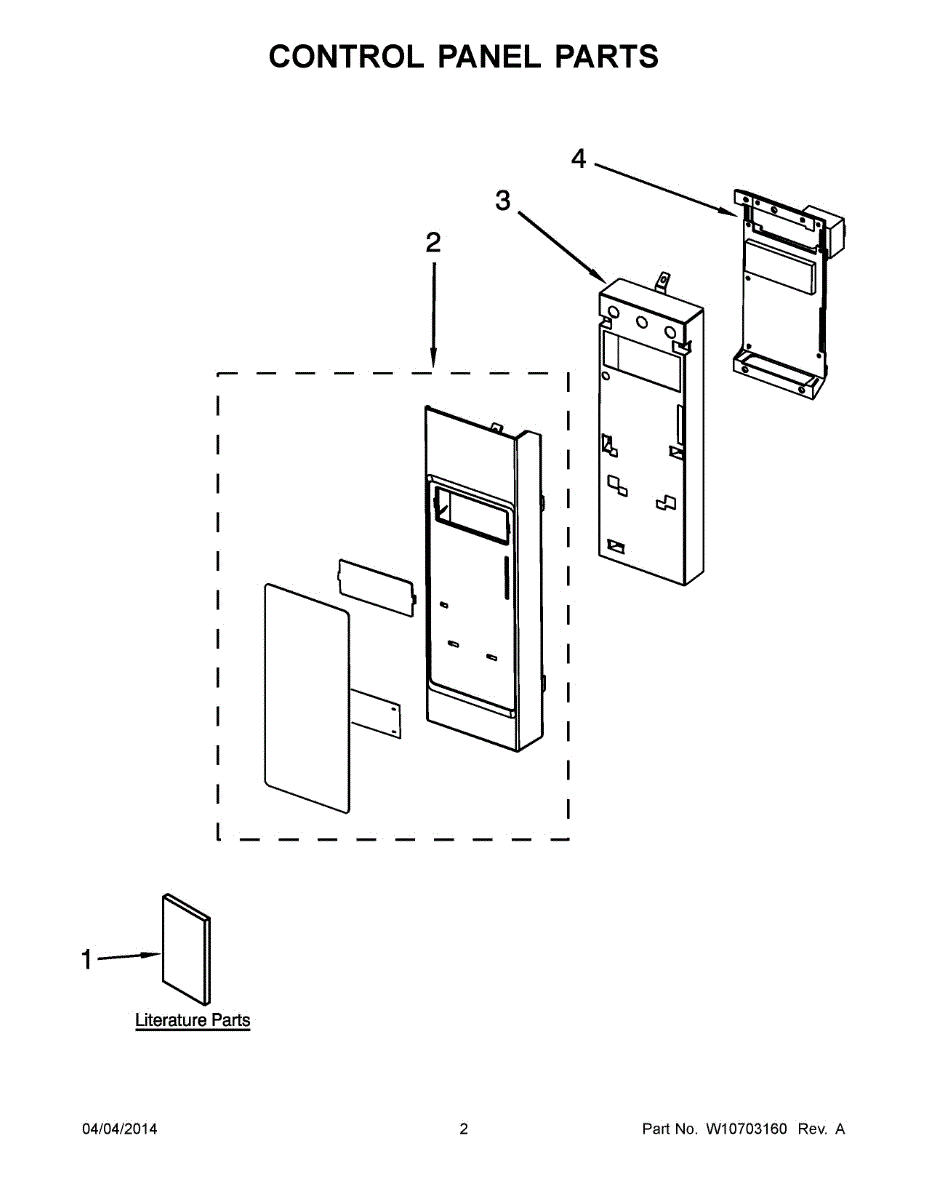

Parts for Kitchenaid KHMS2040BSS1: 02 - Control Panel Parts

This electronic control board is the main console controller that governs the appliance's functions and user interface, restoring timed cycles and display/control responsiveness when the original board fails. What it does:

• Communicates commands between the user controls and appliance components to execute cycles
• Manages display and button/touchpad responses so settings register correctly
• Sends signals to motors, valves and heaters to start, stop and time operations
• Common symptom: no display, unresponsive controls or erratic cycle behavior

• Disconnect power to the appliance before accessing the control area
• Handle the board by its edges and avoid static discharge; use proper ESD precautions
• Some disassembly of the console or control panel may be required; keep screws and connectors organized
• Only replace the board if diagnostics confirm control board failure
