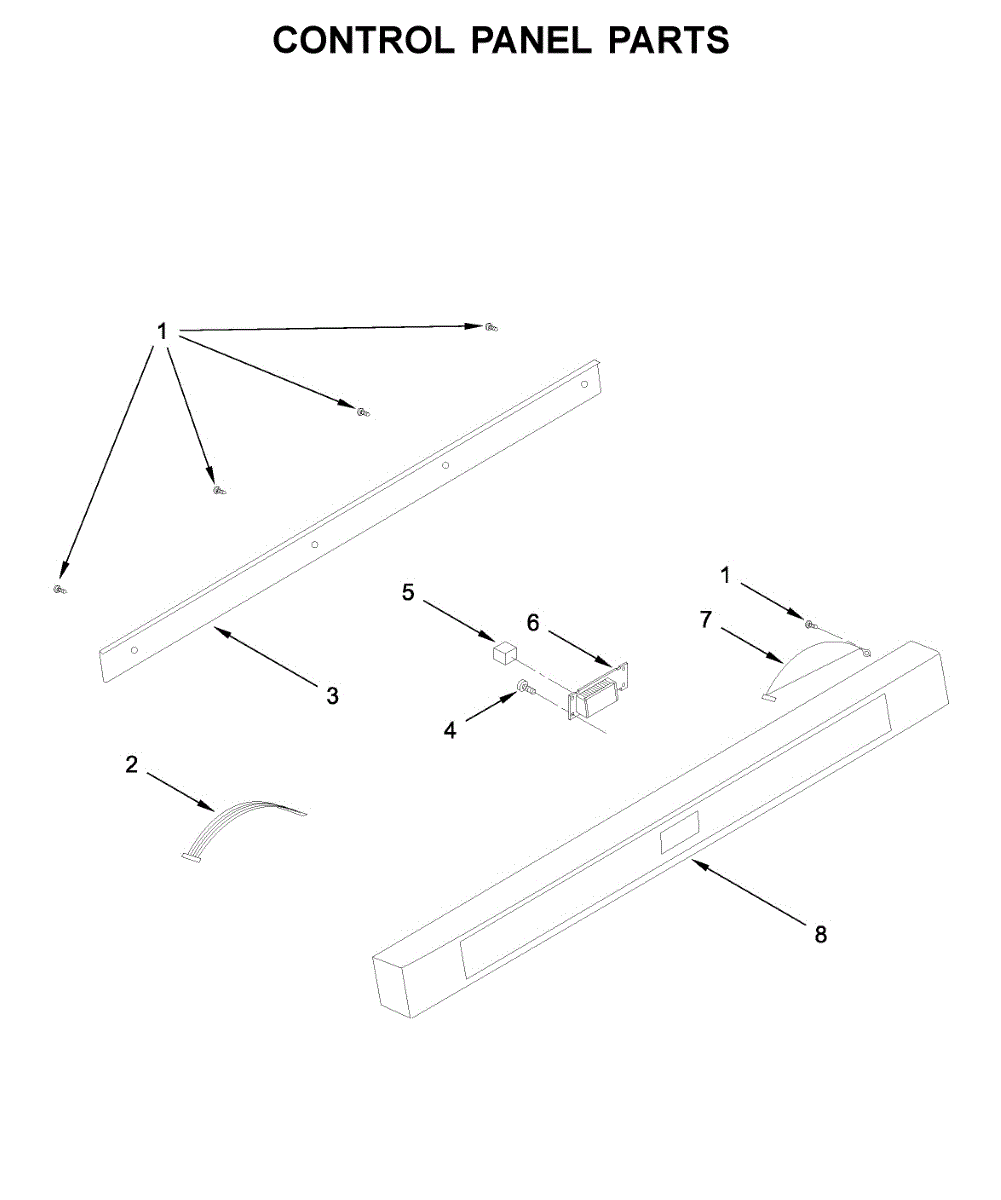

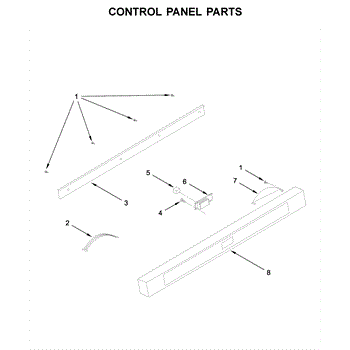

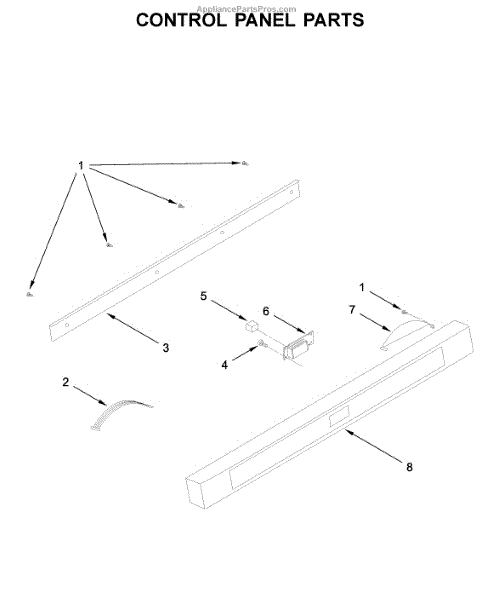

Parts for Kitchenaid KMBD104GSS0: Control Panel Parts

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

This wire harness connects and routes electrical signals between components so controls, motors and sensors receive power and communication. Replacing a damaged harness restores safe electrical continuity and reliable operation. What it does:

• Links control board, switches and motors with insulated wires and connector plugs
• Replaces frayed, burnt or broken wiring that can cause intermittent operation or failures
• Restores proper signal and power flow to affected appliance circuits
• Helps eliminate arcing, shorts or error codes caused by damaged wiring

• One complete wire harness assembly as shown

• High-level replacement only; disconnect power before servicing and follow appliance-specific wiring diagrams
• Handle connectors carefully to avoid bending pins; match connector orientations during reassembly
• If connectors or terminals are corroded, replace or clean per OEM guidance

This console is the outer control panel assembly that houses the dryer or washer controls and display, restoring a finished appearance and providing a secure mounting location for the user interface. Designed to match the original OEM fit and function. What it does:

• Replaces a cracked, faded, or damaged control panel shell to restore proper button and display alignment.
• Provides the mounting surface for user controls, buttons, and the display window so settings operate correctly.
• Helps protect internal control components from dust, moisture, and wear caused by regular use.
• Can resolve issues where physical damage prevents normal operation or makes controls difficult to access.

• One console (control panel assembly)

• Disconnect power (and water supply for washers) before starting any repair to avoid shock or injury.
• Remove outer cabinet/console trim as required to access mounting screws; handle the console carefully to avoid scratching the finish.
• Verify alignment of clips and screw holes before tightening; avoid overtightening to prevent cracking.
• If console contains electronic components, handle with ESD precautions and avoid contact with circuit boards or connectors unless replacing the full assembly.

This replacement console provides the outer control panel and housing that holds the dryer/washer user controls and display, restoring proper button access and the unit's finished appearance. What it does

• Replaces a cracked, broken, or cosmetically damaged control console that leaves buttons or the display exposed.
• Restores secure mounting for control buttons, knobs, and the display assembly.
• Helps eliminate loose or misaligned controls that can interfere with normal operation.
• Returns the appliance's front appearance to a clean, factory look.

• Disconnect the appliance from power (and gas if applicable) before beginning any work.
• Basic hand tools are typically required; support the console while removing fasteners to avoid dropping or damaging internal components.
• Keep all mounting screws and small parts; some models may reuse factory hardware.
• If the console contains the control board or display, handle electronics carefully and avoid static discharge.
