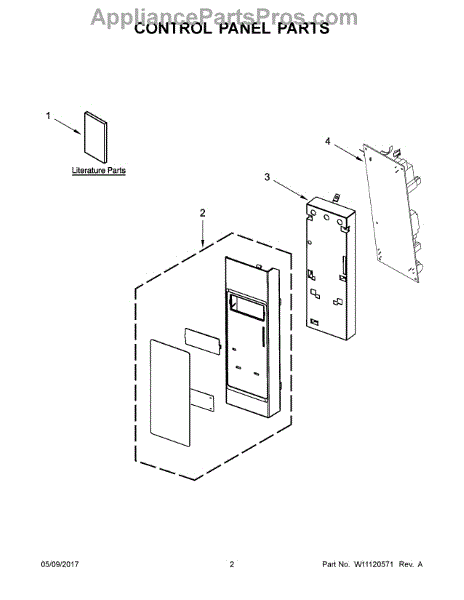

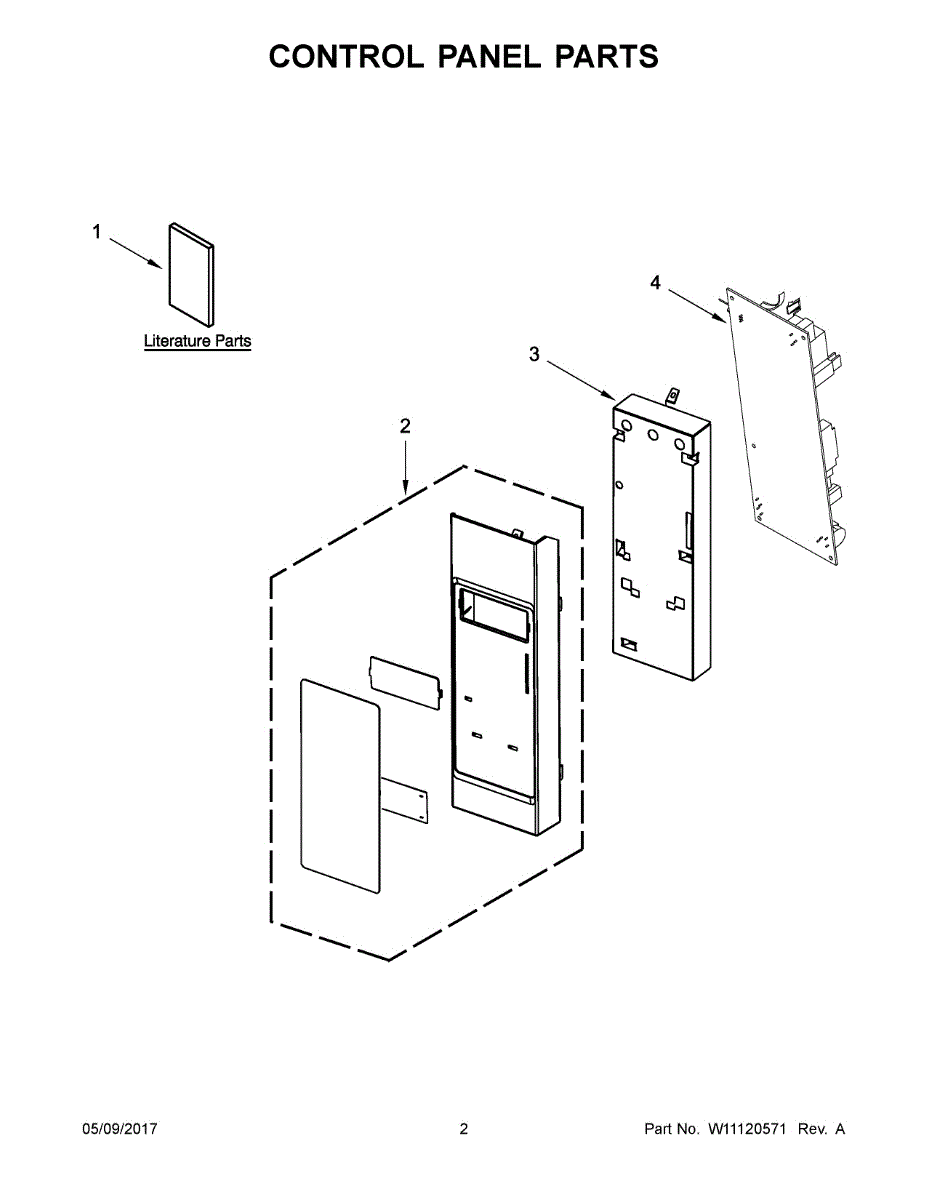

Parts for Kitchenaid KMHS120EBL4: 02 - Control Panel Parts

The Control Panel (Black) is an OEM replacement part for Whirlpool microwaves. This component serves as the interface for selecting cooking functions, setting cooking times, and adjusting power levels. The control panel includes the touchpad and electronic circuitry that communicate user commands to the microwave's main control board.

Causes of a faulty control panel can include wear from frequent use, electrical malfunctions, or physical damage such as cracks or unresponsive buttons. Over time, these issues can prevent the microwave from responding accurately to user inputs or functioning properly.

Symptoms of a bad control panel include:

• Unresponsive or erratic buttons
• Inability to start or stop the microwave
• Error codes displayed on the panel
• Flickering or dim display lights

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This electronic control panel is the user interface assembly that lets you operate and program the appliance. It provides tactile buttons and the display needed to select cycles and options, restoring normal control operation. What it does

• Replaces a worn, unresponsive, or damaged control panel to restore button and display function.
• Allows selection of cycles, options, and start/pause commands through the front-facing user controls.
• Addresses symptoms such as non-working buttons, blank or erratic display readout, or inability to change settings.
• Works with the main control board to transmit user inputs for proper appliance operation.

• One control panel assembly

• Disconnect power to the appliance before attempting any service to avoid shock or injury.
• Basic disassembly of the console may be required; retain all screws and hardware for reassembly.
• Handle the display and ribbon/connectors carefully to avoid damage; ensure connectors are fully seated before testing.

This control bracket secures the appliance control assembly so the console stays stable and aligned during normal use. It helps prevent loose or shifting controls that can cause buttons or knobs to bind. What it does:

• Provides a stable mounting point for the control board/console
• Keeps the control panel aligned to prevent rubbing or misalignment
• Helps reduce vibration-related loosening of control fasteners
• Can resolve symptoms like a loose or wobbly control panel or controls that move when pressed

• Disconnect power to the appliance before beginning any repair.
• Remove the console or access panel per the service guide to reach the bracket.
• Keep all fasteners and note their original positions for correct reassembly.
• Verify correct alignment and secure all screws before restoring power.

The Control Board is an OEM part for Whirlpool microwaves. It controls the various functions and settings of the microwave, providing a reliable interface for users to select cooking options, adjust power levels, and set timers.

A bad control board can occur due to electrical issues, power surges, or component failure. If you notice symptoms such as unresponsive buttons, error codes on the display, or the microwave not heating properly, it may indicate a faulty or malfunctioning control board.

Symptoms of a bad control board include:

• Unresponsive buttons or touchpad
• Error codes displayed on the control panel
• Inconsistent heating or cooking results

Restore your microwave by replacing the faulty control board with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
