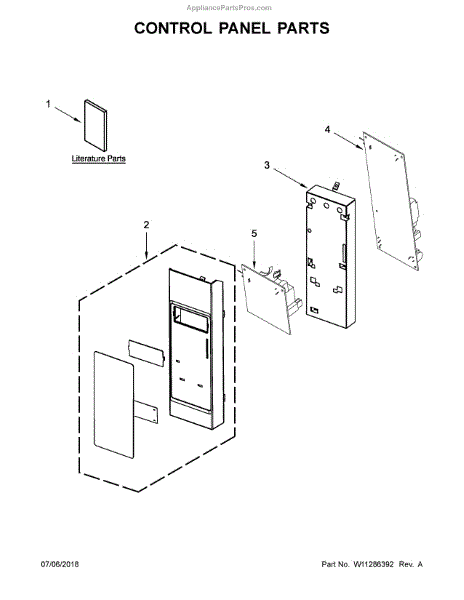

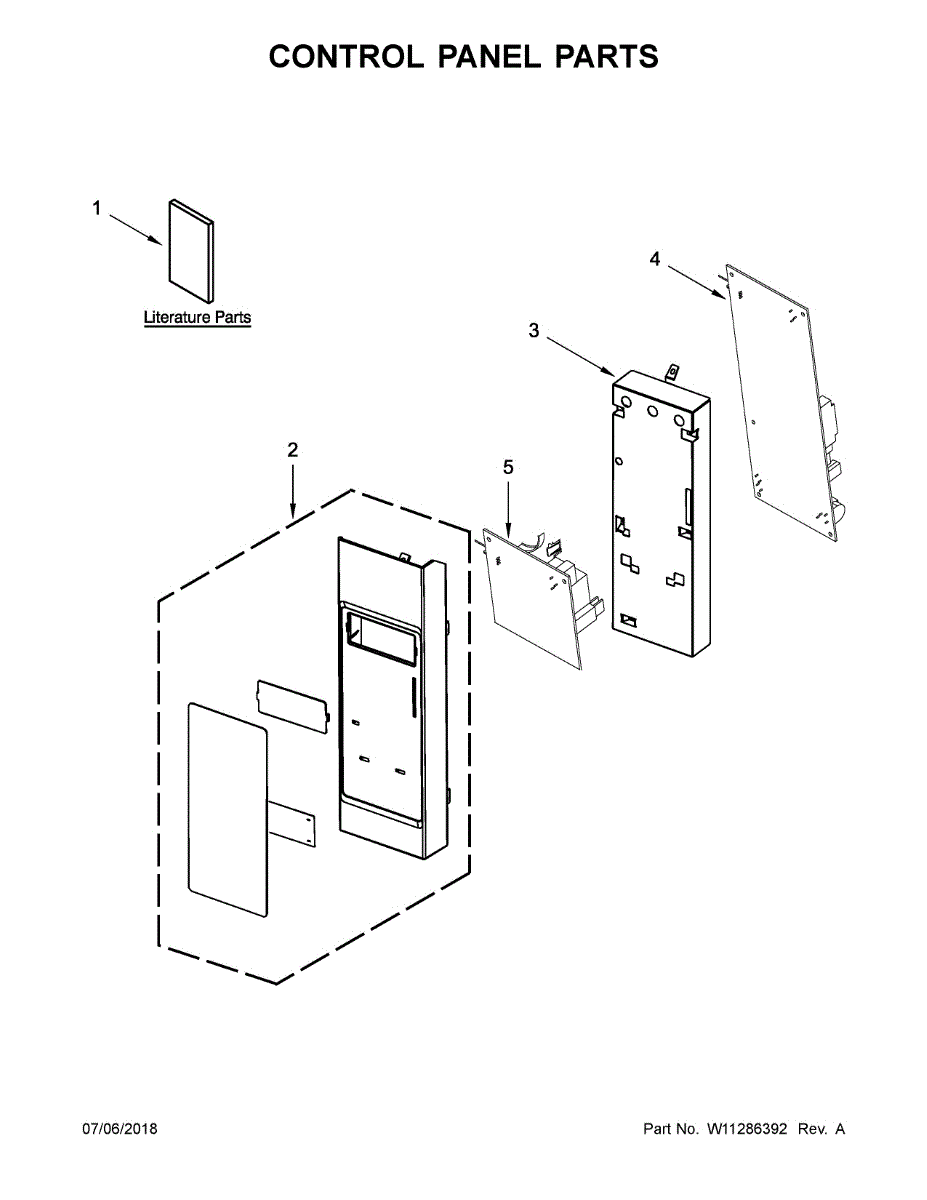

Parts for Kitchenaid KMHS120EBL7: Control Panel Parts

Color: Stainless

The Control Panel (Black) is an OEM replacement part for Whirlpool microwaves. This component serves as the interface for selecting cooking functions, setting cooking times, and adjusting power levels. The control panel includes the touchpad and electronic circuitry that communicate user commands to the microwave's main control board.

Causes of a faulty control panel can include wear from frequent use, electrical malfunctions, or physical damage such as cracks or unresponsive buttons. Over time, these issues can prevent the microwave from responding accurately to user inputs or functioning properly.

Symptoms of a bad control panel include:

• Unresponsive or erratic buttons
• Inability to start or stop the microwave
• Error codes displayed on the panel
• Flickering or dim display lights

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This electronic control panel is the user interface assembly that lets you operate and program the appliance. It provides tactile buttons and the display needed to select cycles and options, restoring normal control operation. What it does

• Replaces a worn, unresponsive, or damaged control panel to restore button and display function.
• Allows selection of cycles, options, and start/pause commands through the front-facing user controls.
• Addresses symptoms such as non-working buttons, blank or erratic display readout, or inability to change settings.
• Works with the main control board to transmit user inputs for proper appliance operation.

• One control panel assembly

• Disconnect power to the appliance before attempting any service to avoid shock or injury.
• Basic disassembly of the console may be required; retain all screws and hardware for reassembly.
• Handle the display and ribbon/connectors carefully to avoid damage; ensure connectors are fully seated before testing.

This control bracket secures the appliance control assembly so the console stays stable and aligned during normal use. It helps prevent loose or shifting controls that can cause buttons or knobs to bind. What it does:

• Provides a stable mounting point for the control board/console
• Keeps the control panel aligned to prevent rubbing or misalignment
• Helps reduce vibration-related loosening of control fasteners
• Can resolve symptoms like a loose or wobbly control panel or controls that move when pressed

• Disconnect power to the appliance before beginning any repair.
• Remove the console or access panel per the service guide to reach the bracket.
• Keep all fasteners and note their original positions for correct reassembly.
• Verify correct alignment and secure all screws before restoring power.

The Relay Control Board is an OEM replacement part for Whirlpool microwaves. This essential component is responsible for managing electrical power distribution to various elements of the microwave, ensuring that each function and feature operates effectively.

Causes for a malfunctioning Relay Control Board can include electrical surges, wear and tear over time, or issues with the soldered connections or circuits on the board.

Symptoms of a bad Relay Control Board in a microwave include:

• The microwave not starting or heating food
• Display panel issues, such as flickering or incorrect time display
• Buttons or controls not responding
• Error codes indicating electrical or power distribution issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This electronic control board replaces a failed main control to restore your appliance's control functions and display responses. It manages user inputs and timing so cycles run as intended and settings register correctly. What it does:

• Interprets control panel commands and sends signals to motors, valves, heaters, and other components
• Regulates cycle timing, start/stop functions and display feedback
• Commonly used to address unresponsive controls, incorrect cycle behavior, or intermittent operation
• Resolves error codes or display issues tied to a failed control board

• Disconnect power (and water if applicable) before service to avoid shock or injury
• Handle the board by the edges and avoid touching components to prevent static damage
• Reinstall original connectors and mounting hardware; ensure all connectors seat firmly
• Test operation before fully reassembling the appliance.
