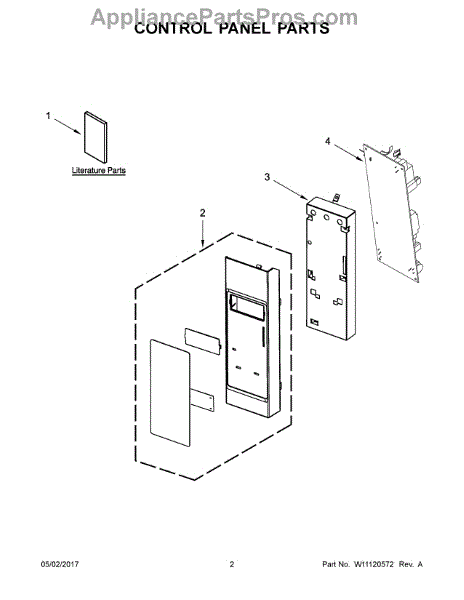

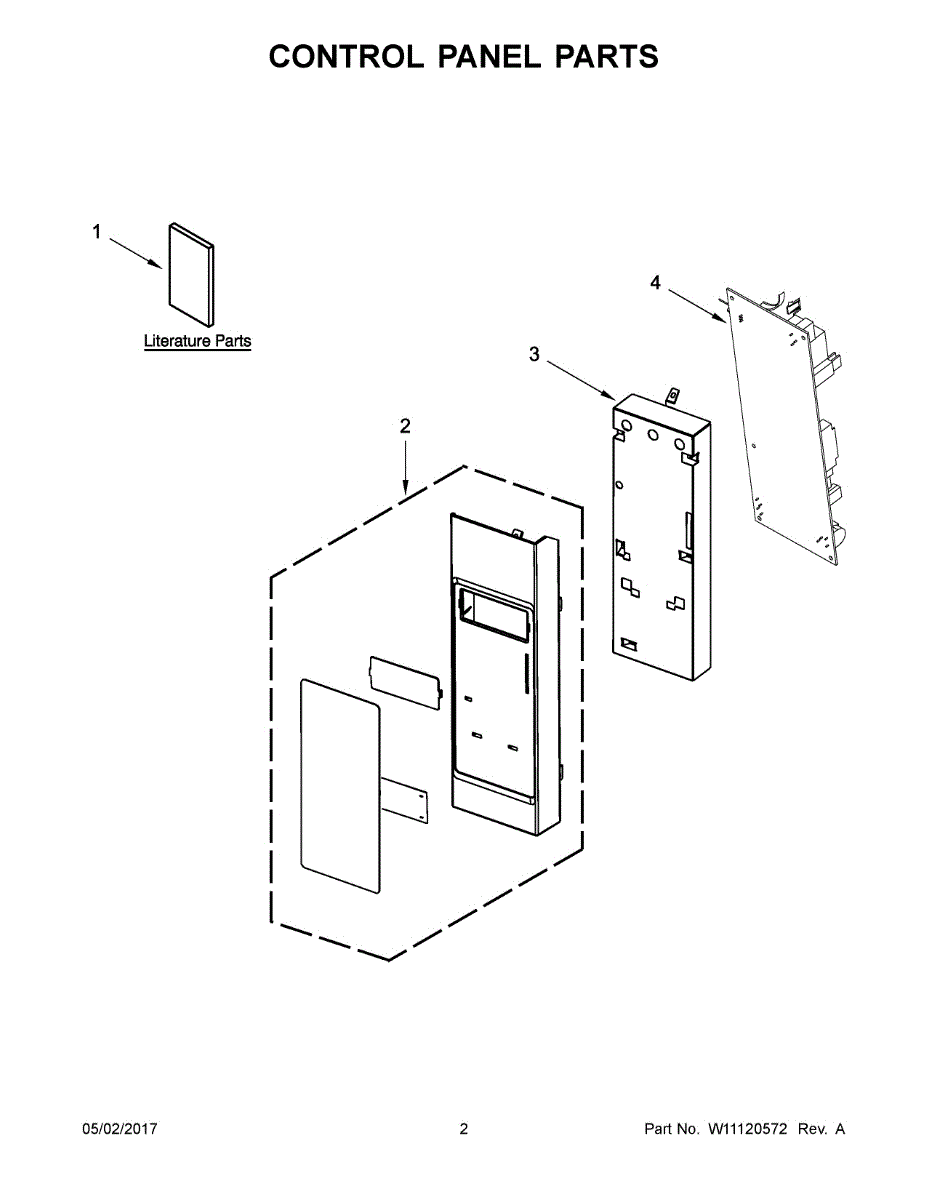

Parts for Kitchenaid KMHS120EBS1: 02 - Control Panel Parts

This control panel is the appliance's front user interface that houses the buttons, touchpads and display, letting you select cycles and view status. Replaces a cracked, faded or unresponsive panel to restore normal control and feedback. What it does:

• Provides the primary user controls and display for selecting cycles, temperature and timers.
• Routes button/touchpad inputs to the oven/range control board for operation.
• Faulty panels can cause unresponsive buttons, blank or flickering displays, or incorrect/changed settings.
• Restores visible indicators (LEDs/icons) so you can confirm program selections and status.

• Disconnect power at the breaker or unplug the appliance before beginning work.
• Handle the panel and any glass carefully to avoid cracking; use proper protective gear.
• Expect a few wire harness connectors; note connector positions before removal.
• If error codes persist after replacement, check the main control board and wiring harnesses.

This control bracket secures the appliance control assembly so the console stays stable and aligned during normal use. It helps prevent loose or shifting controls that can cause buttons or knobs to bind. What it does:

• Provides a stable mounting point for the control board/console
• Keeps the control panel aligned to prevent rubbing or misalignment
• Helps reduce vibration-related loosening of control fasteners
• Can resolve symptoms like a loose or wobbly control panel or controls that move when pressed

• Disconnect power to the appliance before beginning any repair.
• Remove the console or access panel per the service guide to reach the bracket.
• Keep all fasteners and note their original positions for correct reassembly.
• Verify correct alignment and secure all screws before restoring power.

The Control Board is an OEM part for Whirlpool microwaves. It controls the various functions and settings of the microwave, providing a reliable interface for users to select cooking options, adjust power levels, and set timers.

A bad control board can occur due to electrical issues, power surges, or component failure. If you notice symptoms such as unresponsive buttons, error codes on the display, or the microwave not heating properly, it may indicate a faulty or malfunctioning control board.

Symptoms of a bad control board include:

• Unresponsive buttons or touchpad
• Error codes displayed on the control panel
• Inconsistent heating or cooking results

Restore your microwave by replacing the faulty control board with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
