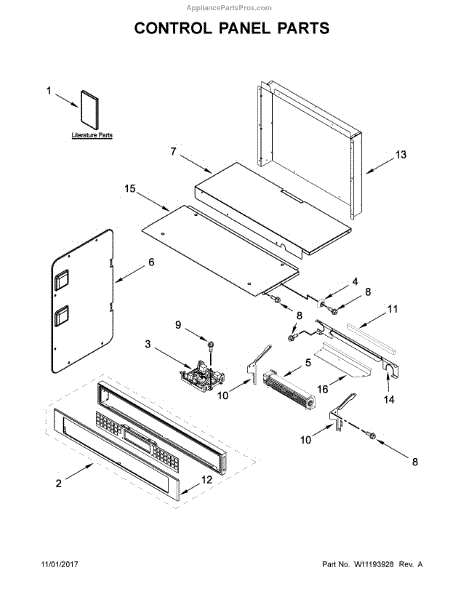

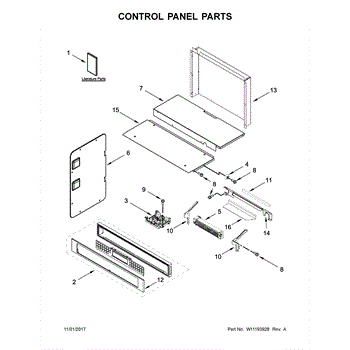

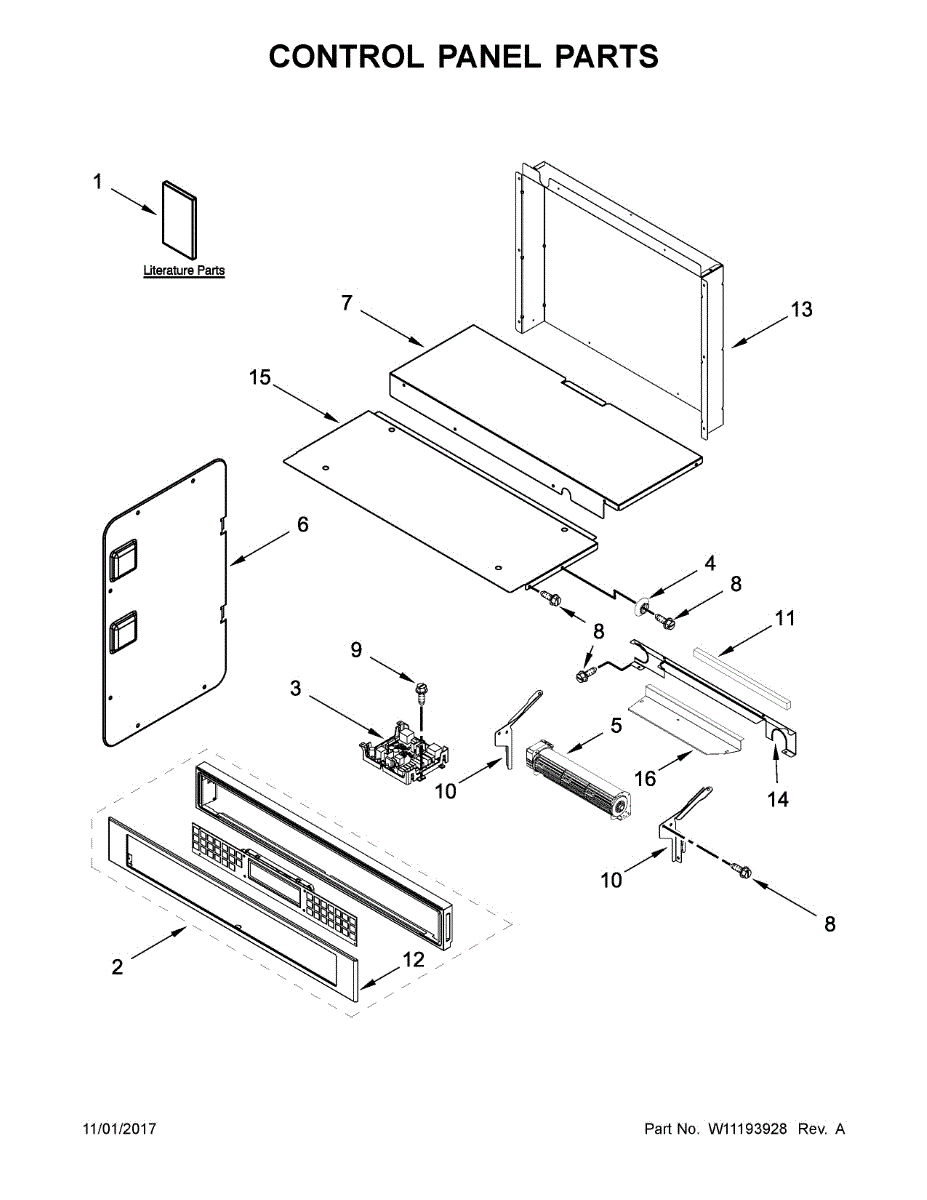

Parts for Kitchenaid KOCE500EBS06: Control Panel Parts

This membrane switch touch pad is the flat control interface used to send commands to the appliance's control board, restoring responsive button input and correct touch operation. It replaces a worn, cracked, or unresponsive control pad. What it does:

• Provides the user-facing buttons and contact points for the appliance control panel
• Sends touch/button signals to the control board so settings and cycles can be selected
• Commonly replaced when buttons stop responding, stick, or the pad is physically damaged
• Helps restore reliable control input and normal operation of the appliance user interface

• One membrane switch touch pad

• Disconnect power (unplug appliance or shut off circuit breaker) before starting any repair
• Access may require removal of the control panel or console; keep track of screws and clips
• Handle the membrane pad carefully—avoid creasing, bending, or contaminating contacts
• Reconnect the ribbon/connector fully and test functions before reassembling completely

This control panel is the user interface that lets you enter cook settings and control the oven. Replaces a worn or unresponsive touchpad so the oven responds correctly to button presses and displays settings clearly. What it does

• Registers user input and sends control signals to the oven's main control board
• Restores responsive touch/button operation when the panel is unresponsive or intermittently works
• Reestablishes visible keypad legend and status display when worn or damaged
• Stops erratic or unregistered commands caused by faulty front-panel electronics

• Disconnect power at the breaker before attempting any repair to avoid shock or injury
• Handle the panel carefully to avoid bending, scratching, or damaging the touchpad surface and ribbon cable
• Installation typically requires removing the console and unplugging/reconnecting internal wire harnesses—keep track of fasteners

This control panel is the user interface assembly that houses the touchpads, buttons, and display needed to select cycles and settings. Replacing a faulty panel restores reliable controls and readable status feedback. What it does:

• Provides the front-facing controls and display for selecting cycles, temperature, and options
• Sends user commands to the console so the appliance can start and run selected programs
• Works with the appliance's main control to relay status and error indicators

• One control panel assembly

• Disconnect power to the appliance before starting any work
• Save and transfer any reusable knobs, overlays, or mounting hardware unless a new one is specified as included
• Handle display lenses and electronic contacts carefully to avoid damage from static or scratches

The Control Board is an OEM part for Whirlpool microwave and wall oven combinations. It is responsible for managing and coordinating the various functions of the appliance, including temperature regulation, cooking modes, and timing.

Over time, exposure to high heat and regular usage can lead to malfunctions. Physical damage or power surges can also cause the control board to fail.

Symptoms of a bad Control Board include:

• Unresponsive touchpad or display
• Inconsistent temperature control
• Error codes displayed
• The appliance not turning on or off properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

Color: White

Color: Black Stainless

This control panel is the user-facing electronic interface that lets you operate your appliance's functions and settings. It replaces a damaged or unresponsive front control assembly so your appliance responds correctly to button presses and displays. What it does:

• Provides the touchpad/buttons and display used to select cycles, temperatures, and timers
• Relays user commands to the appliance's control board so functions start and stop as selected
• Common symptom fixes: unresponsive buttons, flickering or blank display, or intermittent command registration
• Restores normal control operation when the original panel is cracked, worn, or water-damaged

• One control panel assembly (user interface) as shown

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Handle the panel and display lens carefully to avoid scratches or damage
• Removal may require trim, bezels, or screws to be taken off; keep fasteners organized

Color: Stainless

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners

This fuse holder secures and connects a replaceable inline fuse to the appliance's electrical circuit, restoring overcurrent protection and helping prevent damage from short circuits or power surges. What it does:

• Holds and connects a replaceable fuse in the appliance's electrical circuit
• Completes the fuse's electrical connection so current flows through the protective element
• Replaces a cracked, burnt, or loose holder that causes intermittent power or blown fuses
• Helps restore proper overcurrent protection when the fuse itself is intact

• Disconnect power to the appliance before inspecting or replacing electrical parts.
• Inspect nearby wiring and connectors; replace any damaged components to ensure a secure connection.

This time-delay fuse protects the appliance's power circuit by opening when current exceeds a safe level while tolerating brief inrush current. Replacing a blown fuse can help restore power once the root cause is corrected. What it does:

• Protects the line and control circuits from shorts and overloads
• Time-delay design helps prevent nuisance opening during startup surges
• When open, the unit will be completely dead—no display, lights, or response
• Repeatedly opening usually indicates an unresolved electrical fault that needs diagnosis

• 1 time-delay fuse

• Disconnect power at the breaker before servicing; some appliances can retain dangerous high voltage
• Replace only with the same type and rating specified by the manufacturer
• Inspect the fuse holder and wiring for heat damage or loose connections before reassembly
• If the new fuse opens immediately, stop and diagnose the underlying cause; never bypass or upsize a fuse
