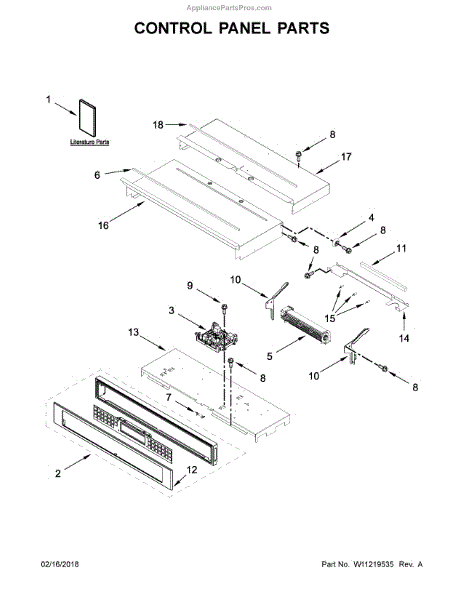

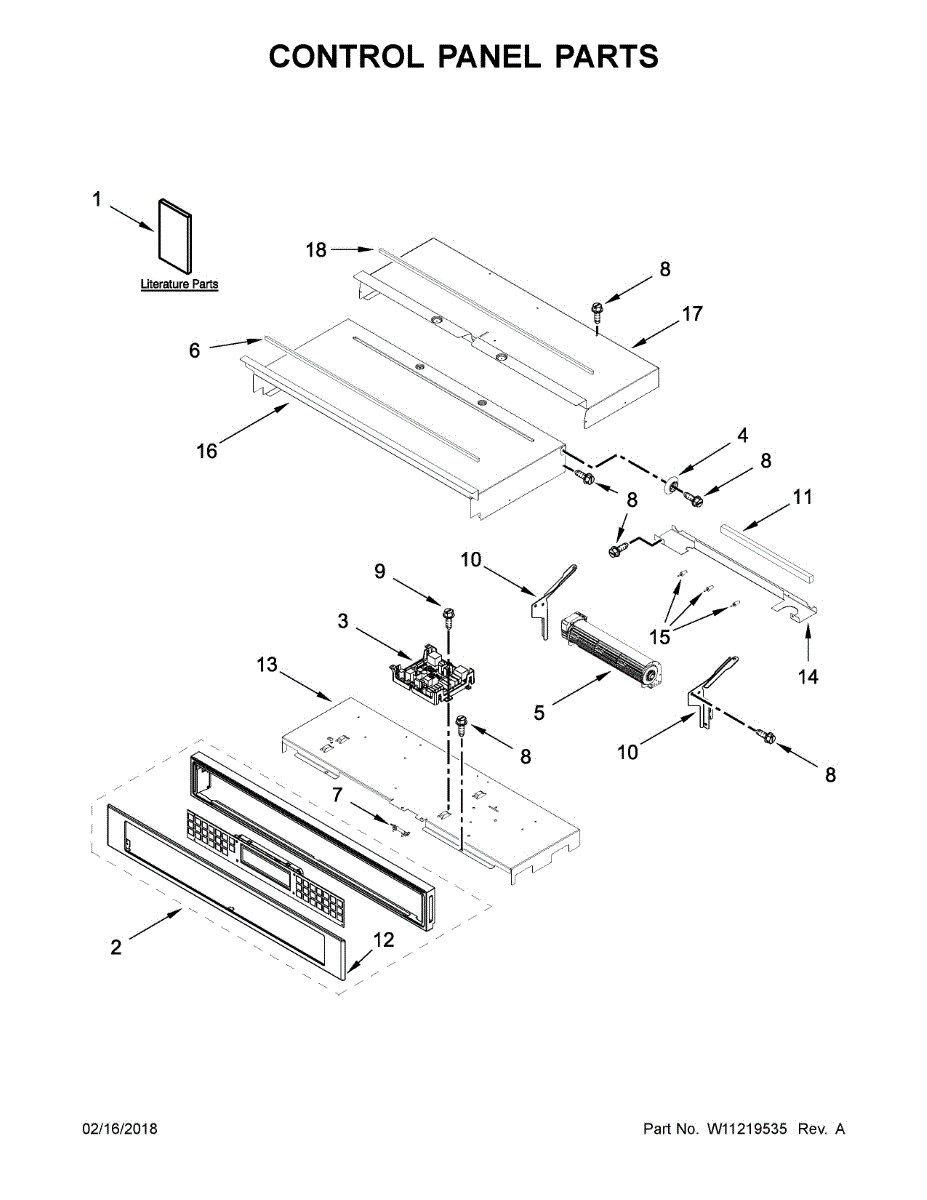

Parts for Kitchenaid KODT100ESS02: Control Panel Parts

Wall oven buttons not responding? This membrane switch touch pad restores reliable touch input for bake, broil, timer and other control functions.

Fixes unresponsive controls, cycle timing issues, and start-up failures in wall ovens. This main control board manages program logic and power distribution.

Fix a wall oven that won't heat or respond to controls. This control board manages temperature, cooking modes, and timing. Moderate DIY repair.

Oven won't heat or stops working? The thermal fuse cuts power when temperatures get too high. Test with multimeter for continuity to diagnose the issue.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

Stainless steel control panel overlay for built-in ovens and microwaves. Replaces cracked, scratched, or discolored overlays to restore appearance.

Ground wiring harness for wall ovens and ranges. Connects electrical components to ground for safety. Replace if wires are frayed, damaged, or burnt.

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners

Mounting hardware kit for wall ovens and oven-microwave combos. Includes screws, brackets, and fasteners for secure installation. Replace missing or damaged hardware during reinstallation.
