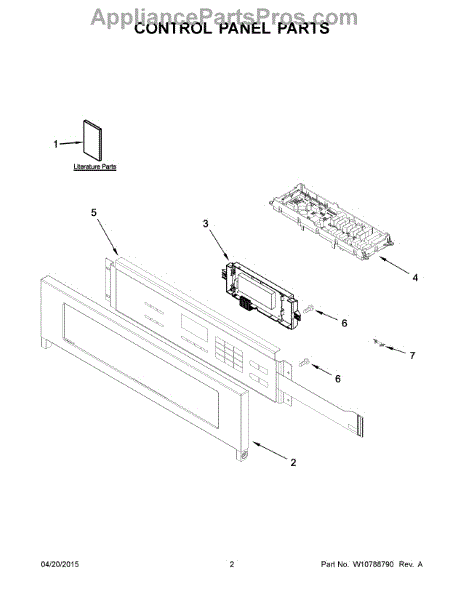

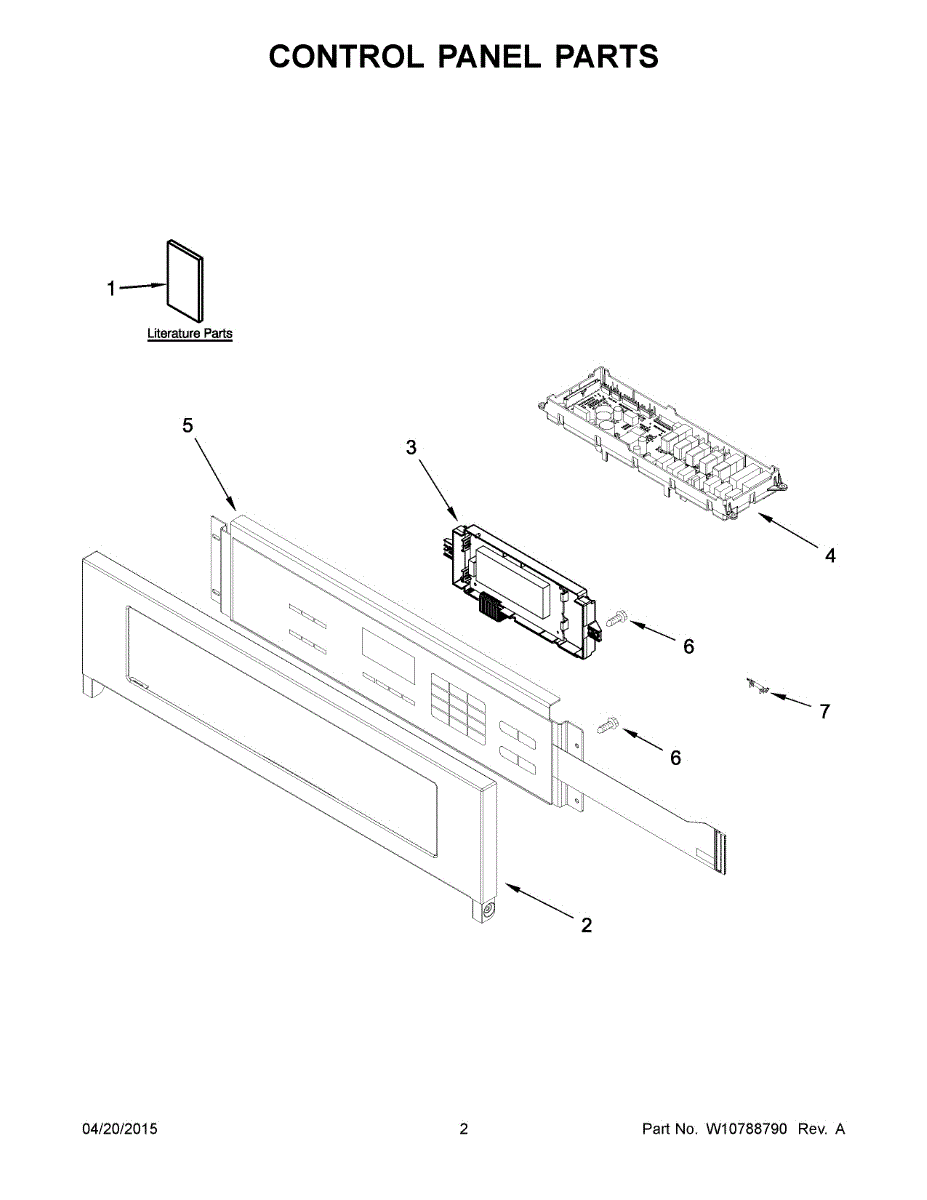

Parts for Kitchenaid KOSC504ESS00: 02 - Control Panel Parts

This control panel is the user-facing console assembly that holds the touchpads, display, and main controls so you can operate the oven or range. It restores normal control access and readable display feedback. What it does

• Houses the control buttons/touchpads and display used to set bake, broil, timers, and other functions
• Replaces a cracked, faded, or unresponsive console surface or damaged button area
• Commonly used when buttons or touch controls fail to register, display is dim/blank, or settings won't accept
• Works with the range/oven's electronic control to send user commands for cooking functions

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the display and touchpad area carefully to avoid scratching or damaging the finish
• Some installations require removing the oven/range backguard or control housing and unplugging a ribbon or wire harness

Screw for side trim.

This safety thermal fuse protects your appliance by opening the circuit if internal temperatures climb too high, helping prevent overheating damage and restoring safe operation when replaced.

• Monitors temperature and cuts power if an overheat condition occurs
• Common failure symptoms: appliance won't start, no power to key components, intermittent shutoff after heating, or blown/failed continuity on the fuse
• Helps safeguard wiring and control components from heat-related failures

• Disconnect power and shut off utilities before servicing
• Access location; note wire orientation for reassembly
• Replace if open/no continuity
• Investigate and correct the root cause of overheating (vents, fans, wiring) before restoring power

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
