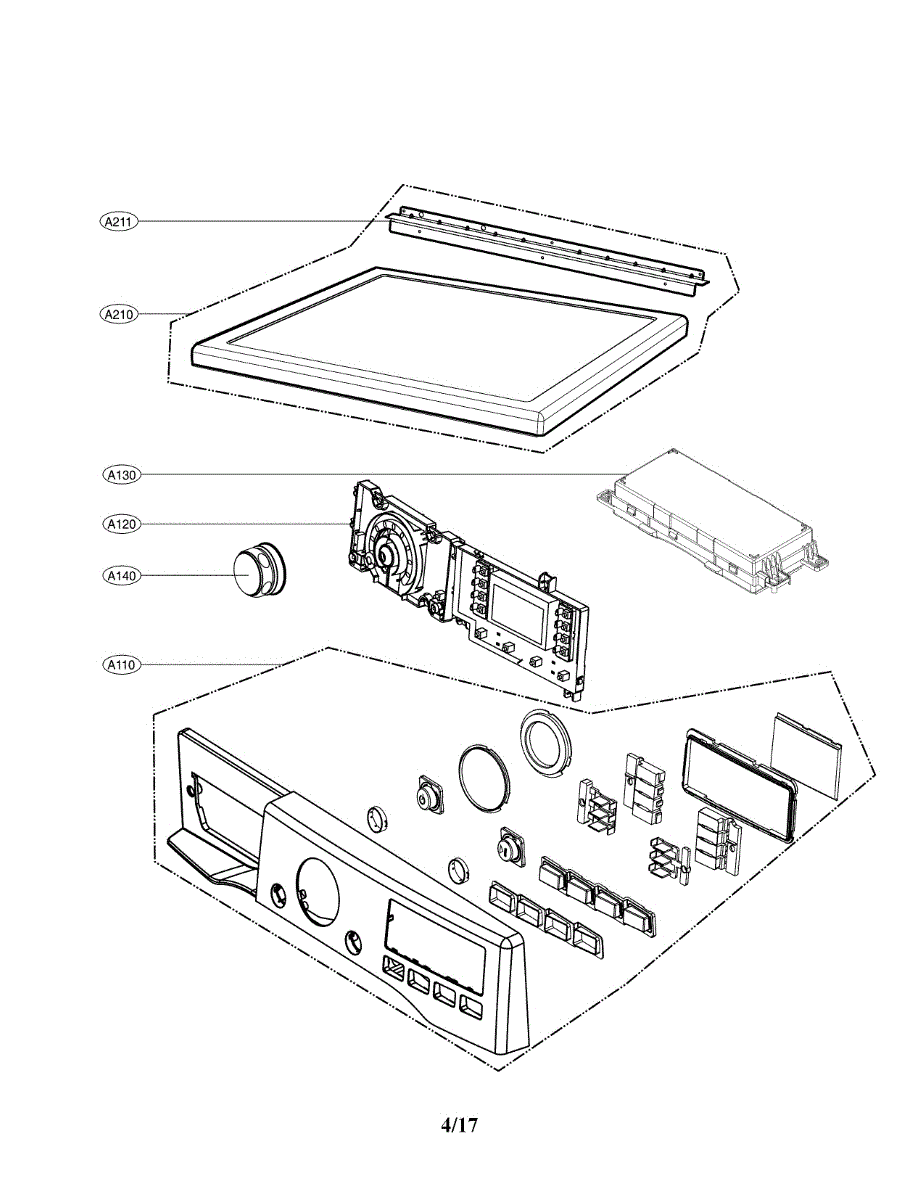

Parts for Lg DLEX3570V: Control Panel Parts

Control panel assembly that houses the appliance's user interface, buttons and display so you can select cycles and read status. Replaces cracked, faded or unresponsive control surfaces to restore normal operation. What it does:

• Provides the front user interface and display for selecting cycles, options and viewing status.
• Transmits button/touch inputs to the main control board for proper operation.
• Restores visible feedback when LEDs or display segments are dim, missing, or damaged.
• Commonly replaced for cracked panels, worn buttons, or intermittent/unresponsive controls.

• Disconnect power before starting — always work on an unplugged appliance.
• Handle the panel and display carefully to avoid cracking or scratching; keep small screws and clips organized.
• Take care when disconnecting/reconnecting ribbon cables and wire harnesses; ensure connectors are fully seated before testing.
• Test function after reconnecting power and before final reassembly.

This is the main electronic control board that manages and coordinates appliance operations. It processes input from sensors and the user interface, then drives relays and circuits so the unit powers on, starts, and runs as intended. What it does:

• Orchestrates appliance functions and timing based on programmed logic
• Sends control signals to components such as motors, valves, fans, heaters, and lights
• Interfaces with sensors and the display/keypad for accurate feedback and status
• Common failure signs include no power, unresponsive controls, failure to start, intermittent shutdowns, or error codes

• 1 main control board

• Disconnect power before servicing; observe ESD precautions and handle the board by its edges
• Photograph wiring and move connectors one at a time to the new board
• Transfer any jumpers, brackets, or housing from the original board if required
• After installation, perform any model-specific initialization or diagnostics per the service instructions

This replacement knob assembly restores tactile control for a range or cooktop control. It provides a secure grip and clear detent positions so you can set burner or surface settings reliably. What it does:

• Replaces a worn, cracked, or missing control knob to regain safe, predictable control
• Engages the shaft and detents so settings stay put during use
• Helps eliminate slipping or difficulty turning the control
• Matches original fit and function for direct replacement

• One knob assembly as shown

• Turn power/gas to the appliance off before servicing; follow appliance manufacturer safety instructions
• Remove the old knob by pulling straight off the control shaft; press the new knob onto the shaft until it seats
• Wear work gloves to protect hands from sharp edges during access

This top plate assembly replaces the upper outer cover on compatible LG appliances to restore a finished appearance and protect internal components from debris. It's a direct-fit exterior panel designed for OEM replacement. What it does:

• Covers and protects internal components at the top of the appliance
• Restores cosmetic appearance by replacing dented, warped, or scratched panels
• Helps prevent dust, grease, and small objects from entering internal areas
• Supports adjacent trim and mounting points for secure assembly

• One top plate assembly

• Disconnect power (unplug appliance or switch off breaker) before starting any repair
• Handle the panel carefully to avoid scratching painted surfaces; use soft padding when setting it down
• Installation may require removal of adjacent trim; keep screws and fasteners organized
