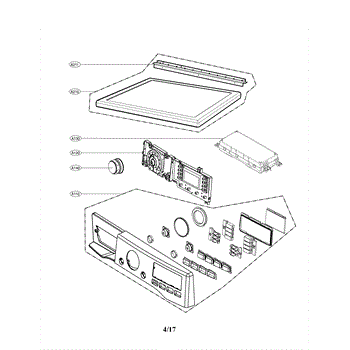

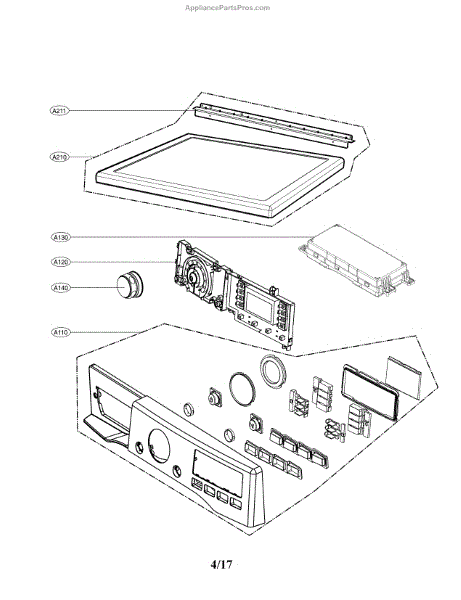

Parts for Lg DLEX3570W/00: Control Panel Parts

This control panel assembly replaces the appliance's electronic user interface, restoring easy-to-use controls and readable status feedback. It provides the buttons, touchpad/display area, and mounting points needed for normal operation. What it does:

• Houses the push buttons/touch controls and display used to select cycles and settings.
• Sends user inputs to the control board so the appliance can start, stop, and change modes.
• Commonly replaces panels that are cracked, unresponsive, or showing incorrect/display errors.
• Helps resolve symptoms such as non-working buttons, erratic control behavior, or blank/garbled readouts.

• Disconnect power (and gas or water, if applicable) before starting any repair.
• Installation typically requires basic hand tools; handle the display and ribbon cables carefully to avoid damage.
• Reuse existing mounting hardware only if undamaged; follow OEM service literature for routing cables and connectors.

This display power control board assembly powers and controls the appliance's front display and user-interface functions, restoring visible status indicators and responsive touch/buttons for normal operation. What it does

• Supplies power to the display and backlight so icons, lights, and readouts are visible
• Routes user inputs from touchpads or buttons to the main control system for proper response
• Re-establishes communication between display and main control when failures cause unresponsive controls
• Can resolve symptoms such as a blank or flickering display, unlit indicators, or unresponsive front-panel controls

• One display power control board assembly

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Handle the board carefully and avoid electrostatic discharge (ESD); use an ESD strap if available
• Secure connectors and mounting hardware properly

This is the main electronic control board that manages and coordinates appliance operations. It processes input from sensors and the user interface, then drives relays and circuits so the unit powers on, starts, and runs as intended. What it does:

• Orchestrates appliance functions and timing based on programmed logic
• Sends control signals to components such as motors, valves, fans, heaters, and lights
• Interfaces with sensors and the display/keypad for accurate feedback and status
• Common failure signs include no power, unresponsive controls, failure to start, intermittent shutdowns, or error codes

• 1 main control board

• Disconnect power before servicing; observe ESD precautions and handle the board by its edges
• Photograph wiring and move connectors one at a time to the new board
• Transfer any jumpers, brackets, or housing from the original board if required
• After installation, perform any model-specific initialization or diagnostics per the service instructions

This replacement knob assembly restores tactile control for a range or cooktop control. It provides a secure grip and clear detent positions so you can set burner or surface settings reliably. What it does:

• Replaces a worn, cracked, or missing control knob to regain safe, predictable control
• Engages the shaft and detents so settings stay put during use
• Helps eliminate slipping or difficulty turning the control
• Matches original fit and function for direct replacement

• One knob assembly as shown

• Turn power/gas to the appliance off before servicing; follow appliance manufacturer safety instructions
• Remove the old knob by pulling straight off the control shaft; press the new knob onto the shaft until it seats
• Wear work gloves to protect hands from sharp edges during access
