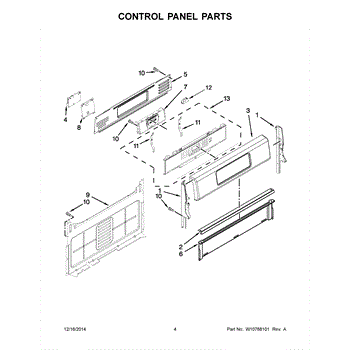

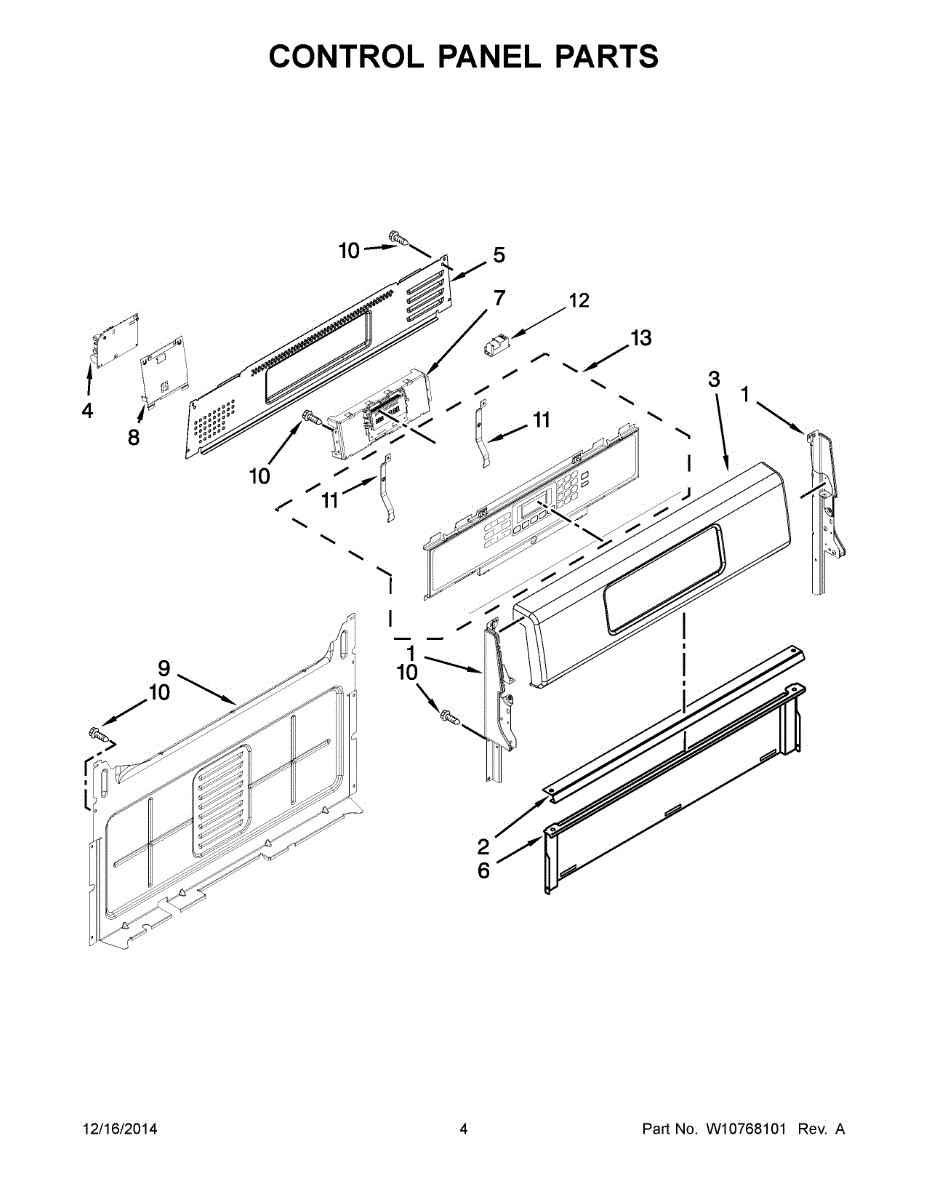

Parts for Whirlpool KGRS303BBL2: 03 - Control Panel Parts

Color: White  Note: Left side endcap

Black left side end cap panel for electric and gas ranges. Replaces cracked, broken, or damaged side trim pieces. Installs on left exterior edge.

Right side end cap panel for ranges in black. Replaces cracked, broken, or missing end panel. Covers and protects the exterior side of your range.

White plastic end cap that covers the right side panel edge of your range. Replaces cracked, broken, or missing endcaps to restore a finished appearance.

Fix burners that won't ignite, slow clicking, or repeated sparking. This spark module controls ignition for gas range surface burners and oven.

Rear cover panel for gas ranges. Replaces cracked, damaged, or missing covers on the back of your range. Restores appearance and protects components.

Metal heat shield that protects range components from direct heat damage. Installs near oven cavity. Replace when original is warped, cracked, or missing.

If your gas range won't heat, displays error codes, or has unresponsive buttons, the electronic control board may have failed. Moderate DIY repair.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

Range control panel not responding or buttons stopped working? This membrane switch touch pad restores your gas range's electronic controls. Moderate 1-2 hour repair.
