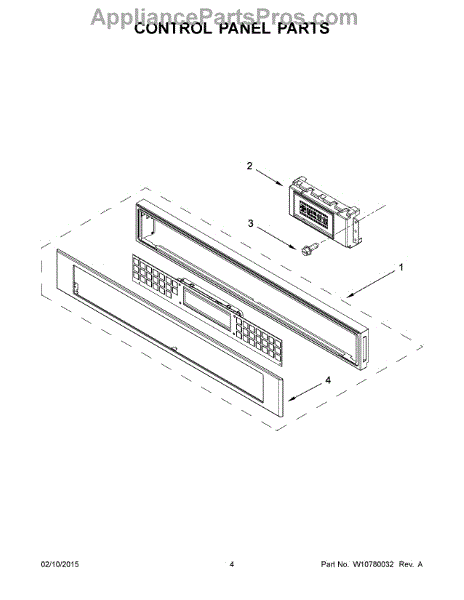

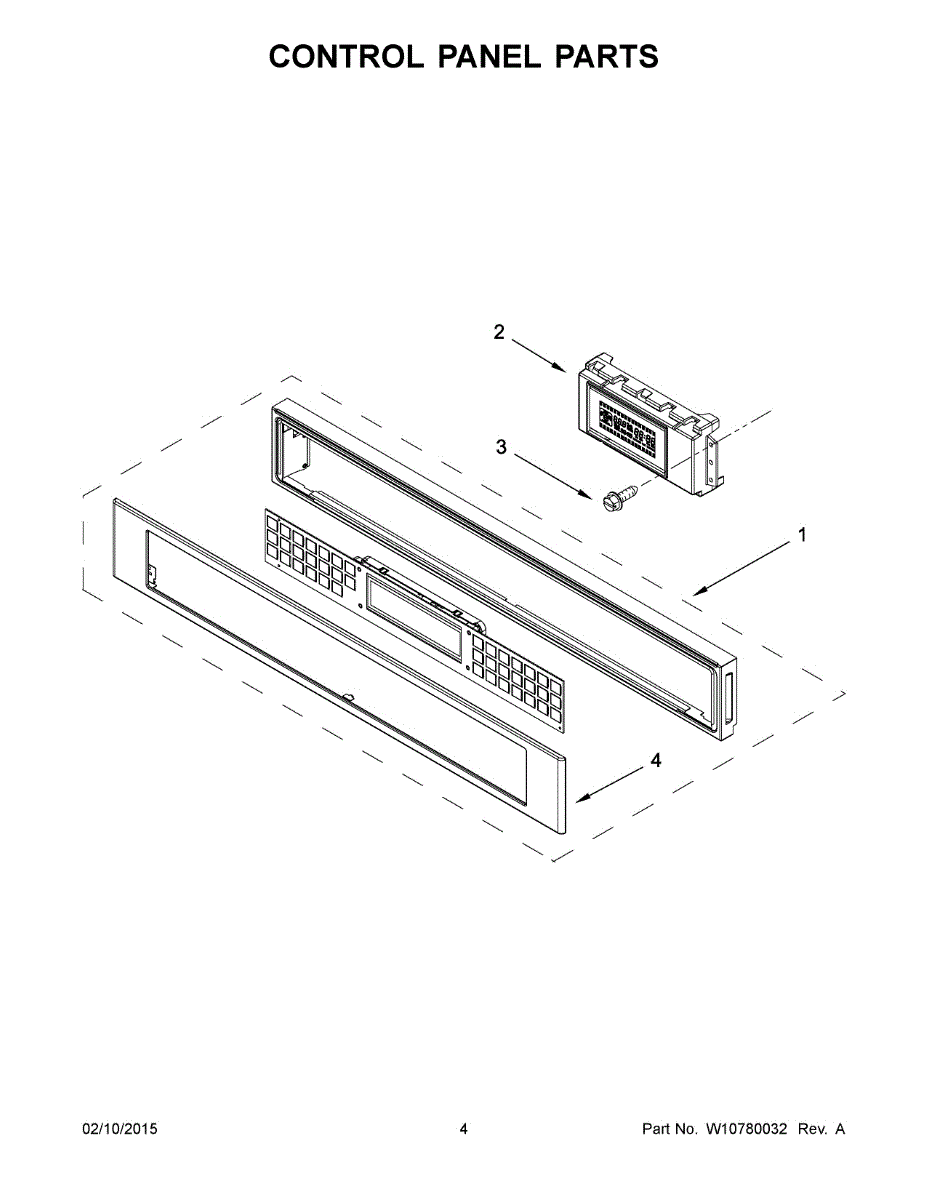

Parts for Whirlpool KMBP100ESS00: 03 - Control Panel Parts

This electronic control board regulates and coordinates the appliance's electronic functions, allowing the control panel and timed cycles to operate correctly. Replacing a faulty board restores responsive controls and proper cycle operation. What it does:

• Receives input from the control panel and sends commands to motors, valves, heaters, and displays
• Can stop controls from responding or prevent cycles from starting when failed
• May cause a blank or unresponsive display, error codes, or incorrect cycle behavior
• Restores normal control logic and communication between components when working

• Disconnect power to the appliance before replacing the board to avoid shock or damage
• Handle the board by its edges and avoid touching contacts or components
• Verify mounting orientation and connector seating; secure all fasteners and wire harnesses

Screw for side trim.

Color: Stainless
