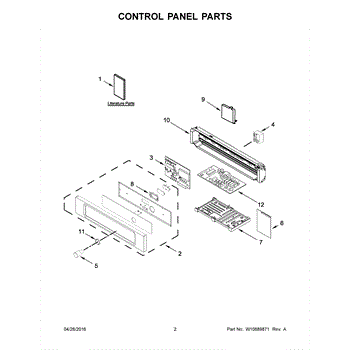

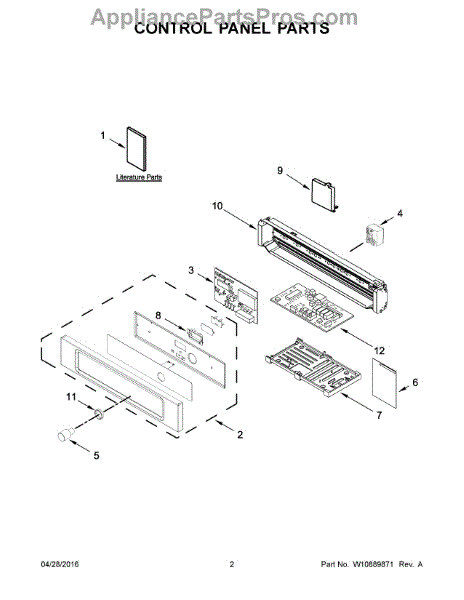

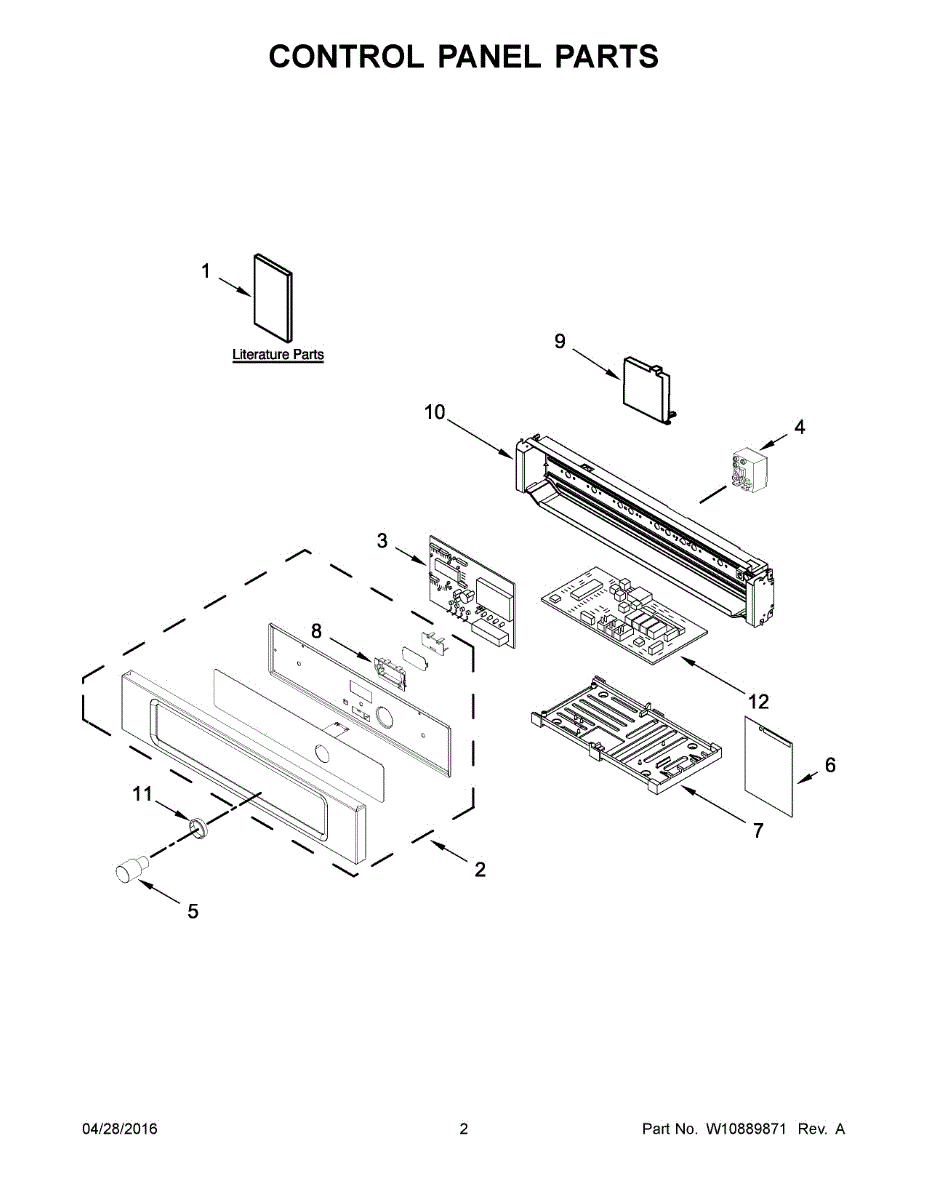

Parts for Whirlpool KMBS104EBL02: 02 - Control Panel Parts

This replacement control panel is the appliance's front console that holds the user controls and display, restoring a solid interface for selecting cycles and viewing settings. Use it to replace a cracked, faded, or unresponsive control console. What it does:

• Houses the touchpad/buttons and display used to set and start cycles
• Restores visible and tactile controls when the original panel is cracked, scratched, or worn
• Can resolve issues with unresponsive or sticky buttons caused by a damaged console
• Replaces a cosmetically damaged or faded front control surface

• Disconnect power to the appliance before starting any repair
• Handle the panel carefully to avoid scratching or damaging the display surface
• Some disassembly of the top/front may be required; keep fasteners and connectors organized

The Control Panel is an OEM replacement part for Whirlpool microwaves. It provides a user-friendly interface for controlling various functions. It features intuitive buttons and a clear display, allowing you to easily set cooking times, adjust power levels, and access other essential functions.

Causes of a bad control panel include:

• Wear and tear over time
• Accidental impacts or mishandling
• Electrical issues or component failure

A damaged or malfunctioning control panel can occur due to regular wear and tear, accidental impacts, or electrical issues. If you notice symptoms such as unresponsive buttons, a non-functioning display, or error codes appearing on the panel, it may be time to replace the control panel.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Electronic Control Board is an OEM replacement part for GE microwave ovens. It is the central component that controls and regulates the various functions and operations of the microwave. This board houses the microprocessor, circuitry, and electronic components responsible for interpreting user inputs, setting cooking times and power levels, and managing the overall functionality of the microwave.

Symptoms of a bad Electronic Control Board include:

• Microwave not powering on or displaying any information
• Erratic behavior or unresponsive controls
• Error codes or error messages displayed
• Failure to start or complete cooking cycles

Causes of a bad Electronic Control Board can include electrical surges, power fluctuations, overheating, or general wear and tear over time. Exposure to moisture or other environmental factors can also lead to component failure within the control board.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore microwave models.

The Electronic Control is an OEM part for Whirlpool microwaves. Housed discreetly within the control panel cavity, it powers touch buttons and display screens enabling customized cooking functions, preset modes and time/power settings.

Symptoms of a faulty electronic control include:

• Nonresponsive buttons that do not initiate cooking presets
• Blank or ghosted screens that do not communicate settings
• Strange noises emitting from control area
• Inability to toggle between timers, power levels and options

Causes of control failure typically involve residual water accumulation over repeated use, short-circuiting delicate circuit pathways, and microprocessors. Physical impacts may also fracture sensitive circuit boards.

Compatible models also include those by Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore.
