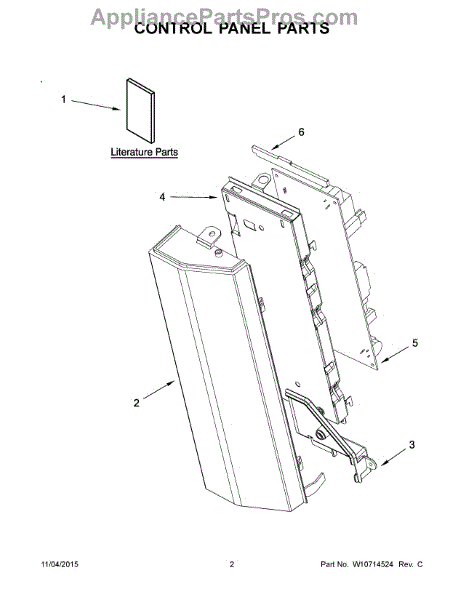

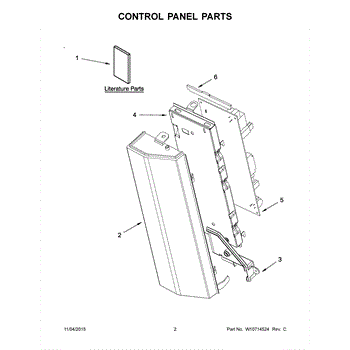

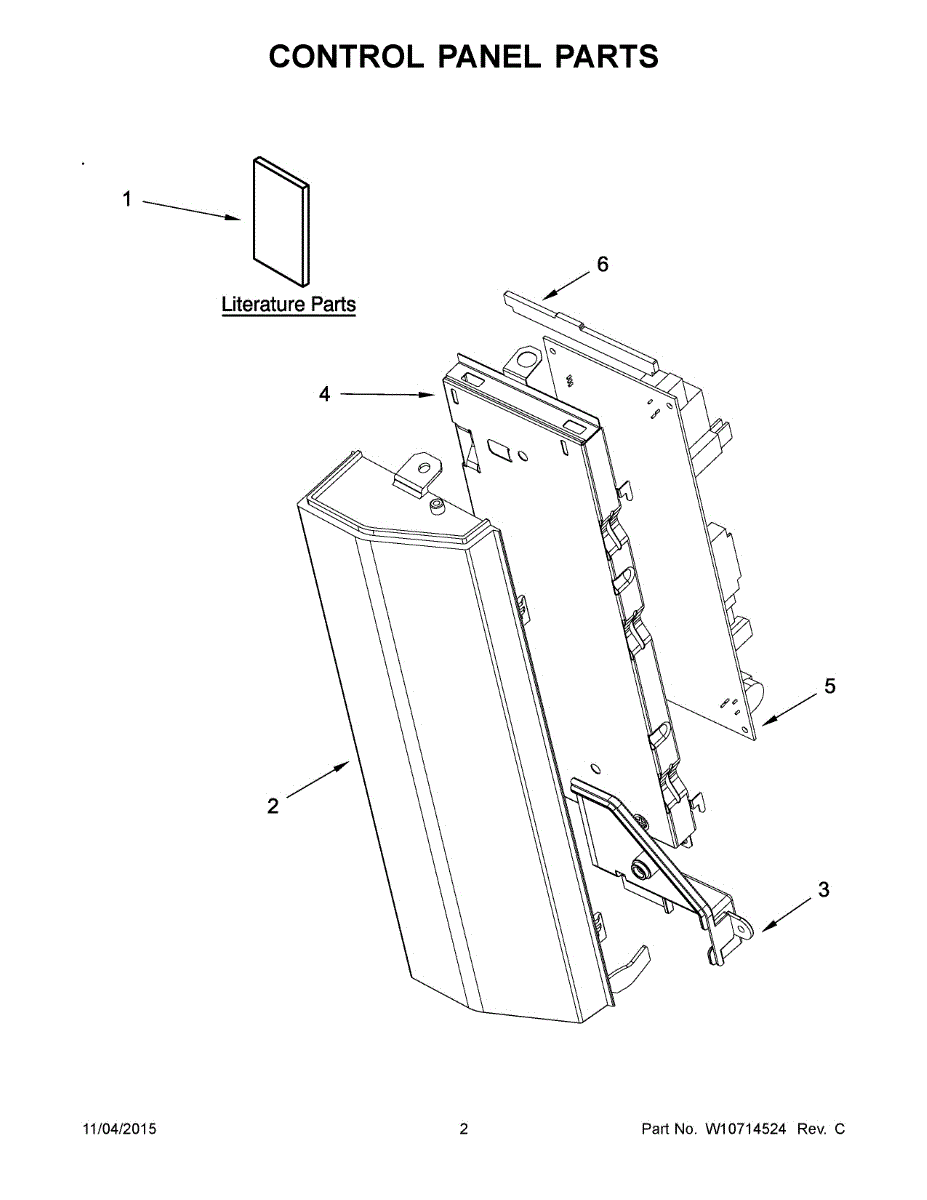

Parts for Whirlpool KMHC319EBL0: 02 - Control Panel Parts

This control panel is the exterior user interface that holds the selector buttons and display, restoring the appliance's normal control access and appearance. It's a direct-fit replacement for worn, cracked, or damaged panels. What it does:

• Provides the front housing for touchpads, knobs, and display components so you can select cycles and settings
• Restores damaged or cracked panel surfaces that interfere with normal operation or look
• Helps ensure buttons and indicators align correctly with underlying switches and electronics
• Commonly replaced when buttons stick, the face is cosmetically damaged, or the panel is broken

• One control panel — replaces the outer housing only

• Disconnect power (or unplug) before starting any repair to avoid shock or injury
• Remove trim screws and any connected bezels to access and remove the old panel; handle gently to avoid damaging attached wiring
• This part covers the outer console; retain and reuse any internal switches, overlays, or electronics unless they are damaged and replaced separately

This replacement panel restores the original look and fit of your appliance. It serves as the protective exterior cover and mounting surface for related controls or trim, helping keep internal components secure and out of sight.

• Provides the exterior cover for a specific appliance section
• Protects internal wiring and components from dust and accidental contact
• Offers mounting points for controls, display, or decorative trim
• Replace if cracked, warped, loose, or missing/broken tabs

• Disconnect power before servicing and allow any hot surfaces to cool
• Keep track of fasteners; support attached wiring/controls while transferring parts
• Move electrical connectors one at a time; avoid pulling on wires
• Do not overtighten screws to prevent cracking or distortion

This electronic control board manages the appliance's main functions and timing, restoring responsive controls and cycle operation when the original board fails. It replaces a faulty control to help the appliance run intended programs. What it does:

• Receives user inputs and sends signals to start and stop cycles
• Controls timings, temperature settings, and motor/valve activation
• Resolves symptoms like unresponsive buttons, error codes, or no cycle starts
• Re-establishes communication between display/interface and mechanical components

• Disconnect power before service to avoid electric shock
• Handle the board by its edges and avoid touching components
• Transfer any required wires, mounts, or overlays exactly as removed
