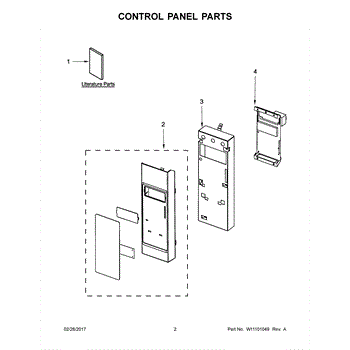

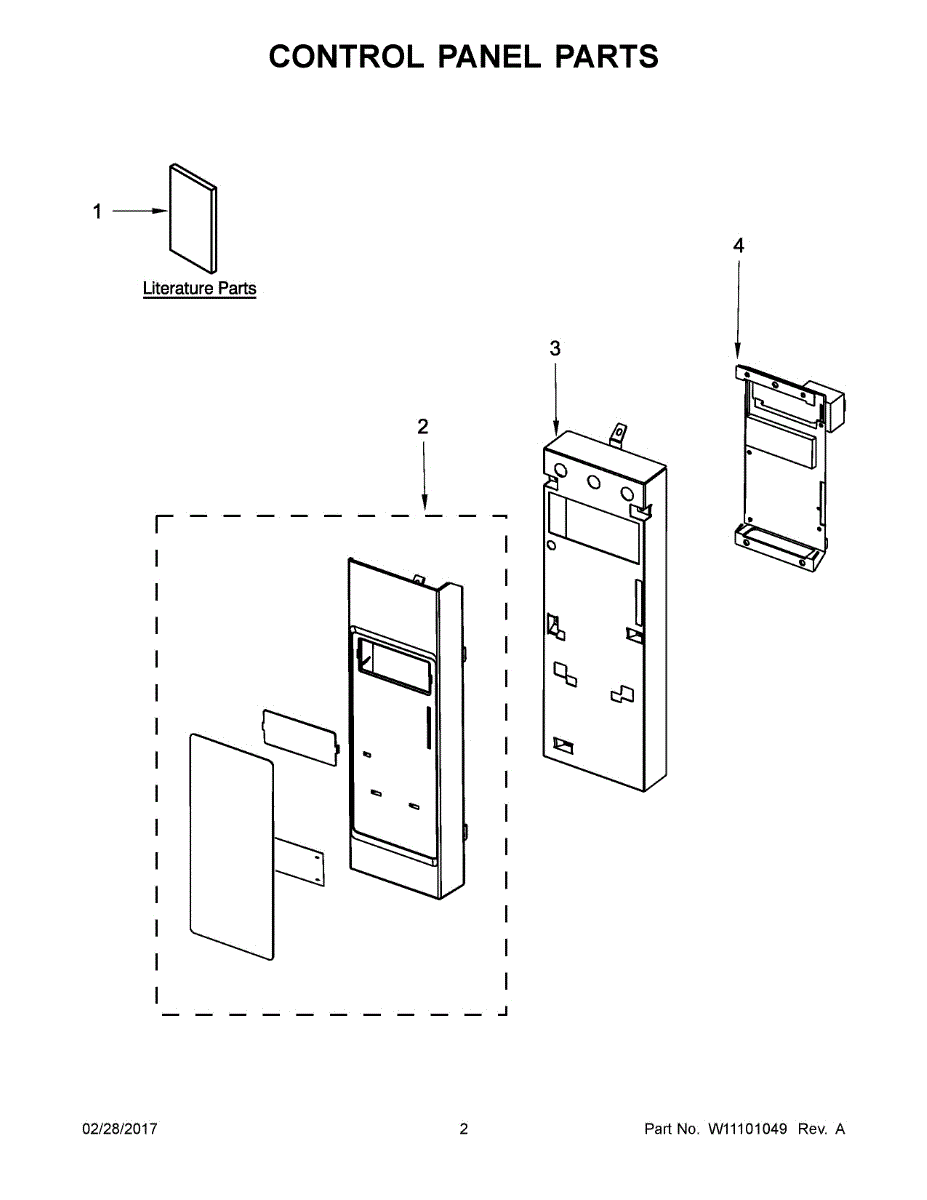

Parts for Whirlpool UMV1160CW3: 02 - Control Panel Parts

This control panel is the exterior console that houses the user controls and display, restoring clean, responsive operation and readable indicators for the appliance. It provides the interface you use to select cycles, settings, and start functions. What it does:

• Replaces a worn, cracked, or unresponsive console so buttons and displays work reliably
• Restores visible cycle/status indicators and button labels for normal operation
• Helps resolve symptoms like unrecognized button presses, missing display segments, or cosmetic damage to the front control area
• Works with the appliance's existing electronics and mounting hardware when the correct OEM part is used

• One control panel/console

• Refer to the wiring diagram and disconnect power before starting
• Some models require removal of the outer cabinet or console bezel to access mounting screws and connectors
• Handle the panel carefully to avoid scratching the finish or damaging attached wiring and connectors
• If the panel connects to a separate electronic control board, verify connectors seat fully and clips engage during reassembly
