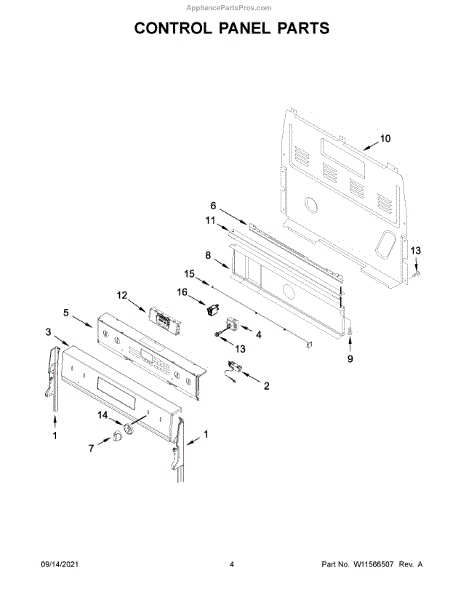

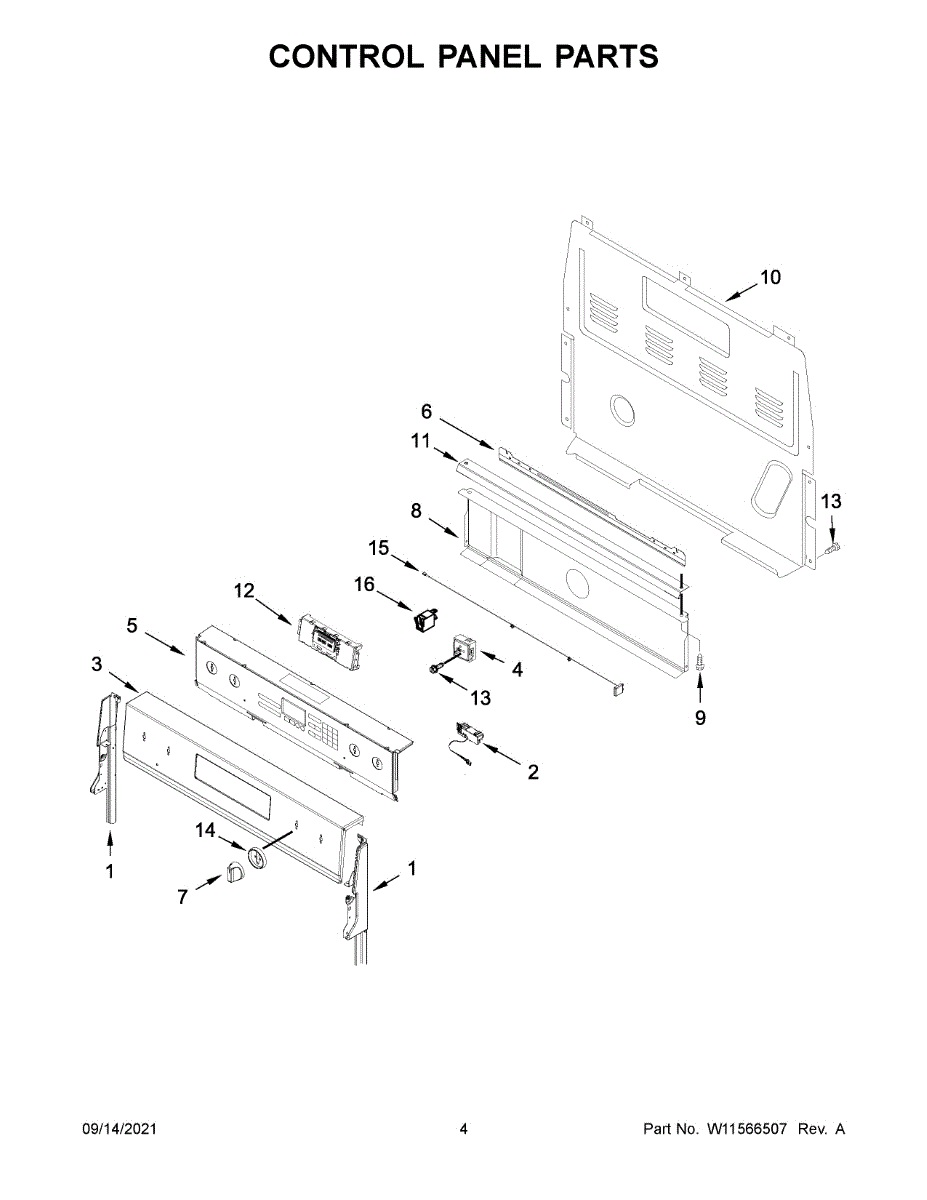

Parts for Whirlpool WFE975H0HV2: Control Panel Parts

This electronic control board replaces a failed console control on compatible electric ranges and ovens, restoring timed cooking functions and user interface responsiveness for accurate cycle control. What it does:

• Regulates oven temperature, timers and display based on user inputs
• Controls bake, broil and preheat sequences for consistent cooking
• Restores digital clock, touchpad/knob input response and on/off functions
• Helps address symptoms like unresponsive controls, error codes, or no display

• Disconnect power at the breaker before accessing the console to avoid shock
• Handle the board by its edges and avoid touching components or connector pins
• Verify wire harness and connector seating during reassembly; match connector shapes

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Infinite Switch is an OEM replacement part for Whirlpool ranges. It is responsible for regulating the power and heat output of the surface elements on your range, allowing you to adjust the temperature for cooking.

A bad surface element control infinite switch can occur due to wear and tear, electrical issues, or damage to the switch mechanism. If you notice symptoms such as inability to adjust the temperature, uneven heating, or the surface element not turning on or off, it may indicate a faulty infinite switch.

Symptoms of a bad infinite switch include:

• Inability to adjust the temperature
• Uneven heating
• Surface element not turning on or off

Restore your range by replacing the faulty or damaged surface element control infinite switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Infinite Switch is an OEM part for Whirlpool ranges. It controls the heat levels of the elements on your cooktop, allowing you to adjust the temperature for precise cooking.

Causes of a bad infinite switch can include electrical malfunctions, wear and tear from frequent use, or physical damage due to impacts or spills.

Symptoms of a bad infinite switch include:

• Burners not heating up or heating inconsistently
• Burners stuck on a single heat setting
• No response when adjusting the heat level
• Sparks or electrical odors coming from the control area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges. It contains internal switches that control cooking functions and safety features.

Causes of a bad switch set can be related to prolonged high-heat exposure, moisture, or accidental impact damage. Over many uses, normal component wear also occurs.

Symptoms of a bad switch include:

• Inoperable or unresponsive dials/buttons
• Failure to ignite burners or maintain set temperatures
• Stovetop elements do not turn off properly
• Oven will not initiate bake or broil cycles

This switch replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

This control panel is the user interface assembly that lets you select oven cycles and change settings, restoring responsive button and display control for your appliance. It replaces a worn, cracked, or unresponsive front control surface. What it does

• Provides the push-button controls and display area used to start, stop, and program cycles
• Restores responsive buttons and readable display when the original panel is unresponsive or damaged
• Stops erratic behavior caused by a faulty front control interface
• Helps return full user control of oven or range functions tied to the front controls

• One control panel assembly

• Always disconnect power to the appliance before attempting service to avoid shock or injury
• Handle cosmetic trim and display lens carefully to prevent scratches or cracking
• Keep all mounting hardware; use original screws and clips to ensure proper fit

The Surface Element Knob is an OEM part compatible with Whirlpool ranges. It is designed to provide a secure and convenient grip for controlling the surface elements on your range.

A bad surface element knob can occur due to regular use, accidental damage, or wear and tear. If you notice issues such as a loose or broken knob, difficulty in turning or adjusting the surface element, or the knob not staying securely in place, it may indicate a problem with the surface element knob.

Symptoms of a bad surface element knob include:

• Difficulty in turning or adjusting the surface element
• Loose or wobbly knob
• Inability to control the temperature of the element

Replace your faulty surface element knob with this genuine OEM part to restore your range.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

The Main Control Board is an OEM component specifically designed for Whirlpool ranges. It is the central processing unit that monitors and controls all cooking functions.

The control board plays a vital role in operating bake and broil cycles, activating heating elements, and the convection fan. It allows for precise temperature regulation and customizable settings through an easy-to-use interface.

Symptoms of a bad control board include:

• Oven not reaching or maintaining set temperatures
• Inability to start desired cooking presets
• Error codes appearing on the control panel
• Components like fans or elements not reacting to commands

Causes of a bad control board can include failure from liquid intrusion, power surges over time, or other impacts that disrupt electronic connections.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Surface unit indicactor light.
