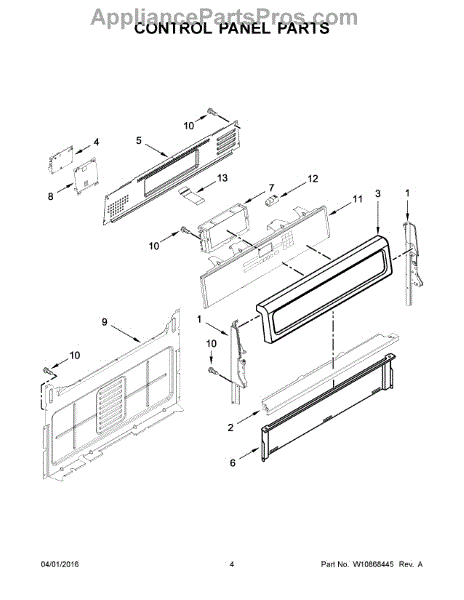

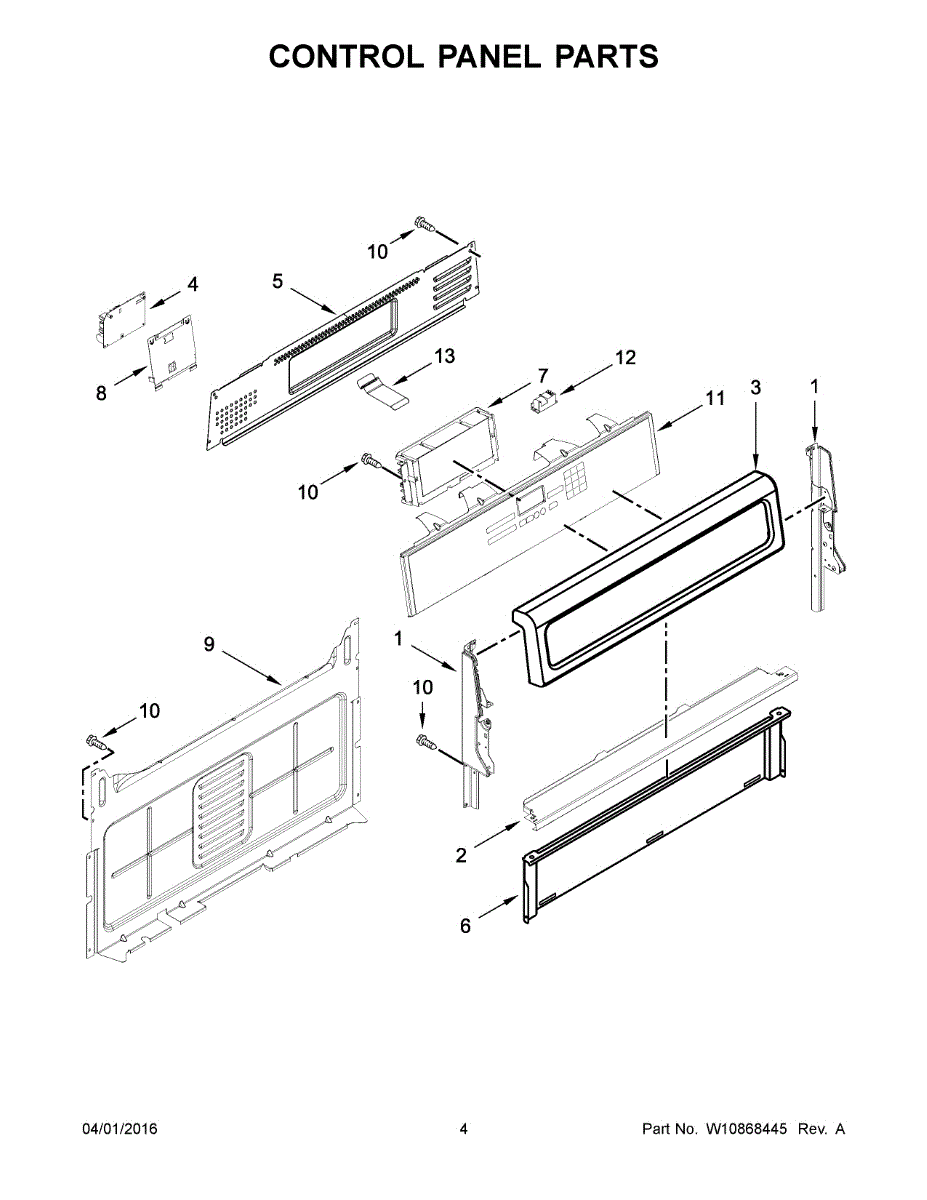

Parts for Whirlpool WFG745H0FE0: 03 - Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

Color: White

Color: Black

Color: Stainless

This electronic control module generates and manages ignition spark for DSI-equipped gas ovens/ranges. Replacing a failed unit restores reliable burner lighting and can resolve issues such as no spark, repeated clicking, or the oven/broiler not igniting.

• Generates high-voltage pulses to ignite gas at the DSI electrodes
• Times and controls ignition cycles; energizes the gas valve only during commanded ignition
• Monitors flame presence through the sense circuit and may retry or lock out if ignition fails
• Common symptoms of failure: oven or broiler won't ignite/heat, no clicking/spark, intermittent ignition, or continuous clicking
• Intended for models that use direct-spark (DSI) ignition systems, not glow-bar/hot-surface igniters

• Disconnect power and shut off gas supply before servicing
• Handle the control as an electrostatic-sensitive device; avoid touching terminals
• Transfer wires one at a time and mount the module securely with a proper ground
• After reassembly, restore utilities and verify normal ignition operation

This heat shield protects oven or range components from direct heat, helping prevent damage to nearby panels and wiring. It's a direct-replacement exterior shield used when existing metal shields are warped, cracked, or missing. What it does:

• Diverts and dissipates heat away from control panels, insulation, or adjacent components
• Helps stop heat-related discoloration, warping, or premature wear of nearby parts
• Restores proper clearance and airflow around the oven cavity after shield damage
• Commonly replaced when you see scorched areas, melted trim, or gaps where a shield once sat

• One heat shield (exact shape and mounting holes as shown in OEM diagram)

• Disconnect electrical power (and gas, if applicable) before starting any repair
• Remove oven racks and any trim panels to access the shield; keep track of fasteners
• Compare the replacement to the removed part to confirm fit before fastening
• If mounting hardware is damaged or missing, procure correct OEM fasteners — only the shield is guaranteed to ship

The Control Board is an OEM component specifically designed for Whirlpool ranges. This board is responsible for controlling the various electronic functions and operations of the oven such as temperature settings, timer functions, display readings, sensor inputs, and outputs.

Causes of a bad control board can include component failure due to wear and tear over time, issues with electronic components on the board, or damage from moisture, impact, or power surges.

Symptoms of a bad control board include:

• Temperature not reaching or maintaining set levels
• Timer malfunctions or inaccurate readings
• Sensor errors or non-responsiveness
• Displays that do not illuminate or do not react to inputs
• Main oven functions like bake or broil not engaging

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, as well as some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This membrane switch replaces a worn or unresponsive control panel interface to restore button responsiveness and control of oven functions. It provides a low-profile, sealed surface for user input. What it does:

• Registers user touch inputs for oven/range controls (temperatures, timers, settings)
• Replaces cracked, faded, or unresponsive control buttons
• Helps resolve intermittent or no-response control console behavior when the switch is the verified fault
• Sealed surface resists spills and simplifies cleaning compared with exposed key mechanisms

• Disconnect power to the appliance before starting work.
• Handle the membrane gently; avoid folding, creasing, or contaminating the back adhesive/contacts.
• Installation typically requires removing the control console or oven front panel to access the switch and connector.
• If performance issues persist after replacement, verify the electronic control board and wiring harness are functioning.

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter
