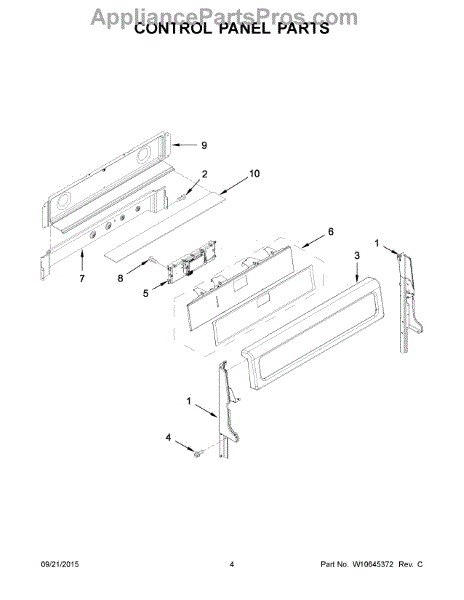

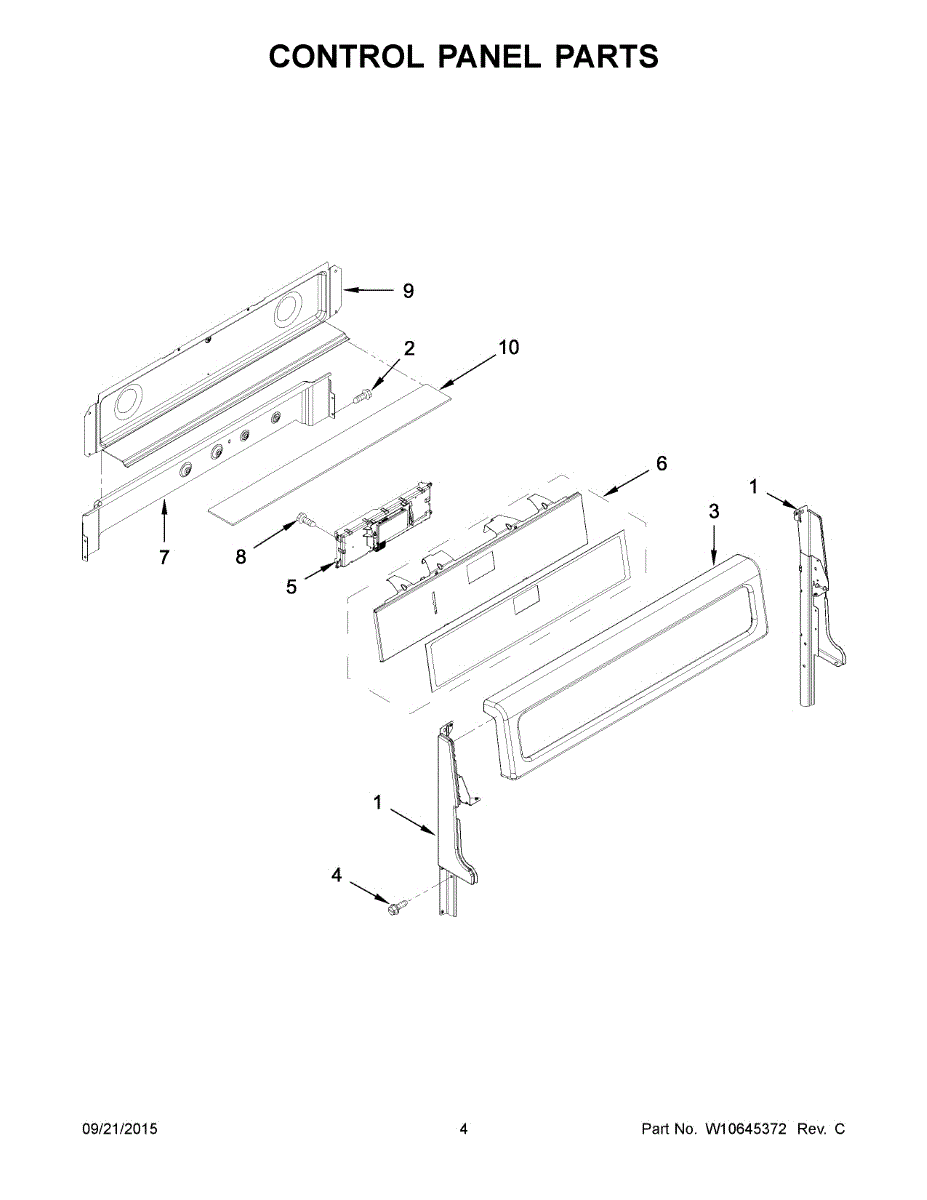

Parts for Whirlpool WGG555S0BB01: 03 - Control Panel Parts

Color: Black

Color: White

Color: White

Color: Black

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: White

Color: Black

Color: Stainless

Color: Black. For biscuit order 98008169. For white order WP98008544.

This electronic control board is the appliance's central command module that manages cycles, timers and user inputs to restore normal operation. Replacing a failed control can return proper cycle selection and timed functions. What it does:

• Receives and processes user commands from the console and sends signals to motors, valves and heaters.
• Controls cycle timing, start/stop functions and display responses.
• Commonly used when the appliance won't start, displays error codes, or cycles won't advance.
• Also replaced for intermittent operation, unresponsive buttons or incorrect cycle behavior.

• One electronic control board

• Disconnect power before starting work to avoid shock; verify power is off with a meter if available.
• Handle board by edges and avoid touching components or connectors; ground yourself to prevent ESD damage.
• Follow OEM disassembly steps for console/panel removal; keep fasteners and wiring organized for reassembly.
• If the unit has stored error codes, record them first — codes may indicate related component failures to address.

This membrane switch is the flat touch pad used to enter commands on the oven control board, restoring responsive button control for cycle selection and temperature settings. It replaces a worn or unresponsive control surface. What it does

• Registers user touch inputs and sends signals to the oven control board
• Restores functionality when buttons don't respond or require repeated presses
• Helps resolve issues with control panel input errors or missing button feedback
• Works with the existing control assembly; does not include the underlying control board

• One membrane switch (touch pad)

• Disconnect power to the appliance before starting any work to avoid shock
• Handle the membrane switch carefully; avoid bending, creasing, or contaminating contacts
• Installation typically requires removing the control/console assembly to access the switch

This membrane switch touch pad is the flat, button-style interface for the oven/range control panel that lets you enter bake settings and timers. It restores responsive touch input and corrects non-responsive or erratic keypad behavior. What it does:

• Replaces the flat-button interface used to enter oven functions, temperatures and timers
• Restores button responsiveness when keypad presses don't register or act intermittently
• Helps resolve control panel input errors and prevents unintended commands from stuck keys
• Works with the existing control assembly to send user commands to the control board

• One membrane switch touch pad

• Disconnect power (unplug or shut off breaker) before starting any work
• Remove the console bezel or trim to access the switch; handle the thin membrane carefully to avoid creasing
• Align and seat the switch flat against the control housing; ensure ribbon/connector is fully inserted and secured

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This Rear Cover replaces the dryer's rear cabinet panel to protect internal components and restore the appliance's exterior integrity. It keeps wiring and assemblies enclosed and helps maintain safe, reliable operation. What it does:

• Covers and protects the dryer's internal components at the back of the cabinet
• Prevents debris and lint from entering internal assemblies
• Restores proper mounting for rear-mounted components and wiring
• Helps reduce rattles or vibration caused by a damaged or missing rear panel

• One rear cover

• Disconnect power (unplug electric or shut off gas and breaker) before servicing
• May require removal of the dryer drum or access panels to fit and secure the cover
• Use appropriate hand tools; tighten fasteners snugly but do not overtighten
