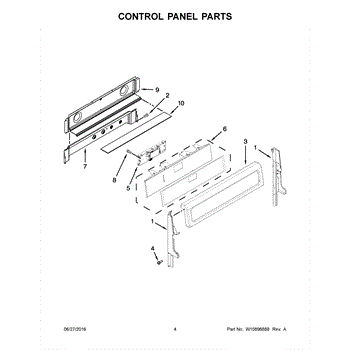

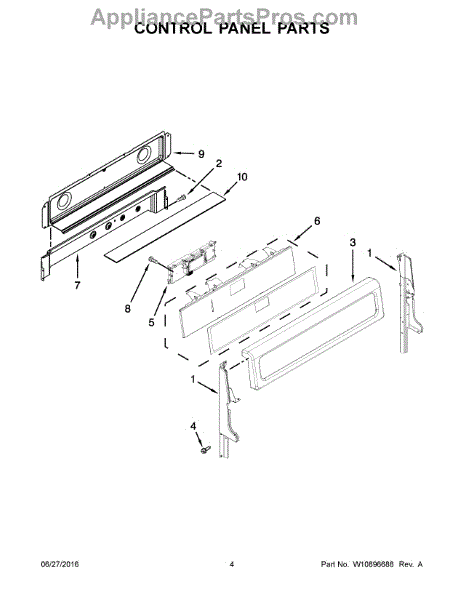

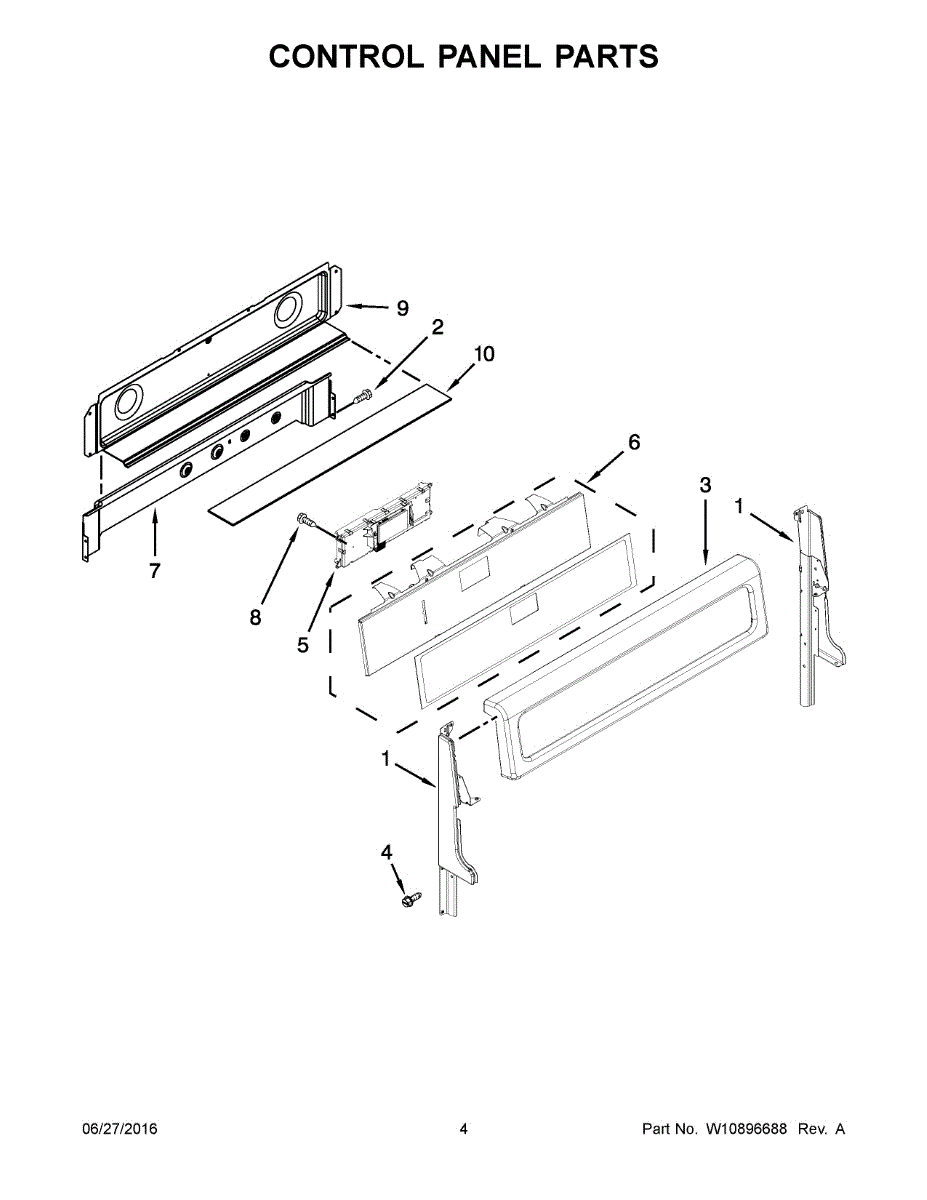

Parts for Whirlpool WGG745S0FE02: 03 - Control Panel Parts

Color: Black

Color: White

Color: White

Color: Black

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: White

Color: Black

Color: Stainless

Color: White. For black order WP98008545. For biscuit order 98008169.

Color: Black. For biscuit order 98008169. For white order WP98008544.

The range Cntrl-Elec is an OEM component specifically designed for Whirlpool ranges. This electronic control board is responsible for regulating and monitoring critical operations of the oven such as temperature selection, timer functions, and safety features.

Causes of a bad control board can include liquid or debris damage to electronic components, failure of wiring connections over time, or issues arising from power surges.

Symptoms of a bad range Cntrl-Elec include:

• Inoperative or inaccurate temperature selection
• Timer functions that do not work properly
• Safety locks or cutoff features that do not engage
• Error codes or flashes from diagnostic lights

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore ranges.

This membrane switch touch pad is the user interface that lets you select cycles and settings on the console. It restores responsive button control and readable markings for accurate operation of the appliance. What it does:

• Replaces a worn or unresponsive touch pad so button presses register correctly.
• Restores visible keypad markings and tactile feedback on the control panel.
• Helps resolve intermittent or non-working console buttons and failed cycle selections.
• Works with the console electronics to send user commands to the appliance control board.

• One membrane switch touch pad

• Disconnect power to the appliance before attempting service to avoid shock.
• Handle the membrane gently; avoid bending or creasing the flexible circuit.
• Installation typically requires removing the control panel; refer to your model's service manual for step-by-step instructions.

This membrane switch touch pad replaces the front control interface on compatible Whirlpool range and oven models, restoring responsive button control and clear touch input for oven functions. Ideal when buttons are unresponsive or the control surface is damaged. What it does

• Acts as the user-facing interface for oven/range controls, sending touch commands to the main control board
• Fixes symptoms like unresponsive or intermittent button activity and worn or faded button labels
• Helps restore accurate input for temperature, timer, and function selection when the old pad is failing
• Works as the direct replacement part designed to match OEM fit and layout

• One membrane switch touch pad

• Disconnect power (unplug or shut off circuit breaker) before service to avoid shock or damage
• Handle the flex ribbon and connector carefully; avoid creasing the flex circuit or touching connector contacts
• Align and seat the pad properly on the control housing; secure any retainers or adhesive used by the original assembly

The Membrane Switch is an OEM part for Whirlpool ranges. It is a sensory control panel located on the front of the range that allows for tactile selection of cooktop burners and oven functions.

Causes can be cracks or breaks in the silicone rubber overlay, failures in the underlying circuit wiring, or general wear over many years of use.

Symptoms of a defective membrane switch include:

• Unresponsive or intermittent control of burners and oven selections
• Inability to ignite certain gas burners
• Faulty temperature or time displays
• Repeated error codes shown

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit
