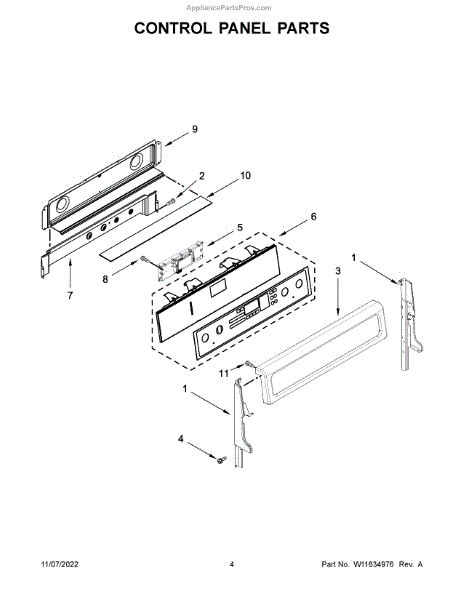

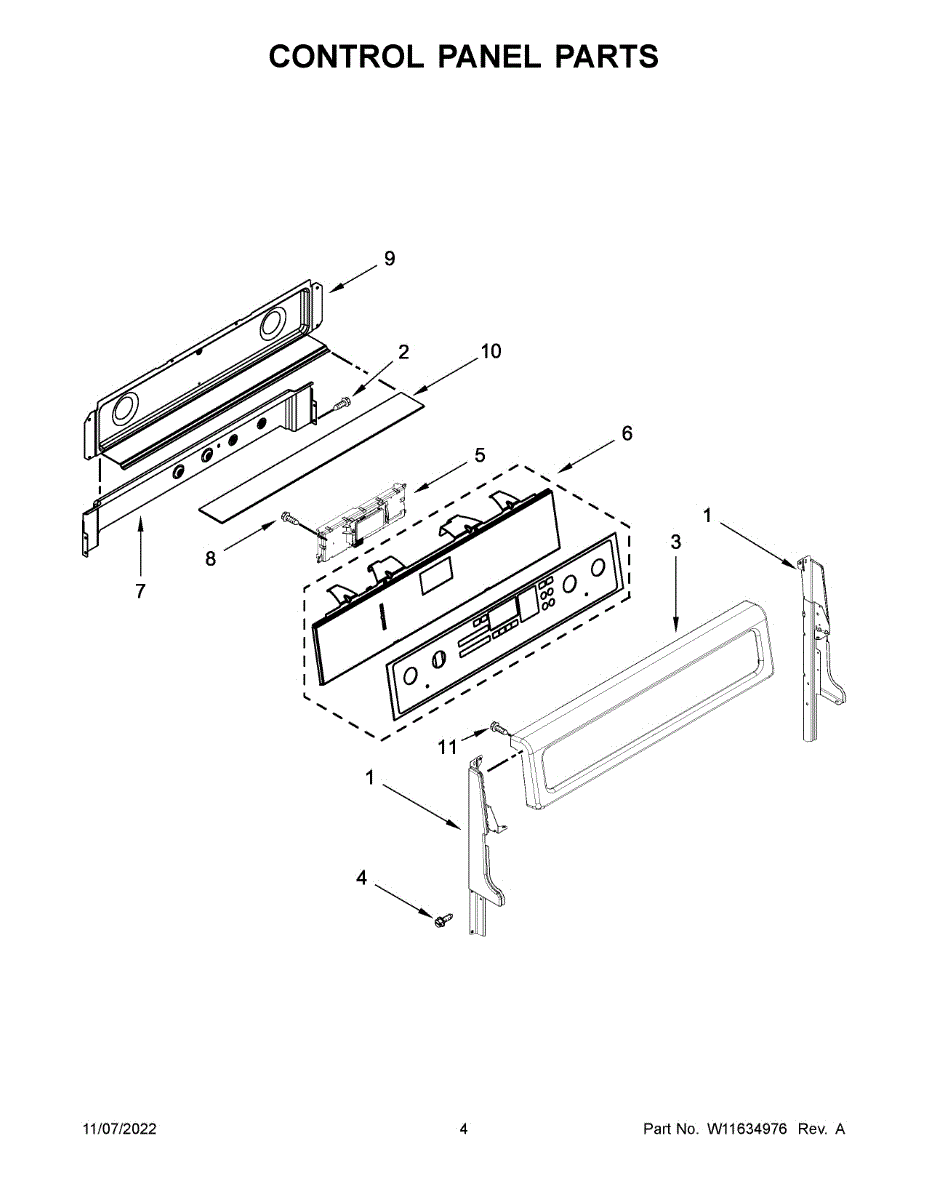

Parts for Whirlpool WGG745S0FE10: Control Panel Parts

Color: Black

Color: White

Color: White

Color: Black

Color: White

Color: Black

Color: Stainless

Color: White. For black order WP98008545. For biscuit order 98008169.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This membrane switch touch pad is the user interface that lets you select cycles and settings on the console. It restores responsive button control and readable markings for accurate operation of the appliance. What it does:

• Replaces a worn or unresponsive touch pad so button presses register correctly.
• Restores visible keypad markings and tactile feedback on the control panel.
• Helps resolve intermittent or non-working console buttons and failed cycle selections.
• Works with the console electronics to send user commands to the appliance control board.

• One membrane switch touch pad

• Disconnect power to the appliance before attempting service to avoid shock.
• Handle the membrane gently; avoid bending or creasing the flexible circuit.
• Installation typically requires removing the control panel; refer to your model's service manual for step-by-step instructions.

This membrane switch touch pad replaces the front control interface on compatible Whirlpool range and oven models, restoring responsive button control and clear touch input for oven functions. Ideal when buttons are unresponsive or the control surface is damaged. What it does

• Acts as the user-facing interface for oven/range controls, sending touch commands to the main control board
• Fixes symptoms like unresponsive or intermittent button activity and worn or faded button labels
• Helps restore accurate input for temperature, timer, and function selection when the old pad is failing
• Works as the direct replacement part designed to match OEM fit and layout

• One membrane switch touch pad

• Disconnect power (unplug or shut off circuit breaker) before service to avoid shock or damage
• Handle the flex ribbon and connector carefully; avoid creasing the flex circuit or touching connector contacts
• Align and seat the pad properly on the control housing; secure any retainers or adhesive used by the original assembly

The Membrane Switch is an OEM part for Whirlpool ranges. It is a sensory control panel located on the front of the range that allows for tactile selection of cooktop burners and oven functions.

Causes can be cracks or breaks in the silicone rubber overlay, failures in the underlying circuit wiring, or general wear over many years of use.

Symptoms of a defective membrane switch include:

• Unresponsive or intermittent control of burners and oven selections
• Inability to ignite certain gas burners
• Faulty temperature or time displays
• Repeated error codes shown

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.
