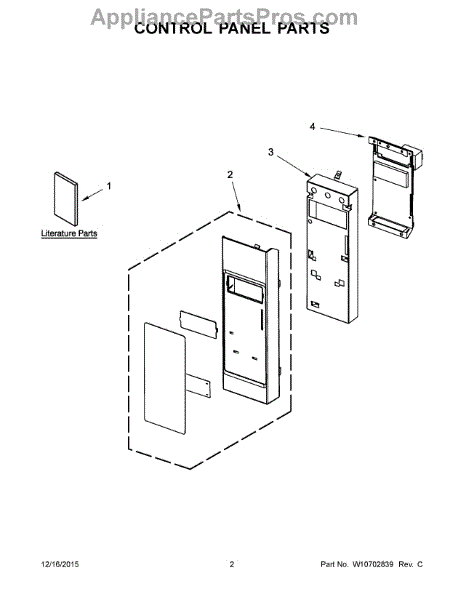

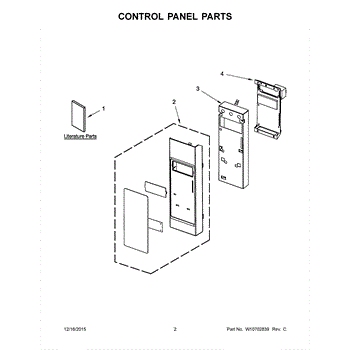

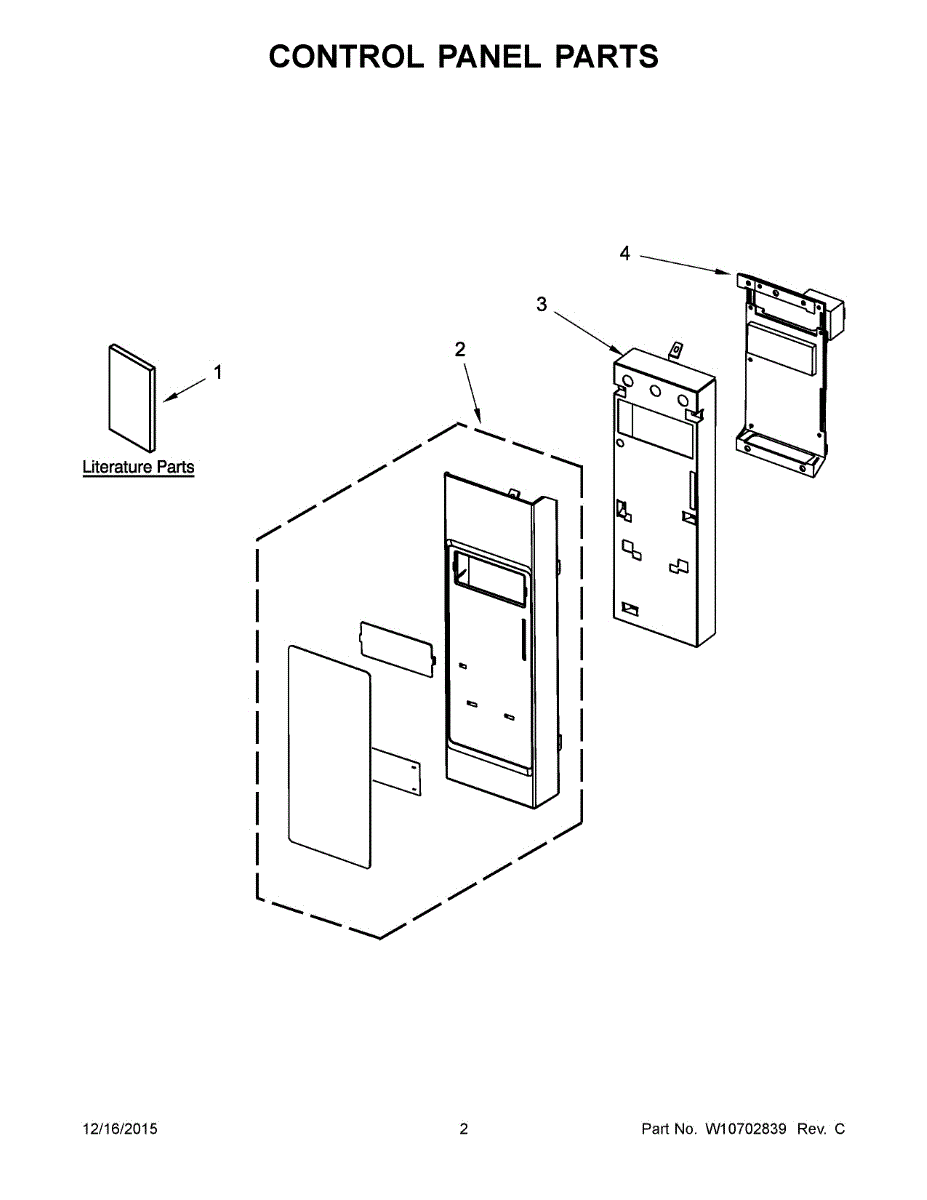

Parts for Whirlpool WMH31017AB2: 02 - Control Panel Parts

This control panel is the front console housing for your appliance's user interface, restoring the buttons and display area so you can select cycles and read settings clearly. Designed as a direct replacement for the panel assembly. What it does:

• Provides the user interface surface for touchpads, buttons, and the display so controls respond and information is visible.
• Transfers user inputs to the appliance's main electronics (when installed and connected correctly).
• Replaces panels that are cracked, scratched, or have worn labels that make controls hard to see or use.
• Restores a finished appearance to the appliance's front when the original panel is damaged.

• Disconnect power (unplug or switch off breaker) before attempting service to avoid shock.
• Handle carefully to avoid damaging attached electronics, ribbon cables, or the display; avoid touching circuit board contacts.
• Remove trim and mounting screws as needed; keep hardware organized for reassembly.
• Test operation after reconnecting wiring and before fully reassembling the appliance.

This control panel is the appliance's main console that houses the user controls and display, restoring reliable touch/selection and clear status feedback. It provides the interface needed to select cycles and view settings. What it does:

• Replaces a cracked, unresponsive, or faded console to restore control access and display readability
• Houses button/keypad and display components used to select cycles and options
• Helps resolve symptoms like non-responsive buttons, missing/displayed settings, or intermittent control operation
• Works with the appliance's electronic control system to send user commands

• One control panel/console

• Disconnect power before starting any repair to avoid shock or damage
• Remove adjoining trim and bezels as needed to access mounting screws and electrical connectors
• Handle display and ribbon cables carefully; do not force connectors when disconnecting or reconnecting

This electronic control board is the appliance's main control module that manages cycles, user inputs, and display functions. Replacing a faulty board restores reliable control and consistent operation of the appliance. What it does:

• Interprets user commands from the console and starts selected cycles
• Controls timing, heating/motor outputs and display indicators per program
• Helps prevent erratic behavior like unexpected stops or incorrect cycles
• Common symptoms: blank or unresponsive display, buttons not working, appliance won't start, or shows control-related error codes

• Disconnect power to the appliance before starting any work to avoid shock
• Handle the board by its edges and avoid static discharge; use a grounded wrist strap if available
• Note and reconnect all wiring harnesses and connectors to their original locations
