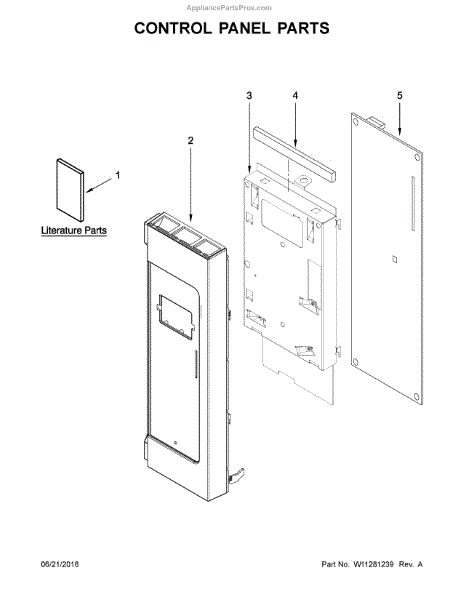

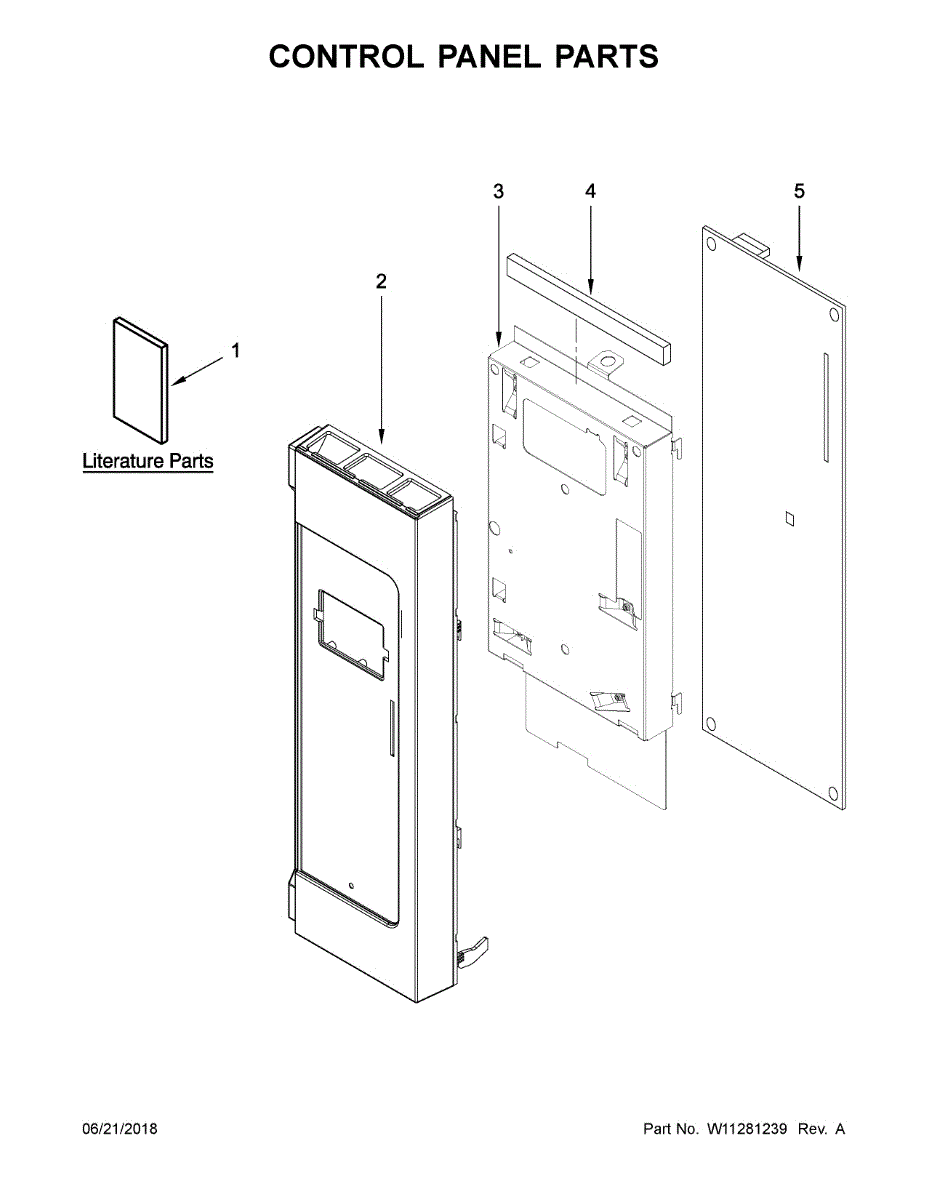

Parts for Whirlpool WMH31017FB2: Control Panel Parts

The Control Panel is an OEM replacement part for Whirlpool microwaves. It is responsible for providing a user-friendly interface to operate the microwave and control its various functions and settings.

A bad control panel can occur due to wear and tear, electrical issues, or damage to the control board. If you notice symptoms such as unresponsive buttons, erratic operation, or error codes displayed on the control panel, it may indicate a faulty control panel.

Symptoms of a bad control panel include:

• Unresponsive buttons
• Erratic operation
• Error codes displayed on the control panel

Restore your microwave by replacing the faulty or damaged control panel with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This control panel is the user interface assembly that lets you select cooking modes, set temperatures and timers, and view status messages—restoring normal control and display functions to the range or oven. What it does

• Houses the touchpads/buttons and display used to enter oven and cooktop settings
• Sends user commands to the range's main control so cycles start and run as selected
• Commonly replaced for unresponsive keys, blank or garbled display, or when oven won't accept inputs
• Works with the console mounting and bezel to present a finished front surface

• Disconnect power at the breaker or unplug the appliance before starting any work
• Basic hand tools typically required; panel removal may involve removing trim or bezels
• Handle the display and ribbon/connector gently to avoid damage

This control bracket secures the appliance's electronic control or user interface assembly. It provides firm support and proper alignment so the control components mount correctly and remain stable during use.

• Mounts and supports the control or UI assembly inside the appliance
• Maintains alignment of buttons, display, and connectors
• Reduces flexing and vibration that can cause rattles
• Common signs of a failed bracket include a loose or shifting control area, rattling from the console, or visible cracks/broken tabs

• Disconnect power to the appliance before servicing
• Take photos of wiring and component layout to aid reassembly
• Transfer any clips, insulators, or guides from the original bracket to the new one
• Handle nearby electronics with ESD care and do not overtighten fasteners

Note: If your original control board had a P4 connector for the thermistor, this new board has it integrated internally so the original thermistor connection is no longer necessary. It can be left unconnected in the microwave cavity.

The Electronic Control Board is an OEM part for Whirlpool microwaves. It manages and regulates the microwave's functions, including power levels, cooking times, and various preset options. This control board is essential for ensuring accurate operation and user control over the microwave's features.

Causes of a bad control board can include power surges, electrical shorts, moisture exposure, or general wear and tear over time. These factors can damage the circuitry and components of the board, leading to malfunction.

Symptoms of a bad electronic control board include:

• Microwave not starting or responding to commands
• Display screen not working or showing incorrect information
• Inability to select or change cooking settings
• Microwave shutting down unexpectedly during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
