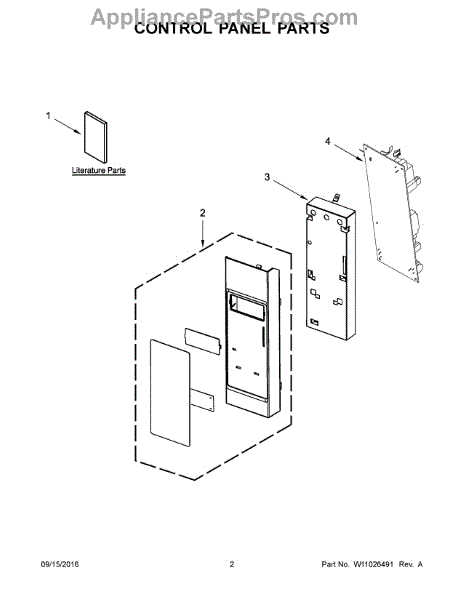

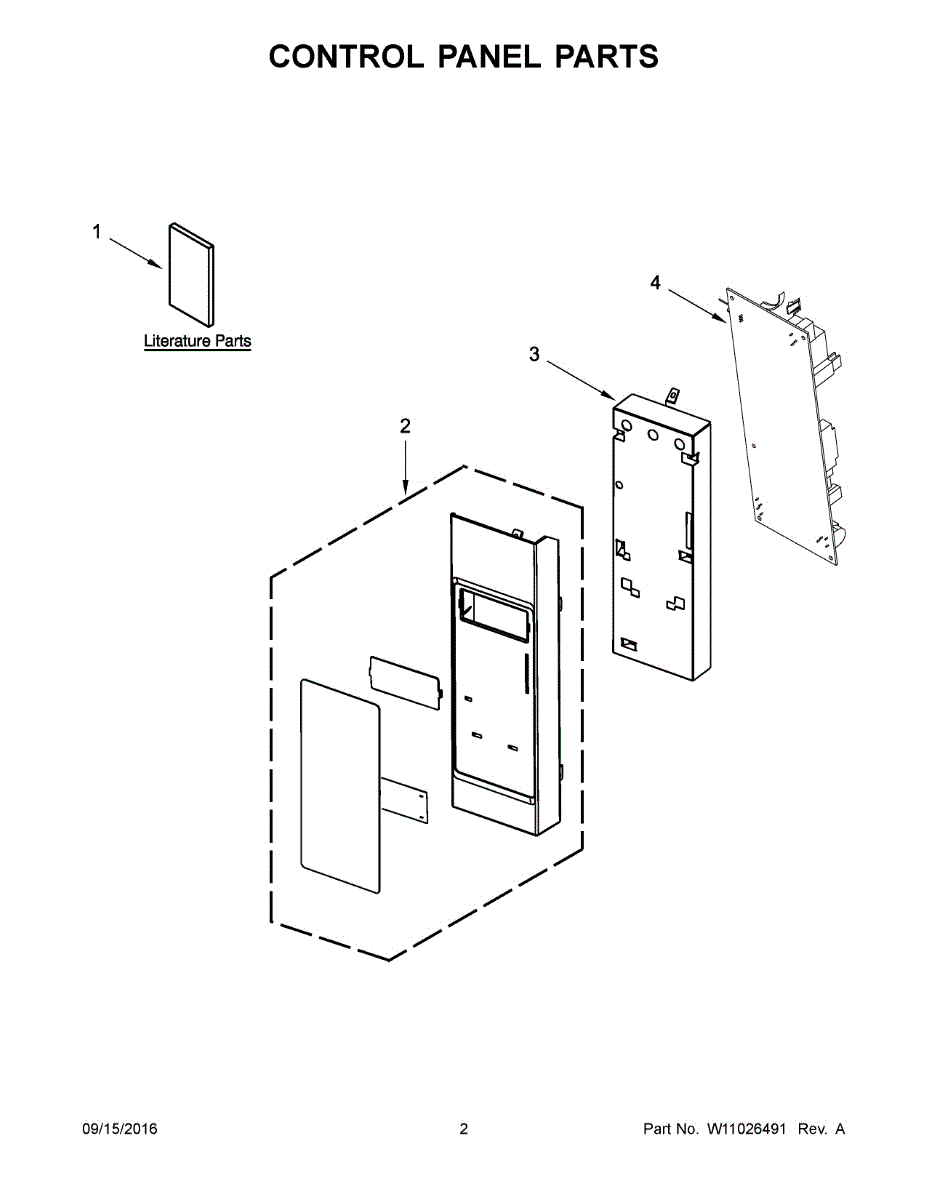

Parts for Whirlpool WMH53520CS5: 02 - Control Panel Parts

This control bracket secures the appliance control assembly so the console stays stable and aligned during normal use. It helps prevent loose or shifting controls that can cause buttons or knobs to bind. What it does:

• Provides a stable mounting point for the control board/console
• Keeps the control panel aligned to prevent rubbing or misalignment
• Helps reduce vibration-related loosening of control fasteners
• Can resolve symptoms like a loose or wobbly control panel or controls that move when pressed

• Disconnect power to the appliance before beginning any repair.
• Remove the console or access panel per the service guide to reach the bracket.
• Keep all fasteners and note their original positions for correct reassembly.
• Verify correct alignment and secure all screws before restoring power.

The Control Board is an OEM part for Whirlpool built-in and countertop microwaves. Located at the "brain" of the appliance, it contains electronic modules, circuits and components that allow for operation of cooking functions and power levels.

Causes of a bad control board can involve physical impacts disrupting circuit connectivity or failures in moisture-sensitive surface mount technologies due to repeated steam exposure over time.

Symptoms include:

• Inability to power on or non-responsive buttons and dials
• Faulty cooking as sensors and timers malfunction
• Diagnostic error codes relating to control circuitry
• Potential arcing or sparks from inside due to shorts

This OEM Whirlpool replacement is also compatible with models from KitchenAid, Jenn-Air, Admiral, Norge, and select Kenmore models
