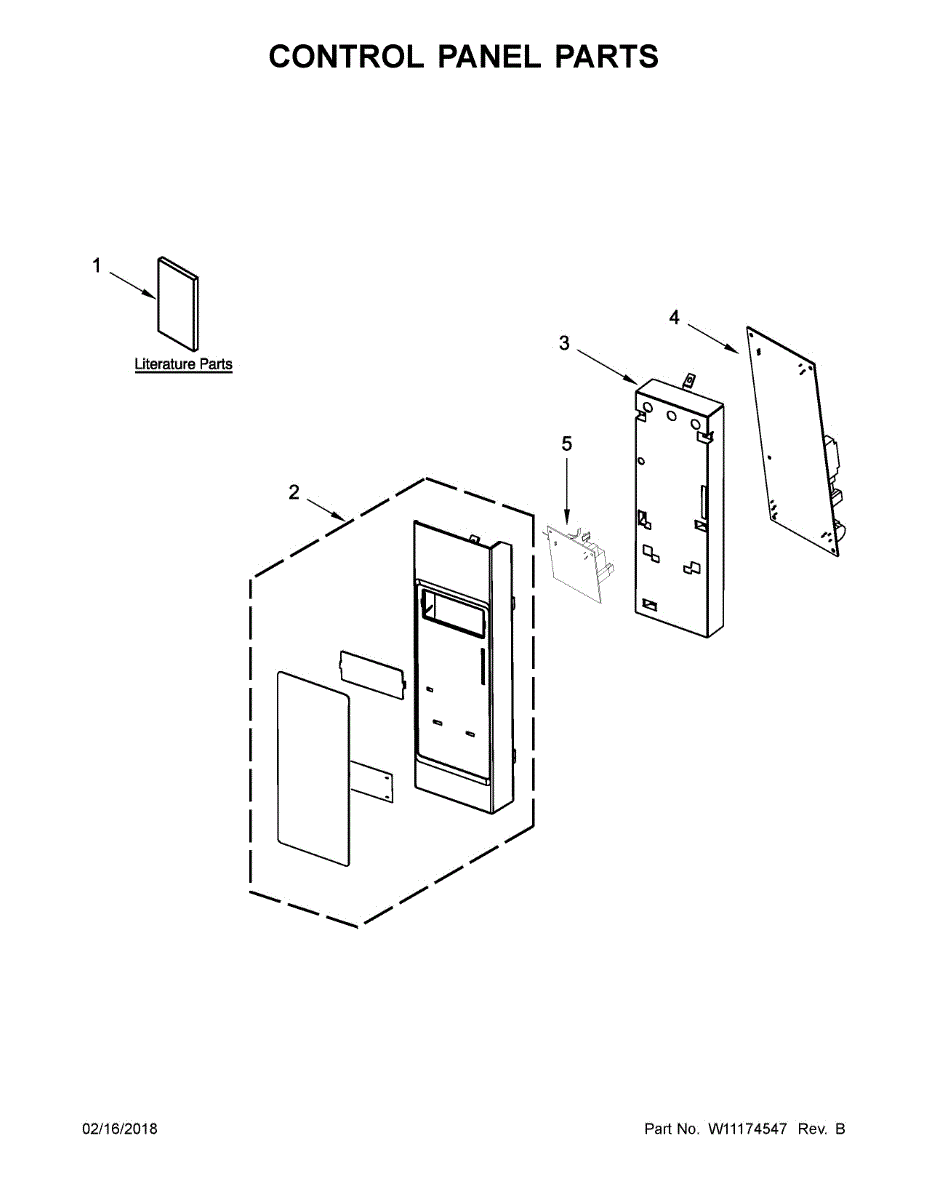

Parts for Whirlpool WMH53520CS7: Control Panel Parts

This control bracket secures the appliance control assembly so the console stays stable and aligned during normal use. It helps prevent loose or shifting controls that can cause buttons or knobs to bind. What it does:

• Provides a stable mounting point for the control board/console
• Keeps the control panel aligned to prevent rubbing or misalignment
• Helps reduce vibration-related loosening of control fasteners
• Can resolve symptoms like a loose or wobbly control panel or controls that move when pressed

• Disconnect power to the appliance before beginning any repair.
• Remove the console or access panel per the service guide to reach the bracket.
• Keep all fasteners and note their original positions for correct reassembly.
• Verify correct alignment and secure all screws before restoring power.

The Relay Control Board is an OEM replacement part for Whirlpool microwaves. This essential component is responsible for managing electrical power distribution to various elements of the microwave, ensuring that each function and feature operates effectively.

Causes for a malfunctioning Relay Control Board can include electrical surges, wear and tear over time, or issues with the soldered connections or circuits on the board.

Symptoms of a bad Relay Control Board in a microwave include:

• The microwave not starting or heating food
• Display panel issues, such as flickering or incorrect time display
• Buttons or controls not responding
• Error codes indicating electrical or power distribution issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Control Board is an OEM component for Whirlpool microwaves. As the centralized processor, it monitors and directs all microwave functions through built-in circuitry and communication protocols.

The control board ensures cook times, power levels, and features operate accurately based on user settings. Its controls automatically calibrate the magnetron and other components to deliver consistent heating results.

Causes of a bad control board can include moisture damage, failed solder joints, or cracks in the circuit pathways over repeated heating cycles.

Symptoms of a bad control board include:

• Lights or displays cease to function properly
• Preset buttons or numeric pad malfunctions
• Magnetron fails to engage or overheats
• Door locks inoperable or inconsistent

With this genuine Whirlpool replacement part, users can restore optimized performance. Compatible with microwaves from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and select Kenmore models.
