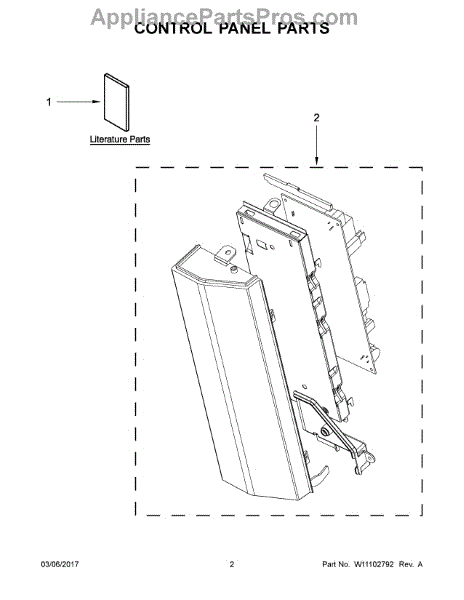

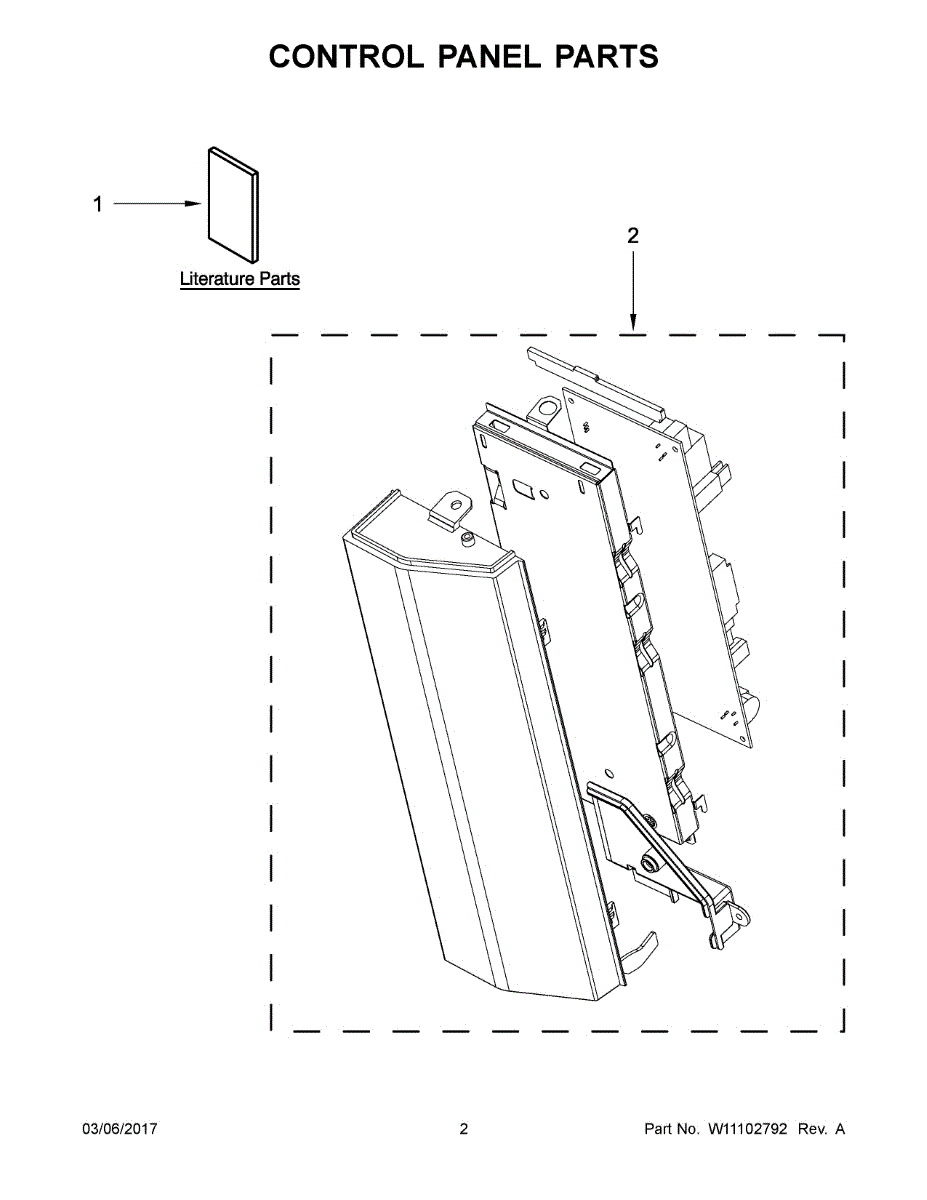

Parts for Whirlpool WMH76719CE2: 02 - Control Panel Parts

This electronic control board manages the dryer's user interface and cycle electronics so the dryer responds correctly to button presses and cycle selections. It restores control functions when the original board is faulty. What it does:

• Controls cycle selection, start/stop commands, and user-display feedback
• Communicates with sensors and timers to regulate drying cycles
• Replaces boards that cause unresponsive buttons, error codes, or display issues
• Helps resolve intermittent operation, failure to start, or incorrect cycle behavior

• Disconnect power at the breaker or unplug the appliance before starting work.
• Handle the board by the edges and avoid touching circuit traces or components.
• Verify connector orientation and secure all wire harnesses; do not force pins.

This electronic control board is the main control module that manages oven/dryer cycle functions and user interface signals, restoring proper electronic control and program response for your appliance. What it does:

• Receives user commands and runs appliance cycles by controlling relays, timers, and sensor inputs
• Helps resolve symptoms like unresponsive touchpad, no display updates, or failures to start cycles
• Controls heating elements, motors, and valves through timed outputs when functioning correctly
• Works with sensor and safety inputs to maintain programmed operation and error reporting

• One electronic control board

• High-level replacement; access requires removing console or control panel—follow OEM service manual
• Disconnect power at the breaker before attempting diagnostics or replacement to avoid shock
• Handle the board by its edges and avoid static discharge; reinstall connectors securely
