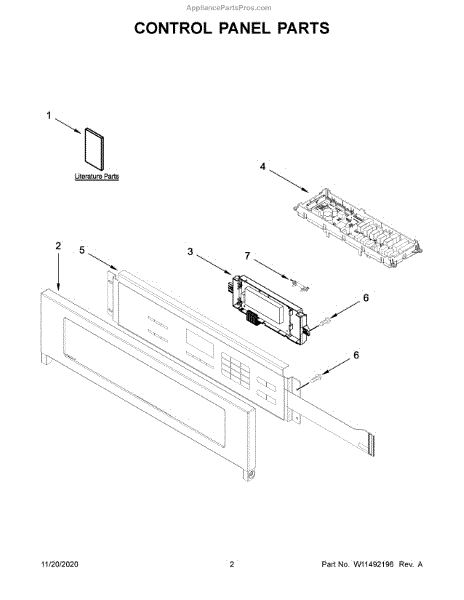

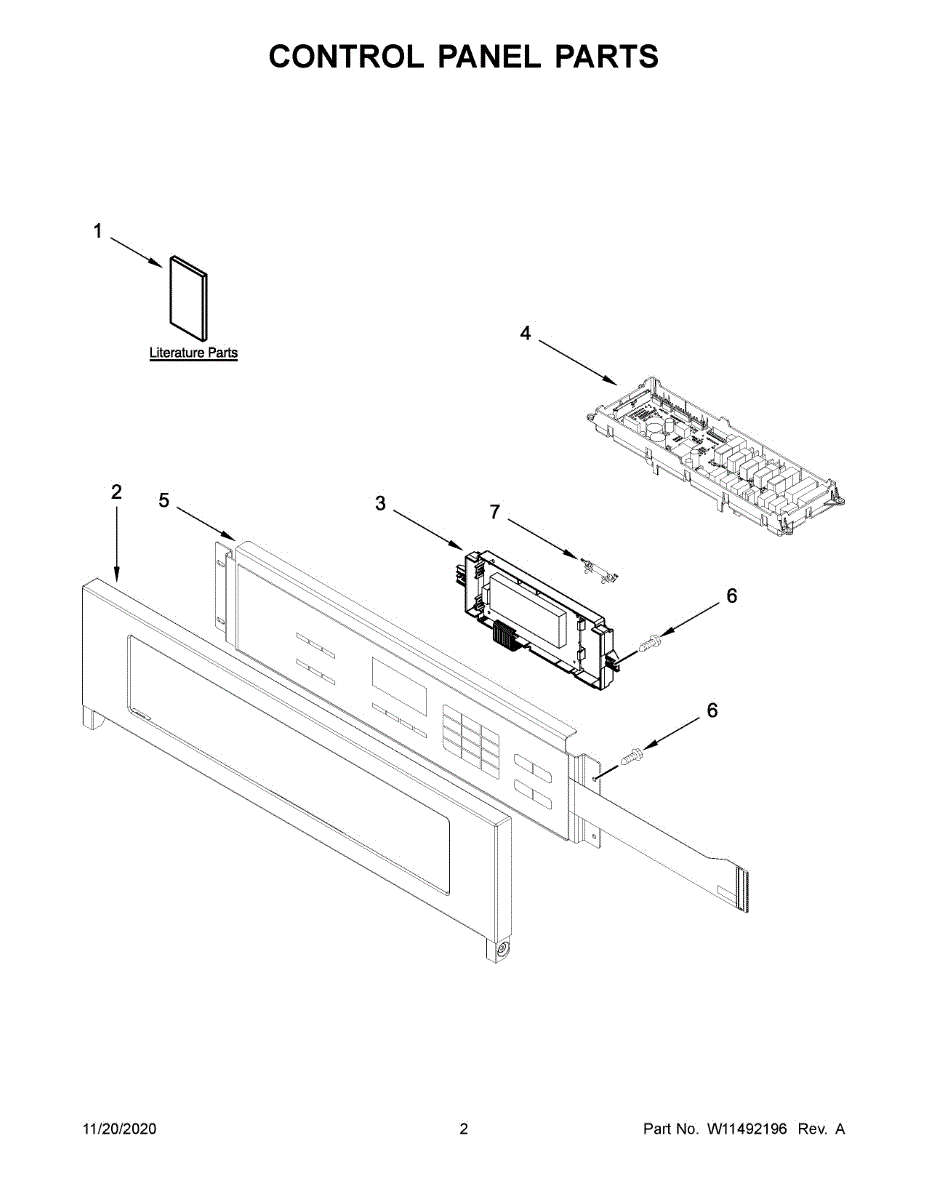

Parts for Whirlpool WOS51ES4ES02: Control Panel Parts

This control panel is the user-facing console assembly that holds the touchpads, display, and main controls so you can operate the oven or range. It restores normal control access and readable display feedback. What it does

• Houses the control buttons/touchpads and display used to set bake, broil, timers, and other functions
• Replaces a cracked, faded, or unresponsive console surface or damaged button area
• Commonly used when buttons or touch controls fail to register, display is dim/blank, or settings won't accept
• Works with the range/oven's electronic control to send user commands for cooking functions

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the display and touchpad area carefully to avoid scratching or damaging the finish
• Some installations require removing the oven/range backguard or control housing and unplugging a ribbon or wire harness

This electronic control board is the appliance's brain, managing power to key components while executing your selected settings. Replacing a failed board restores normal operation, responsive controls, and reliable cycle timing across programmed functions.

• Interprets user inputs and runs stored programs while managing safety interlocks
• Switches onboard relays to power loads (motors, heaters, fans, valves) as required
• Monitors sensor and switch feedback to control performance and protect the system
• Common failure signs: won't power on or start, unresponsive controls/display, won't advance or stops mid-cycle, random beeping/flashing, or error codes

• Disconnect power at the breaker; turn off gas/water if your appliance uses them
• Use ESD protection; handle the board by the edges to avoid static damage
• Photograph and label all connectors; transfer any jumpers or mounting hardware from the original board
• After reassembly, restore power and run any model-specific diagnostic or calibration procedure per the service manual.

This membrane switch is the front touch pad assembly for the oven control panel, restoring responsive button control and reliable input to your range or wall oven. It provides the user interface for selecting cook modes and settings. What it does:

• Replaces the worn or damaged touch pad used to enter bake, broil, timer and other oven commands
• Restores button responsiveness when keys are unresponsive, intermittent, or require extra pressure
• Helps resolve issues where the control panel won't accept touch inputs or registers incorrect presses
• Works with the oven's control board to send user commands to the appliance

• One membrane switch (touch pad) as pictured

• Disconnect power to the appliance at the breaker or unplug before beginning work
• Remove the control console or trim per your appliance instructions; handle the membrane gently to avoid creasing or damage
• Align and seat the membrane carefully onto the control housing and reconnect any ribbon cables or connectors snugly

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This safety thermal fuse protects your appliance by opening the circuit if internal temperatures climb too high, helping prevent overheating damage and restoring safe operation when replaced.

• Monitors temperature and cuts power if an overheat condition occurs
• Common failure symptoms: appliance won't start, no power to key components, intermittent shutoff after heating, or blown/failed continuity on the fuse
• Helps safeguard wiring and control components from heat-related failures

• Disconnect power and shut off utilities before servicing
• Access location; note wire orientation for reassembly
• Replace if open/no continuity
• Investigate and correct the root cause of overheating (vents, fans, wiring) before restoring power

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
