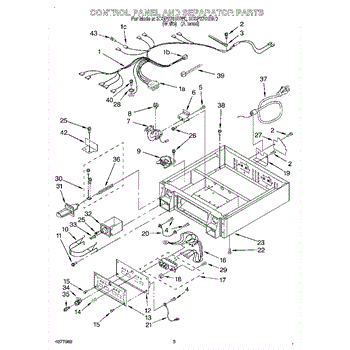

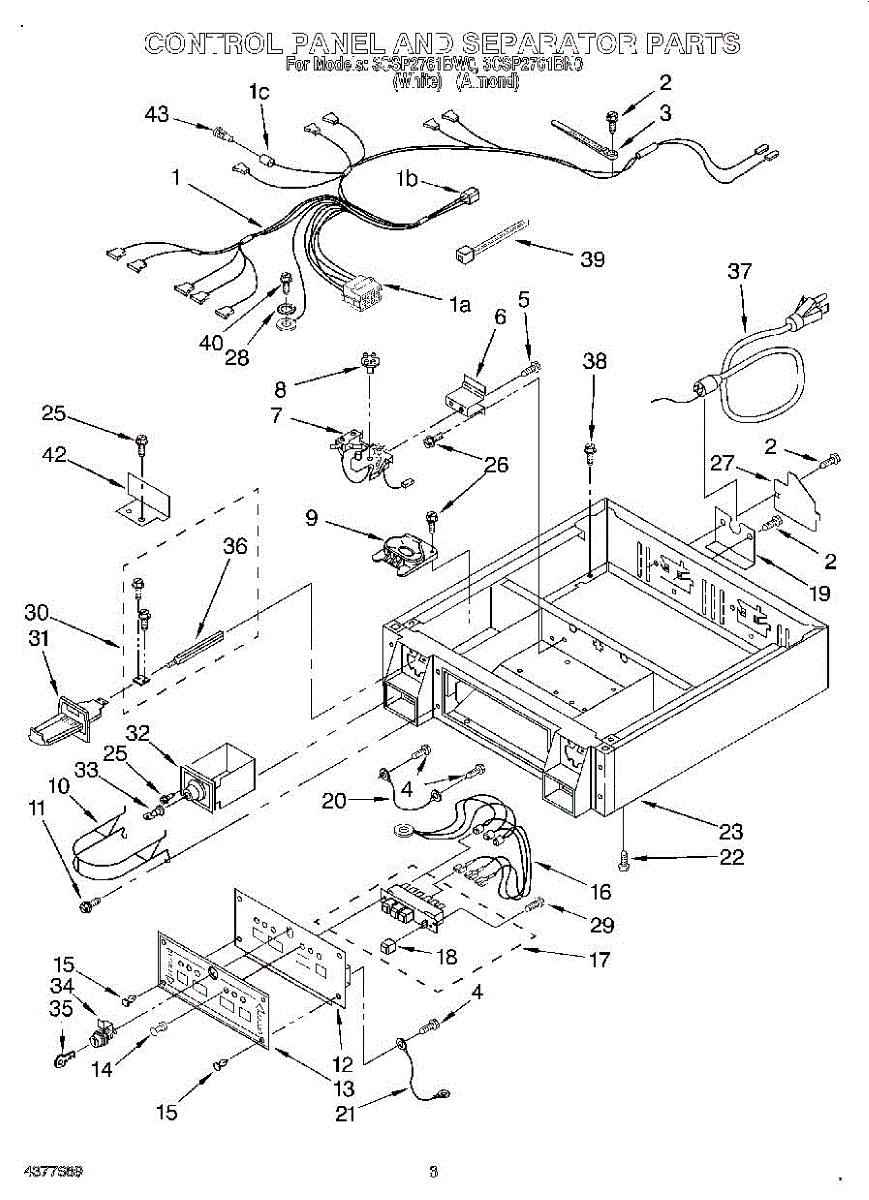

Parts for Whirlpool 3CSP2761BN0: 03 - Control Panel And Separator Parts

6 Pin 30 minute

Dryer timer stuck or not advancing through cycles? The timing cam controls cycle progression. Worn cams cause timers to stall mid-cycle or fail to move.

3 pin 60 minute

Size: 10-32 x 1/2 inch.

Replacement machine bolt for securing panels, brackets, and components in dishwashers, dryers, washers, and laundry centers. Restores fit if missing.

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

This replacement cover restores the appliance's finished appearance and protects internal components from dust and debris. It's a direct-fit exterior trim piece designed to replace a cracked, broken, or missing cover. What it does:

• Protects internal components and wiring from debris and accidental contact
• Restores the appliance's cosmetic appearance and helps maintain sealing
• Helps reduce dust buildup in the covered area
• Replaces damaged or missing trim that can expose sharp edges or hardware

• Disconnect power (unplug or switch off circuit breaker) before beginning work
• Basic hand tools may be required; follow for panel removal/replacement
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Replace with manufacturer-recommended fasteners

Screw: 8-16 x 3/8 inch.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

Replacement screw secures panels, brackets, and internal assemblies. Needed when original hardware is stripped, corroded, or missing to keep parts tight.

Bracket extension for dryers and laundry centers. Mounts to provide structural support for internal components. Replace if bent, broken, or missing.
