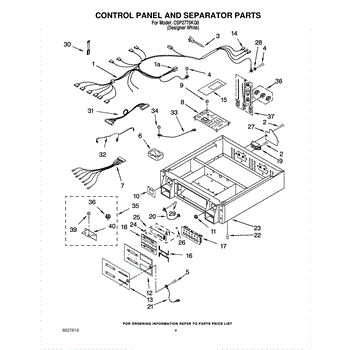

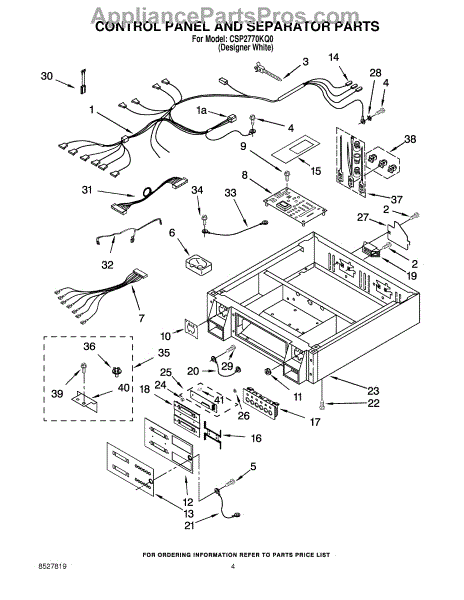

Parts for Whirlpool CSP2770KQ0: 04 - Control Panel / Separator Parts

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

This coin funnel channels coins from the coin slide/drop into the collection box on coin-operated laundry equipment. Replacing a damaged or missing funnel restores smooth coin flow and helps prevent jams and lost coins inside the cabinet.

• Guides coins from the slide/drop into the collection/coin box
• Helps prevent coins from spilling into the cabinet and causing jams
• Cracks, warping, or misalignment can cause coin back-ups or coins showing up inside the machine
• Visible damage or frequent coin jams indicate the funnel should be replaced

• Disconnect electrical power before servicing; for gas dryers, also shut off gas supply
• Remove coin box and open the meter case/console to access the funnel
• Reuse existing mounting hardware; install the new funnel in the same orientation
• Clear debris and test coin travel by hand before reassembly and returning to service

This replacement mounting screw secures appliance panels and small components to restore proper fit and reduce movement. It's a simple, direct part for repairing loose panels, trim, or interior assemblies. What it does:

• Fastens panels, brackets, or assemblies to prevent rattling and vibration
• Restores proper alignment for doors, control panels, or trim pieces
• Helps stop intermittent noise caused by loose hardware
• Use when original screw is missing, stripped, or corroded

• Disconnect power and unplug the appliance before beginning any repair
• Use the correct screwdriver bit and hand-tighten; avoid over-torquing which can strip threads
• Keep small parts away from children and pets; magnetic tray helps prevent loss
• If multiple screws are corroded or hardware threads are damaged, inspect mating parts and replace as needed

This replacement funnel guides dryer airflow from the drum into the lint screen housing. Replacing a cracked or missing funnel helps restore a tight air path for efficient drying and keeps lint contained inside the proper ductwork.

• Directs exhaust air from the drum into the lint screen/duct path
• Helps prevent lint blowback and cabinet contamination
• A damaged or warped funnel can cause longer dry times and poor airflow
• Contribute to excess lint in the drum or overheating symptoms

• Disconnect power; for gas models, also shut off the gas supply
• Access is typically through the top or front panel; remove lint duct fasteners as needed
• Transfer and reuse existing mounting hardware and any seals
• Clean lint from mating ducts and ensure an airtight fit before reassembly

Size: 10-32

For mating terminal use [AP31136300].

A protective shield designed to cover and protect appliance components from debris, moisture, and incidental contact to help maintain reliable operation and reduce premature wear. Fits specific Whirlpool appliance assemblies. What it does:

• Protects internal components by blocking debris, moisture, and foreign objects.
• Helps reduce wear and prevent shorting or damage to nearby parts.
• Commonly replaced when cracked, broken, or missing after service or impact.
• Restores the original barrier for safe, reliable operation of the affected assembly.

• Disconnect power and water to the appliance before beginning any repair.
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the shield.

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.

This 5/16-18 x 3/4 machine bolt replaces a missing or damaged fastener used to secure panels, brackets and components in many home appliances. It restores proper fit and helps stop rattling or loose parts. What it does:

• Secures panels, brackets or assemblies to maintain proper alignment and safe operation
• Restores clamping force where a stripped or missing bolt lets parts shift or vibrate
• Helps eliminate rattling, scraping or movement caused by loose fasteners
• Matches standard 5/16-18 coarse threads for direct replacement of the OEM bolt

• Disconnect power to the appliance before servicing to reduce shock and injury risk
• Start threads by hand to avoid cross-threading; tighten using the correct socket or wrench
• Do not overtighten; snug to manufacturer torque or until secure to avoid stripping threads
• If the original mating threads are damaged, inspect the receiving part and repair or replace as needed

This flat washer provides a secure bearing surface for a fastener, helping distribute load and protect mounting surfaces. It helps maintain tight connections so assemblies stay aligned and operate quietly. What it does:

• Distributes bolt or nut pressure to prevent surface damage
• Helps keep fasteners from loosening under normal vibration
• Reduces wear between mating parts for longer life
• Can improve fit and alignment at mounting points
• Reduces noise or rattling caused by loose hardware

• Disconnect power before servicing the appliance and follow all safety instructions
• Replace only with the same style and size washer for proper fit
• Inspect mating surfaces and fasteners; replace any damaged hardware
• Tighten fasteners to the manufacturer's recommended torque; avoid overtightening

This replacement cover restores the appliance's finished appearance and protects internal components from dust and debris. It's a direct-fit exterior trim piece designed to replace a cracked, broken, or missing cover. What it does:

• Protects internal components and wiring from debris and accidental contact
• Restores the appliance's cosmetic appearance and helps maintain sealing
• Helps reduce dust buildup in the covered area
• Replaces damaged or missing trim that can expose sharp edges or hardware

• Disconnect power (unplug or switch off circuit breaker) before beginning work
• Basic hand tools may be required; follow for panel removal/replacement
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Replace with manufacturer-recommended fasteners

Size: 8-32 x .312 inch.

6 Pin 30 minute

Includes screws and wire connectors. For the complete terminal block kit use 279320.

The Terminal Block Screw Kit is an OEM replacement part for Whirlpool dryers. It is an assembly of screws used to securely fasten electrical terminal blocks within the dryer's control panel. Includes 3 screws and 3 nuts. Screw kit for dryer cord connector.

Over time, terminal block screws can become loose, corroded, or damaged due to regular use or electrical issues. If the terminal block screws are compromised, it can lead to electrical problems or even pose a safety hazard.

Symptoms of a faulty terminal block screw kit include:

• Intermittent power or failure of heating/fan elements to engage
• Repeated blowing of internal fuses or tripping of circuit breakers
• Hot terminal connections detected during operation
• Arc flashes, sparks, or smoke seen around the control panel area

This genuine Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

9 Pin 20 Minute

12 Pin 15 Minute

The Timing Cam is an OEM part for Whirlpool dryers. This is part of the dryer's timer mechanism and manages the sequence and duration of drying cycles.

Causes of a bad Timing Cam often stem from mechanical wear and tear over extended use, which can lead to the cam becoming worn down or damaged.

Symptoms of a bad Dryer Timing Cam include:

• The dryer not advancing through its cycles properly, leading to under or over-dried clothes.
• The dryer stopping mid-cycle or failing to start a cycle at all, indicating the cam isn't engaging the timer contacts correctly.
• Unusual noises from the timer area, which may suggest the cam is damaged or misaligned.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

3 pin 60 minute
