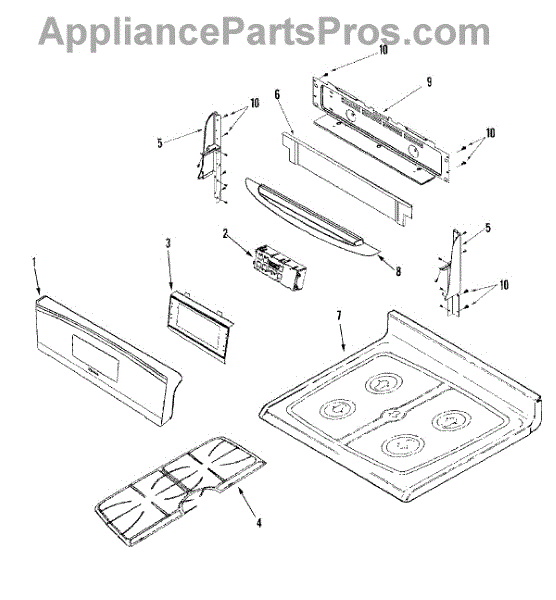

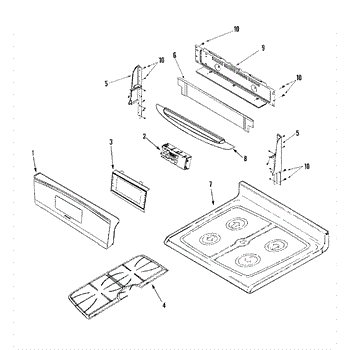

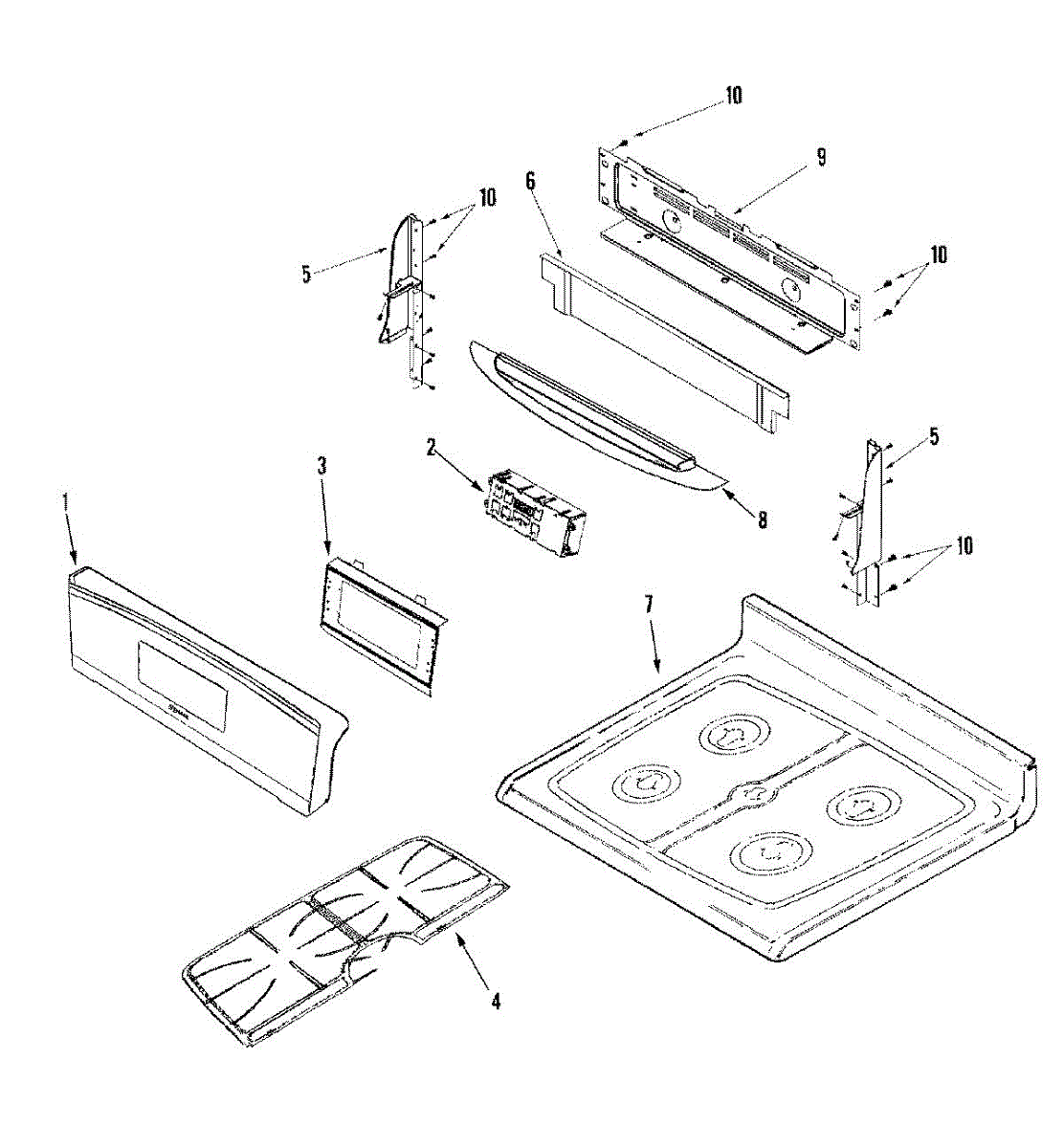

Parts for Jenn-Air JDR8880RDS: 03 - Control Panel / Top Assembly Parts

This part is a range oven control board. It is responsible for monitoring the temperature of the oven, as well as controlling the bake and light functionalities. The user sets their preferences via the control panel, which sends a signal to the control board. The board then adjusts the temperature as needed and handles other functionality. Although the range oven control board does not contain moving parts, it will suffer from wear and tear. This is particularly true of exposure to moisture and heat. Over time, the board can degrade, leading to problems with operation. To replace the control board, unplug the oven. Remove the protective cowl from the top of the oven, then locate the control board with the display. Remove the mounting screws and unplug the wiring connector. Install the new board by following these steps in reverse.This oven control board is a genuine OEM part and it's sold separately. It is compatible with Whirlpool and Jenn-Air ovens.

Color: Black. Dual.

The Grate Foot is an OEM part for Whirlpool gas ranges. It attaches to the bottom of the cooktop grates, providing stability and preventing the grates from scratching the cooktop surface.

Common causes of a faulty grate foot include constant exposure to high temperatures, wear from frequent removal and cleaning of the grates, or physical damage from accidental impacts.

Symptoms of a bad grate foot include:

• The grates wobbling or not sitting level on the cooktop
• Scratches or damage appearing on the cooktop surface
• The grates making noise or shifting during use
• Visible wear, cracking, or missing pieces on the grate foot

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This OEM Replacement Part is an Adhesive designed for use in high-temperature areas of your Whirlpool appliances. Approximately 7.5 inches long, this white adhesive is suitable for securing parts such as grate feet, gaskets, and felt seals. It is especially useful, particularly in hot zones like a cooktop. The heat-resistant properties of this adhesive ensure that the bond integrity remains uncompromised even under high-temperature conditions.

Contained in a 3oz bottle, this adhesive forms a resilient bond between various components. It is commonly used in conjunction with gaskets, felt seals, and rubber feet. The RTV high temp silicone adhesive/sealant guarantees the safety and longevity of your appliance by ensuring a secure fit of parts exposed to high heat.

Black. Right hand side

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
