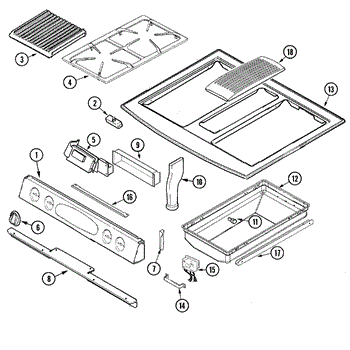

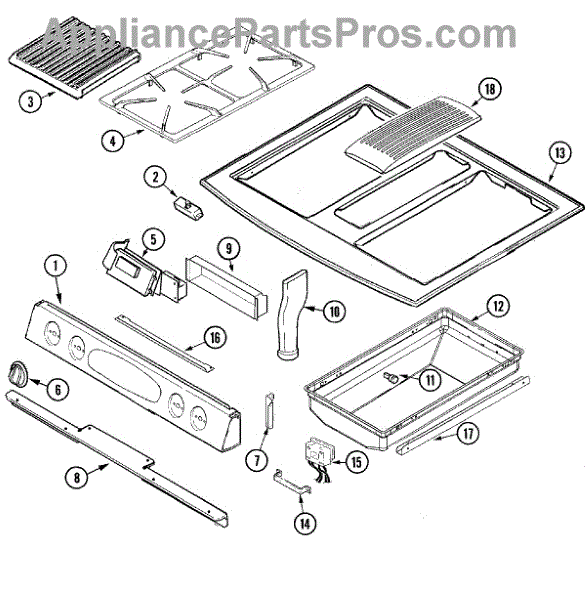

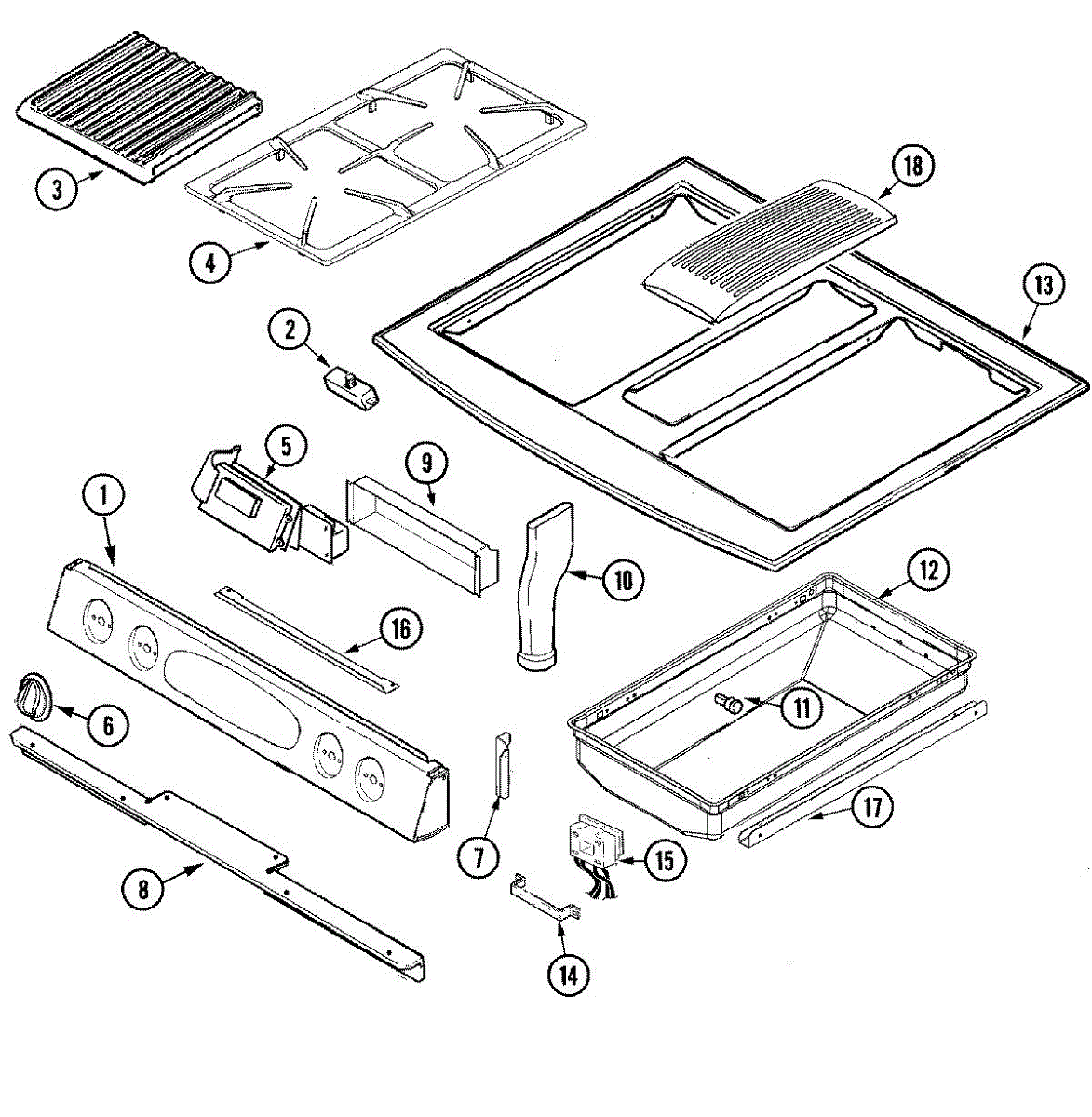

Parts for Jenn-Air JDS9860AAB: 03 - Control Panel / Top Assembly Parts

Replace a cracked or unresponsive front panel with this black control panel assembly. It restores the appliance's user interface so you can select cooking modes, set temperatures, and operate timers with consistent, reliable button input.

• Provides the front interface for selecting functions and temperatures
• Aligns and supports the keypad area and interfaces with the electronic control on applicable models
• Transmits button presses to the control so cooking functions can start
• Common symptoms: non-responsive or intermittent keys, stuck/shorted keypad errors, or a cracked/damaged panel

• Disconnect power at the breaker or unplug before servicing; allow the unit to cool
• Remove necessary trim and mounting screws; support the panel to avoid straining wires
• Transfer the existing electronic control/clock and any brackets or hardware from the old panel as required
• Seat ribbon/flex connectors fully and handle carefully; do not overtighten fasteners

A replacement SN switch that restores the appliance's control function so selections and features respond reliably. Installs in the original switch location to return consistent on/off or selector operation after a switch failure. What it does:

• Opens and closes the electrical circuit to control the associated function or component.
• Replaces a worn or failed switch to stop intermittent operation or loss of control.
• Common symptoms it can fix: appliance not responding to a selector/setting, intermittent power to a component, or a component that won't turn on.
• Functions as the user-facing or internal control switch depending on the model application.

• Disconnect power (unplug appliance or shut off breaker) before starting any repair.
• May require removing an access or control panel; use basic hand tools and note wire locations before disconnecting.

Color: Black.

This replacement grate cartridge secures and centers a cooktop burner grate so cookware sits level and burners perform as intended. Durable design restores stable support for pots and pans on compatible gas ranges. What it does:

• Replaces a worn or broken grate cartridge that lets the grate rock or sit unevenly
• Helps keep the burner grate properly aligned over the burner for even cooking
• Prevents cookware from wobbling or shifting during use
• Restores proper fit where the grate attaches to the cooktop surface

• One grate assembly (cartridge) as shown

• Turn off and disconnect power and gas supply; allow the range to cool completely before servicing
• Remove the burner grate and lift out the old cartridge; align tabs and snap or seat the new cartridge into place
• Handle enamel-coated grates carefully to avoid chipping; use soft padding if needed during installation

Color: Black. For biscuit order 98008169. For white order WP98008544.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

A genuine replacement mounting screw that secures appliance panels and components to restore proper fit and reduce vibration. Use this screw to replace missing or damaged fasteners for a secure, rattle-free repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces rattling or vibration
• Prevents parts from coming loose during operation
• Works wherever the OEM screw W10828565 is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Install only where the OEM screw is specified; do not overtighten
• Replace any stripped or damaged screws with this exact part

A genuine replacement mounting screw that secures appliance panels and components to restore proper fit and reduce vibration. Use this screw to replace missing or damaged fasteners for a secure, rattle-free repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces rattling or vibration
• Prevents parts from coming loose during operation
• Works wherever the OEM screw W10828565 is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Install only where the OEM screw is specified; do not overtighten
• Replace any stripped or damaged screws with this exact part
