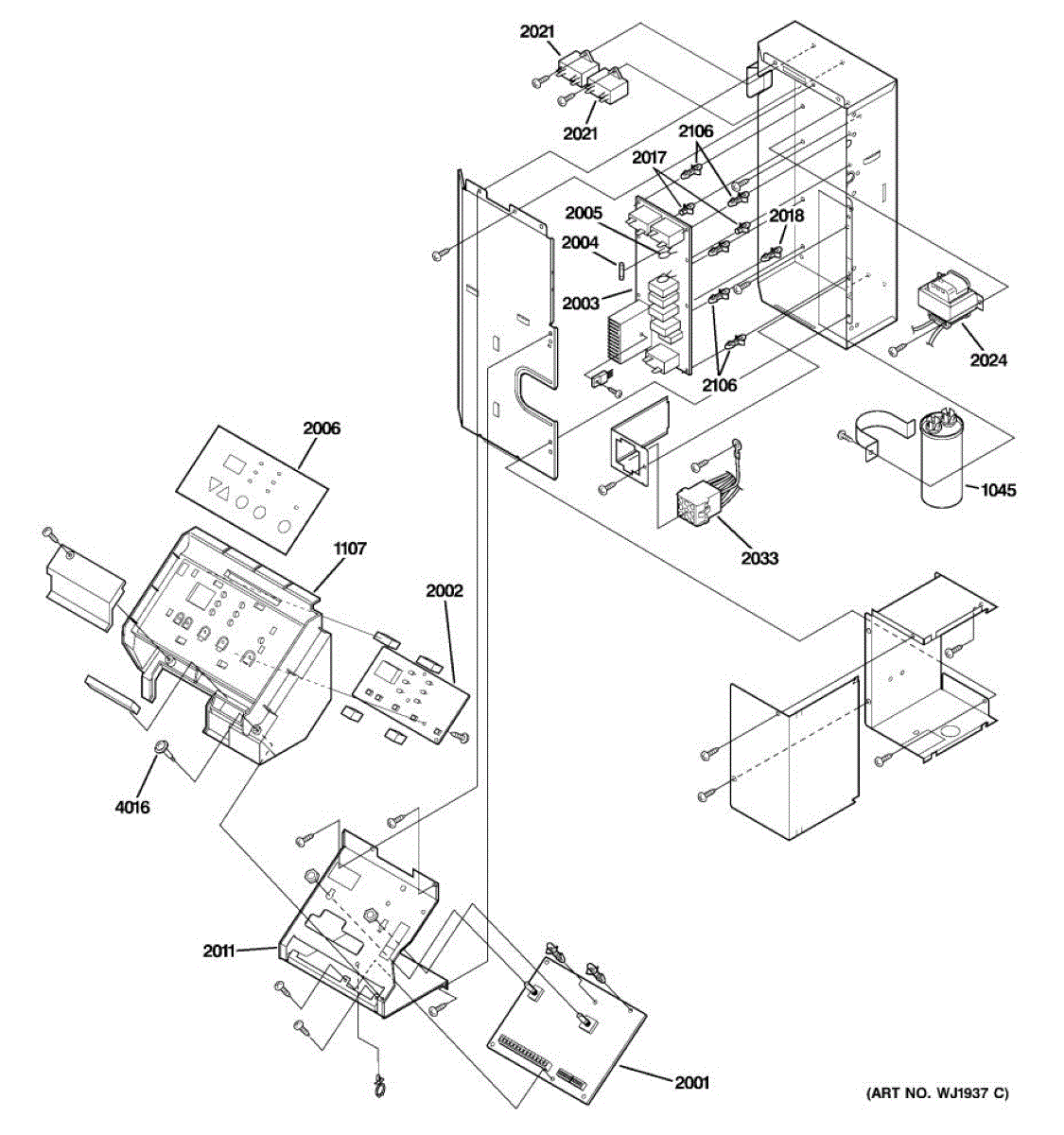

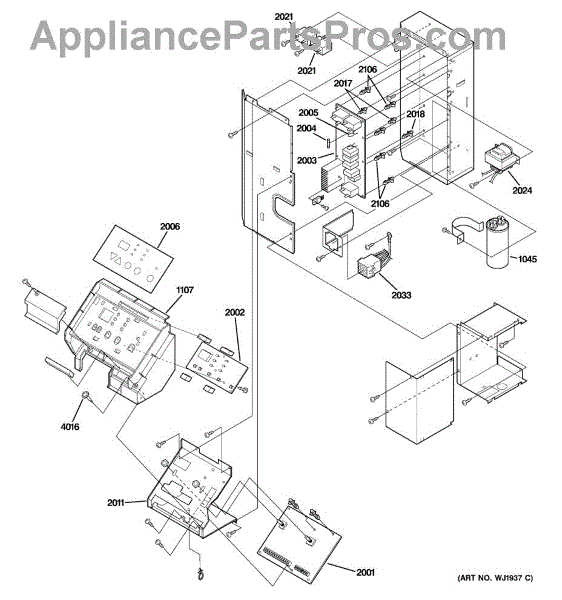

Parts for Ge AZ29E07DACM1: 03 - Control Parts

This run capacitor helps the appliance motor keep steady torque during operation for reliable performance and smoother starts. It replaces a worn or failed capacitor to restore normal motor function and reduce abnormal noise or cycling. What it does:

• Provides continuous phase shift and stored energy to help the motor run efficiently
• Common symptom: motor hums but won't start or has weak starting torque
• Common symptom: motor runs intermittently, stalls, or cycles on and off
• Common symptom: unusually noisy motor operation or reduced performance

• Disconnect power to the appliance before accessing or replacing the capacitor
• Capacitors can hold charge—discharge safely
• Match terminal types and mounting style to the original part for proper fit

This main control PWB is the appliance's primary electronic control board that manages user inputs and cycle functions, restoring normal control when a faulty board causes operational issues. What it does:

• Receives user commands and runs appliance control algorithms
• Powers and updates the touchpad/display and indicator lights
• Manages timing, relay switching, and communication with sensors
• Common symptom: appliance won't start, has a blank or erratic display, or shows control-related error codes
• Helps correct unresponsive buttons, intermittent operation, or unexpected cycle behavior when board failure is confirmed

• Disconnect power (unplug or shut off breaker) before accessing the control board
• Handle the PWB by its edges and avoid static discharge; use ESD protection if available
• Refer to the appliance wiring diagram and service manual for proper connector placement and safety procedures

This part is an air conditioner fuse. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace a faulty or blown fuse in multiple different models and brands of air conditioning units. Fuses are essential for preventing surges in power or high levels of current flow from reaching the appliance and damaging it. This part requires some knowledge of electrical circuits to replace. Ensure the air conditioning unit is completely disconnected from its power source before working on the appliance. Always make sure to take appropriate safety precautions when attempting any type of replacements. Proper tools are needed to install this part. For more accurate installation information on how and where to install this replacement fuse, refer to the original manufacturer diagrams or owner's manual. As an authentic replacement part, this fuse is suitable for use on various models of air conditioning units manufactured by General Electric and Hotpoint. Please note that this is a genuine part made of high-quality, non-corrosive, durable materials and is sold individually.

This control sheet is a thin insulating/ protective console panel that helps shield the appliance control assembly from heat, moisture, and debris for reliable keypad and electronics performance. It restores proper protection behind the control area. What it does:

• Provides a protective barrier behind the console to help prevent heat and moisture damage to control electronics
• Helps keep dust and debris away from the control board and keypad assembly
• Maintains the original spacing/insulation between the control and inner cabinet components
• Helps reduce the chance of shorts or corrosion caused by stray moisture

• One control sheet/console insulation panel

• Recommended for repair by someone comfortable working with appliance control panels
• Disconnect power (unplug or shut off breaker) before removing the console or accessing the control area
• Handle the control sheet gently to avoid tearing; reassemble fasteners in their original positions

A fan motor run capacitor that helps the appliance fan start and maintain smooth operation. Replacing a failed capacitor restores proper airflow and can help recover normal cooling performance when the original part wears out. What it does:

• Provides the phase shift and stored energy needed for the fan motor to start and run reliably.
• Common symptoms of a failing capacitor: fan not starting, fan humming or running intermittently, reduced airflow, or poor cooling performance.
• Used where a dedicated run capacitor is required for the appliance fan motor.
• Does not include installation tools or wiring harnesses.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Capacitors can hold a charge; discharge safely before touching terminals or disconnecting wires.
• Note terminal wiring positions (take a photo) to ensure correct reconnection.

This connector assembly secures an appliance's wiring harness to internal components, restoring reliable electrical connections and helping correct intermittent power or control failures. Use when harness plugs are damaged, loose, or corroded. What it does:

• Provides a stable, keyed plug connection between the wiring harness and the appliance component
• Replaces cracked, melted, or loose connector housings that cause intermittent operation
• Helps restore power/signals to controls, switches, or sensors affected by a bad connector
• Prevents arcing and poor contact that can lead to erratic behavior

• Always disconnect power at the breaker or unplug the appliance before servicing
• Verify connector orientation and fully seat mating plugs until they click
• Inspect wiring and terminals for damage; replace wiring or terminals if corrosion or melting is present
