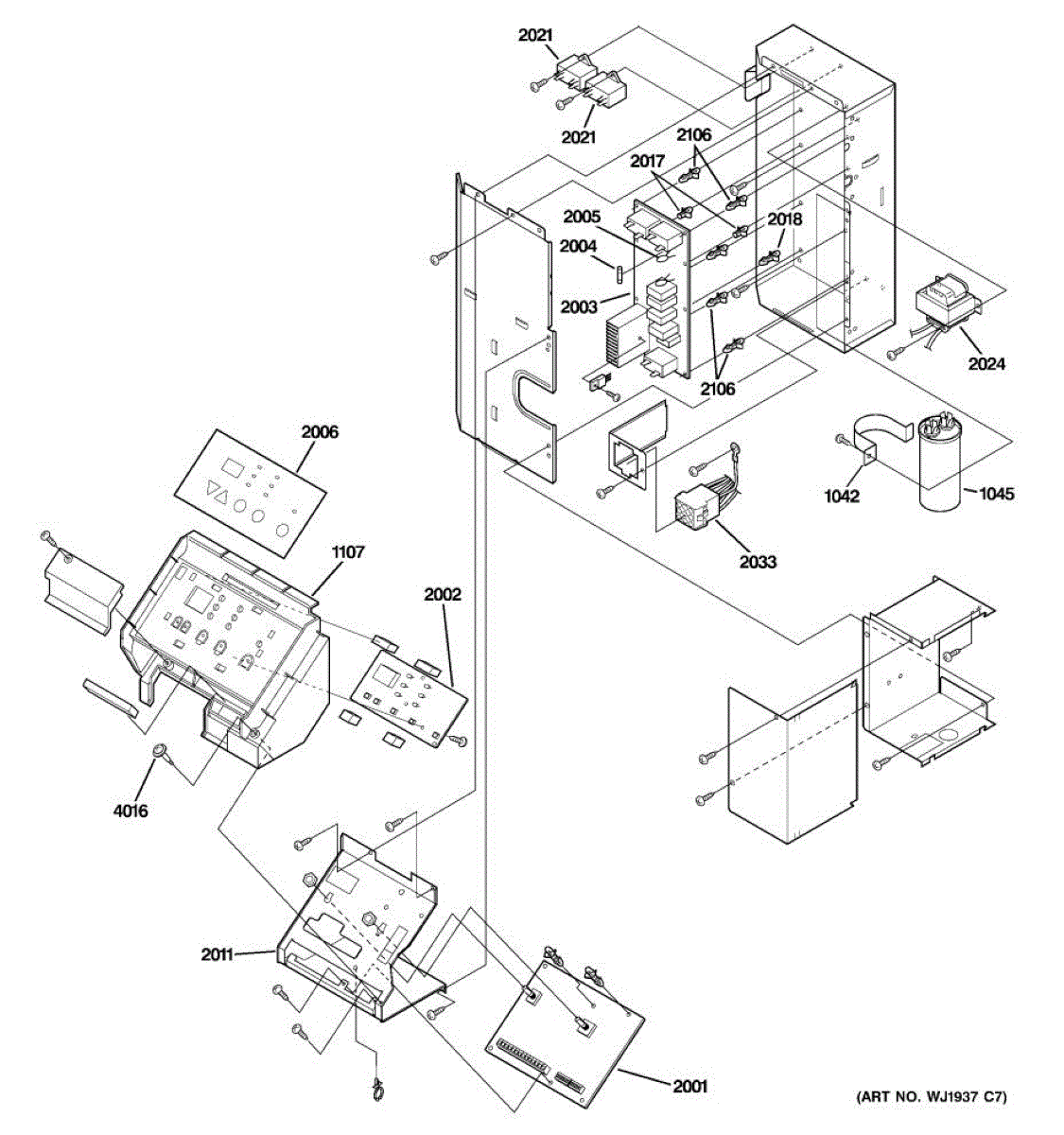

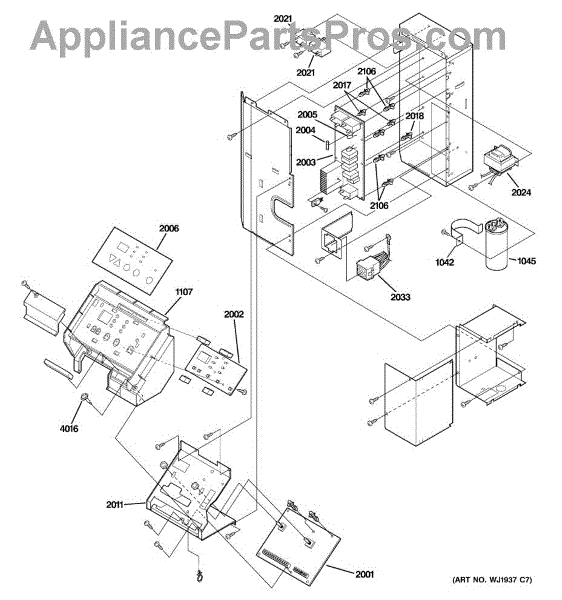

Parts for Ge AZ39H15EABM1: 03 - Control Parts

Touch pad control panel for air conditioner units. Installs on the front control base. Replace if cracked, unresponsive, worn, or buttons are damaged.

This main control PWB is the appliance's primary electronic control board that manages user inputs and cycle functions, restoring normal control when a faulty board causes operational issues. What it does:

• Receives user commands and runs appliance control algorithms
• Powers and updates the touchpad/display and indicator lights
• Manages timing, relay switching, and communication with sensors
• Common symptom: appliance won't start, has a blank or erratic display, or shows control-related error codes
• Helps correct unresponsive buttons, intermittent operation, or unexpected cycle behavior when board failure is confirmed

• Disconnect power (unplug or shut off breaker) before accessing the control board
• Handle the PWB by its edges and avoid static discharge; use ESD protection if available
• Refer to the appliance wiring diagram and service manual for proper connector placement and safety procedures

This control board manages the operation of zone-controlled heating and cooling units like mini-splits or zone HVAC systems. It regulates temperature, fan speed, and operational modes for individual climate zones. Replace this board if your zone unit won't respond to controls, operates erratically, or fails to maintain set temperatures.

Thin insulating panel that shields the control assembly from heat, moisture, and debris. Replace if cracked, torn, or missing to restore protection.

Replacement spacer for room air conditioners. Maintains proper spacing between components. Order a new spacer if yours is cracked, broken, or missing.

Spacer component for room air conditioners. Installs between internal parts to maintain proper clearance. Replace if cracked, broken, or missing.

Fix an air conditioner that won't power on or has no display with this transformer. Common repair for units with electrical failure. Direct fit part.

Replace the spacer in your room air conditioner. This small part maintains proper spacing between components. Order a new spacer if yours is cracked or missing.
