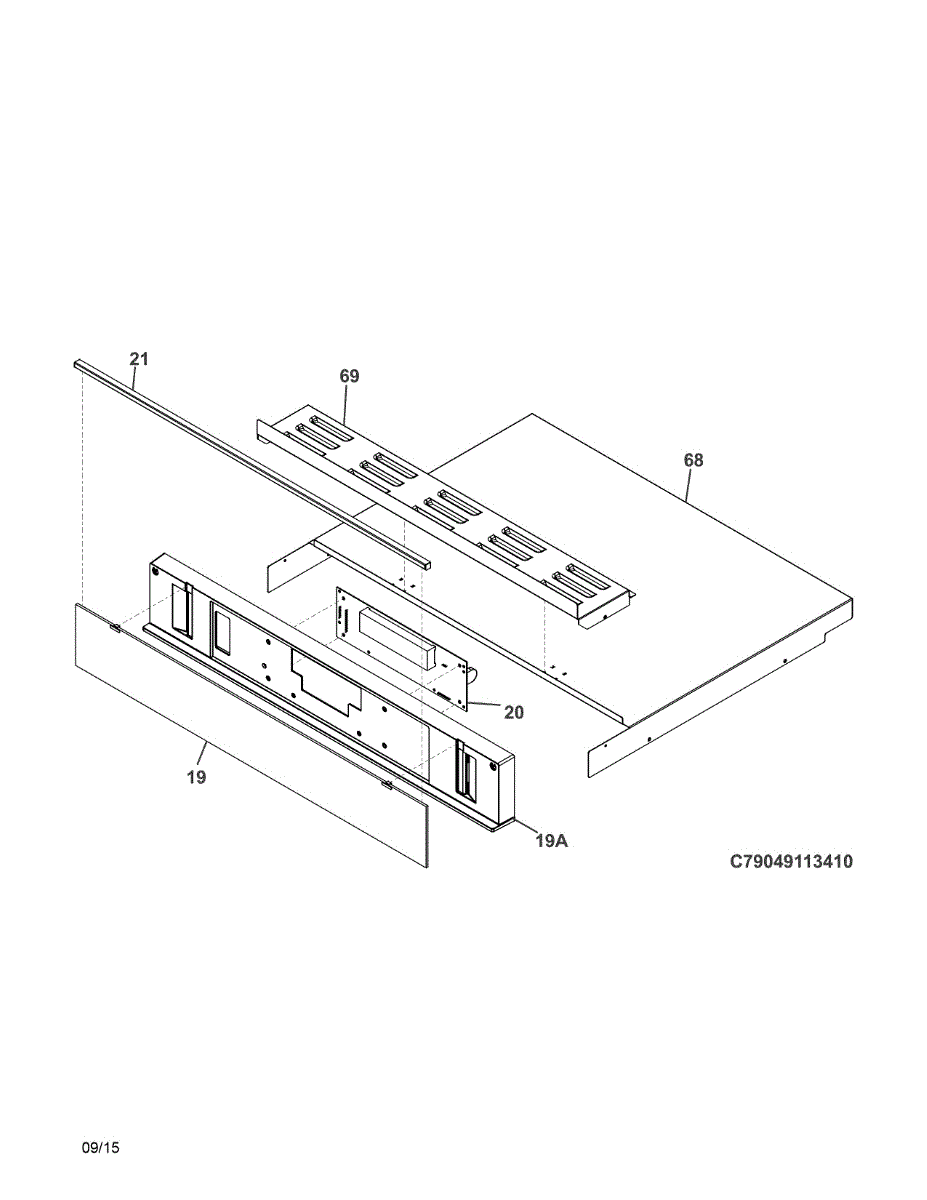

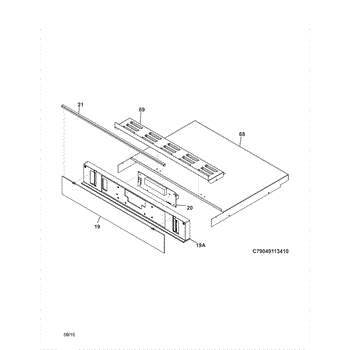

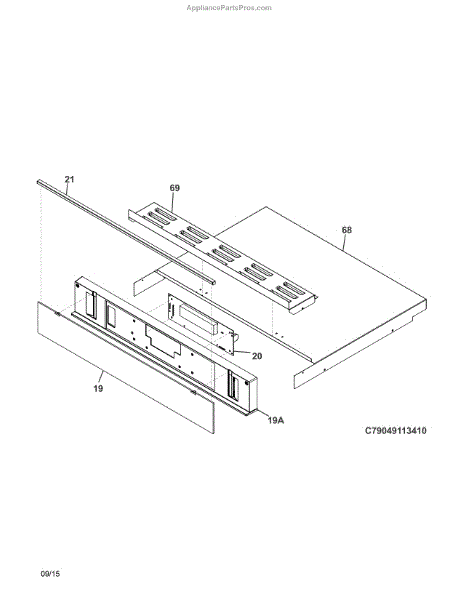

Parts for Kenmore 790.49113410 (79049113410, 790 49113410): Control Parts

If your wall oven display is blank or unresponsive, this electronic control board manages bake, broil, and timer functions. Moderately challenging repair.

Replacement trim piece for wall ovens. Installs around the oven cavity or control panel to provide a finished look. Order if your trim is cracked or damaged.

This wiring harness is a direct-replacement electrical connector assembly that restores reliable electrical connections between appliance components for proper operation and control. It helps resolve intermittent power, communication, or component failures caused by damaged wiring. What it does:

• Routes power and signals between the control board and connected components using molded connectors
• Replaces damaged, corroded, or frayed wiring that can cause intermittent operation or component failure
• Helps eliminate loose-connection symptoms such as flickering lights, non-responsive controls, or intermittent function
• Maintains proper connector fit and wire routing to prevent shorting and arcing

• Disconnect power to the appliance before starting any repair
• Match connector shapes and terminal counts; do not force connectors
• Route harness to follow original clips and channels to avoid heat or pinch points

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
