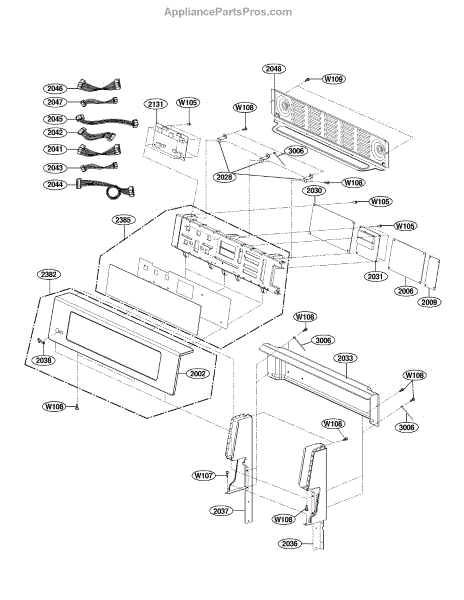

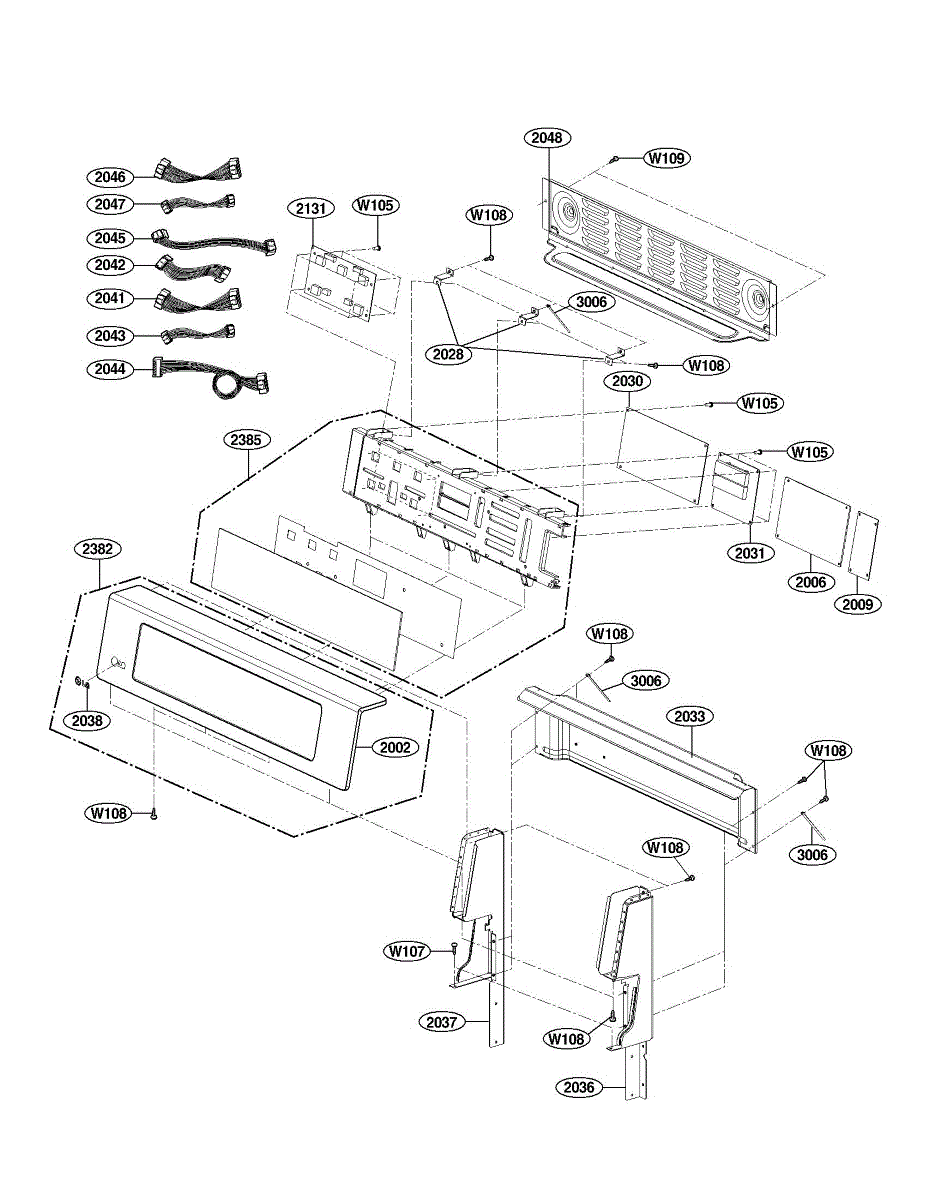

Parts for Lg LDE3015SB: Controller Parts

This power control board is the appliance's main power distribution and control module, restoring proper electrical control so the unit can start and run reliably. It replaces a failed or damaged control board to return normal operation. What it does

• Routes power and control signals to internal components so motors, valves and other systems operate.
• Receives commands from the user interface and provides the control outputs that run cycles and functions — can address unresponsive controls or no-start conditions.
• Regulates and distributes voltage across subsystems to prevent inconsistent or intermittent operation.
• Interfaces with sensors and safety switches to manage cycle behavior and help prevent unsafe operation.

• One power control board.

• Disconnect all power before servicing to avoid shock; verify power is off at the breaker or unplug the appliance.
• Handle the board by its edges and use anti-static precautions to avoid damage to electronic components.
• Note connector orientation and mounting screw locations during removal; transfer any mounting brackets or standoffs to the new board if required.
• Test the appliance after installation and follow the manufacturer's service manual for diagnostic steps.

This Barrier is a protective panel designed to shield internal components and help maintain proper airflow and separation inside the appliance. It reduces risk of component damage and keeps internal areas cleaner for reliable operation. What it does

• Protects delicate internal parts from physical contact, debris, and incidental impact
• Helps maintain intended airflow paths to support proper component cooling or ventilation
• Prevents contact between moving parts and wiring or sensors
• Can reduce dust buildup in sensitive areas that could affect performance

• One Barrier protective panel

• Disconnect power and, for appliances with water supply, shut off water before starting work
• Handle the panel carefully to avoid bending or damaging mounting tabs
• Use only OEM-recommended fasteners and placement;

This single wire harness connects controls and components to deliver power and signals so affected functions run correctly. It replaces a damaged harness to restore reliable electrical connections and consistent operation. What it does:

• Transfers power and control signals between the control board and individual components
• Restores missing or intermittent power to components when a harness is damaged
• Prevents shorts and poor connections caused by frayed wires or broken terminals
• Typical symptom: appliance or specific functions do not power up, run intermittently, or behave erratically

• Disconnect power to the appliance before starting any work.
• Match connector shapes and wire colors; seat each connector fully until it clicks.
• Route the harness following existing clips and retainers to avoid chafing or pinching.
• If terminals are corroded or connectors are damaged, replace the harness rather than attempting repairs.

This single wiring harness connects electrical components to restore reliable power and signal routing within the appliance. It replaces damaged or burnt harnesses to help return normal operation and prevent intermittent faults. What it does

• Routes power and signal between control boards, sensors, and motors for proper operation
• Replaces frayed or melted wiring that can cause intermittent function or component failures
• Helps resolve symptoms like no power to a component, intermittent operation, or error codes related to open circuits
• Restores factory wiring organization and secure connector fit for reliable connections

• One wiring harness assembly

• Disconnect power before servicing to avoid shock or damage
• Verify connector orientation and fully seat all plugs; do not force connectors
• Replace only with the exact harness to maintain correct wire lengths and connector types

This rear cover is the exterior cabinet panel that protects the appliance's internal components from dust, debris and accidental contact. It restores the appliance's outer protection and helps maintain safe operation. What it does

• Shields motors, wiring and internal components from debris and accidental contact
• Restores the appliance's sealed outer cabinet to help prevent dust and moisture intrusion
• Stops rattles or vibration caused by cracked or missing rear panel mounting
• Improves safety by covering sharp or moving internal parts

• Unplug the appliance or shut off power at the breaker before starting
• Remove any screws or fasteners securing the old rear cover; save hardware
• Support the appliance cabinet while aligning the new panel, then fasten securely
• Handle edges carefully; inspect surrounding seals and mounting clips and replace if damaged

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.
